WIDIA 2750996 7303 Hand Tap, 3/8-16 Thread, Tapered Chamfer, 4 Flutes, Uncoated, HSS

WIDIA 2750996 GRE 11612

WIDIA 2750996 7303 Hand Tap, 3/8-16 Thread, Tapered Chamfer, 4 Flutes, Uncoated, HSS

WIDIA 2750996 7303 Hand Tap, 3/8-16 Thread, Tapered Chamfer, 4 Flutes, Uncoated, HSS

  • Brand: WIDIA
  • Mfr# : 2750996
  • Item # : GRE 11612
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WIDIA_2751071_Catalog.pdf

FEATURES

  • Tapping through blind hole
  • Ground Thread

DESCRIPTION

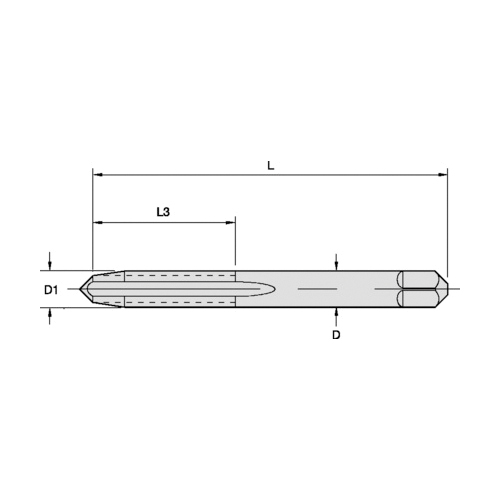

WIDIA Hand Tap, Series: 7303, Measurement System: Imperial, UNC Thread Standard, 3/8-16 Thread, Tapered Chamfer, 4 Flutes, HSS, Uncoated, Class of Fit: 2B, 1-1/4 in Thread Length, 3 in Overall Length, 0.318 in Shank Diameter

SPECIFICATIONS

Series      :    7303
Measurement System      :    Imperial
Thread Standard      :    UNC
Thread Size      :    3/8-16
Chamfer Type      :    Tapered
Number of Flutes      :    4
Material      :    HSS
Finish/Coating      :    Uncoated
Class of Fit      :    2B
Thread Length      :    1-1/4 in
Overall Length      :    3 in
Shank Diameter      :    0.318 in

APPLICATION INFO

Standard/Approvals      :    ANSI Specified
Application      :    For machining and maintenance applications
Country of Origin      :    US
