Parker® 10643-4-4 43 Series Crimp Style Straight Hydraulic Hose Fitting, 1/4 in Hose, 7/16-20 Connection, 37 deg Female JIC Swivel End Style, 1.19 in Cutoff Allowance, Steel

Parker® 10643-4-4 PRK 10643-4-4

Parker® 10643-4-4 43 Series Crimp Style Straight Hydraulic Hose Fitting, 1/4 in Hose, 7/16-20 Connection, 37 deg Female JIC Swivel End Style, 1.19 in Cutoff Allowance, Steel

Parker® 10643-4-4 43 Series Crimp Style Straight Hydraulic Hose Fitting, 1/4 in Hose, 7/16-20 Connection, 37 deg Female JIC Swivel End Style, 1.19 in Cutoff Allowance, Steel

  • Brand: Parker®
  • Mfr# : 10643-4-4
  • Item # : PRK 10643-4-4
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • Easy push-on force
  • Imperial hex
  • Wide range of end configurations
  • One-piece reduces complexity and leakage path
  • No-skive technology offers easy, efficient and safe production processes
  • For petroleum base hydraulic fluids, lubricating oils and phosphate ester base hydraulic fluids
  • Compatible with 301LT, 302, 304, 351TC/ST, 422, 424, 426, 431, 436, 451TC/ST, 471TC/ST, 472TC, 482TC/ST, 722ST, 787TC/ST, 797TC/ST, 881 hoses

DESCRIPTION

Parker® 43 series fittings are cost effective, permanent, bite the wire style fittings made for easy and quick assembly using our family of parkrimp crimpers. The fitting series when coupled with Parker® no-skive hose provides convenience and shorter assembly time. The 43 series fittings have chromium-6 free plating and are compatible with high temperature, low temperature, hydraulic industry standard, constant working pressure, phosphate ester, suction and return hoses. The 43 series fittings are available from 1/4 to 2 in in a wide variety of end configurations.

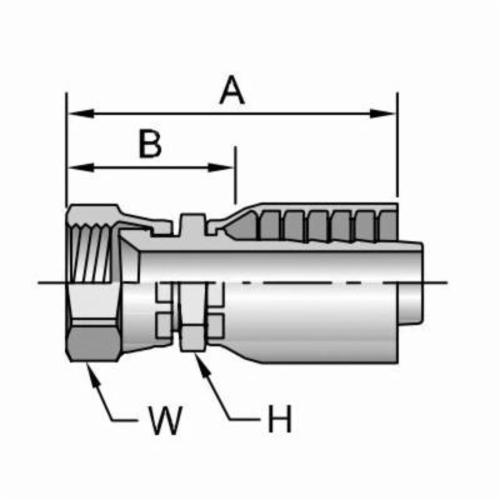

Parker® Hydraulic Hose Fitting, Crimp Style Straight, Series: 43 Series, 1/4 in Hose, 7/16-20, 37 deg Female JIC Swivel, 9/16 x 9/16 in Hex, 1.94 in Length, 1.19 in Cutoff Allowance, Steel

SPECIFICATIONS

Type      :    Crimp Style Straight
Series      :    43 Series
Hose Size      :    1/4 in
Connection Size      :    7/16-20
End Style      :    37 deg Female JIC Swivel
Hex Size      :    9/16 x 9/16 in
Length      :    1.94 in
Cutoff Allowance      :    1.19 in
Material      :    Steel

APPLICATION INFO

Application      :    Transportation, RV and Bus, Military, Construction, Agriculture, Grounds and Building Maintenance, Forestry, Railroad, Utility Equipment, Personnel Lift Equipment, Machine Tool, Oil Field Service, Waste and Refuse, Material Handling, Marine, Paving and Road Maintenance, Ground Support Equipment, Industrial and Mining
Country of Origin      :    US
