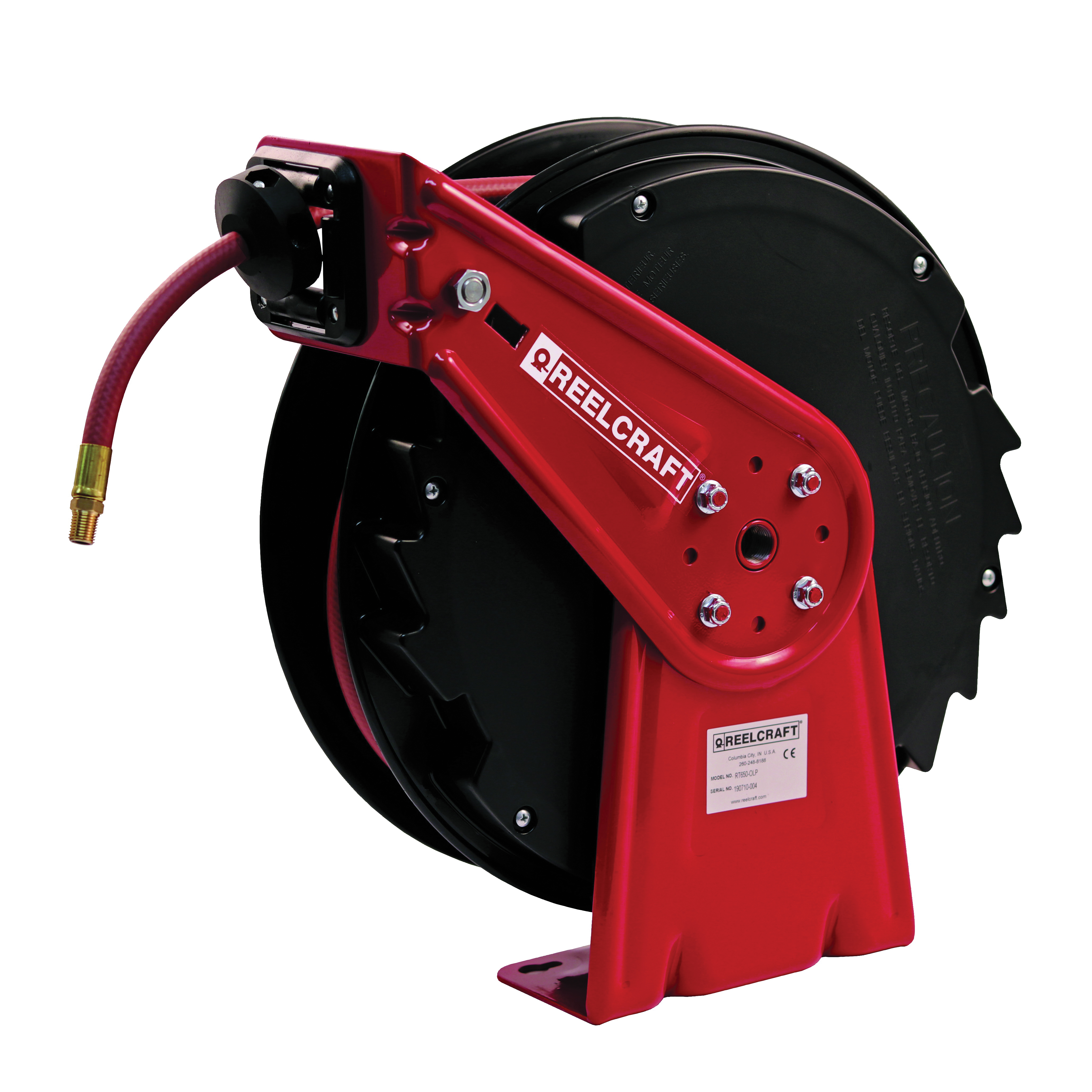

Reelcraft® RT605-OLP Low Pressure Medium Duty Hose Reel, 3/8 in ID x 3/5 in OD x 50 ft L Hose, 300 psi Pressure, 16-1/2 in Dia x 2-1/4 in W Reel, Domestic

Reelcraft® RT605-OLP REE RT605-OLP

Reelcraft® RT605-OLP Low Pressure Medium Duty Hose Reel, 3/8 in ID x 3/5 in OD x 50 ft L Hose, 300 psi Pressure, 16-1/2 in Dia x 2-1/4 in W Reel, Domestic

Reelcraft® RT605-OLP Low Pressure Medium Duty Hose Reel, 3/8 in ID x 3/5 in OD x 50 ft L Hose, 300 psi Pressure, 16-1/2 in Dia x 2-1/4 in W Reel, Domestic

  • Brand: Reelcraft®
  • Mfr# : RT605-OLP
  • Item # : REE RT605-OLP
  • UPC #: 699567000600
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • Nylon material with excellent resistance to impact fracture even at low temperatures below 32 deg F
  • Lighter weight design
  • More open design around the swivel and hose opening allows more space for removing and attaching hose to the reel
  • Steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
  • Full flow stress free swivel design - full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
  • Hose is plumbed into the base to eliminate the risk of undue stress on the swivel
  • Declutching arbor eliminates reverse spring winding and torsions latch spring is virtually unbreakable
  • High quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
  • Individually powder coated components along with the composite spool offers the maximum protection from premature corrosion
  • 1/2 in female NPTF inlet
  • 150 deg F maximum temperature rating

DESCRIPTION

The RT series is an economical choice for a medium duty, lighter weight, spring-driven hose reel for applications that are less demanding, yet require a product that can withstand industrial and commercial use. The industrial grade drive spring is protected from the environment in a polypropylene spool for longer service life. Guide arm adjusts to seven positions.

Reelcraft® Hose Reel, Low Pressure Medium Duty, Series: RT Series, 3/8 in ID x 3/5 in OD x 50 ft L Hose, 300 psi Pressure, 16-1/2 in Reel Diameter, 2-1/4 in Reel Width, Retractable Spring Drive, Bench/Ceiling/Floor/Truck/Wall Mounting, Steel/Zinc Dichromate Swivel, Buna-N Seal, 17-7/8 in H x 6-1/4 in W x 6-1/4 in D, Reinforced Stainless Steel, Powder Coated, Black/Red, Domestic

SPECIFICATIONS

Type      :    Low Pressure Medium Duty
Series      :    RT Series
Hose Capacity      :    3/8 in ID x 3/5 in OD x 50 ft L
Pressure Rating      :    300 psi
Reel Diameter      :    16-1/2 in
Reel Width      :    2-1/4 in
Drive Type      :    Retractable Spring
Mounting Type      :    Bench/Ceiling/Floor/Truck/Wall
Swivel Material      :    Steel/Zinc Dichromate
Seal Type      :    Buna-N
Dimensions      :    17-7/8 in H x 6-1/4 in W x 6-1/4 in D
Material      :    Reinforced Stainless Steel
Finish      :    Powder Coated
Color      :    Black/Red
Domestic/Import      :    Domestic

APPLICATION INFO

Standard/Approvals      :    PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Application      :    Maintenance Shops, Garden Shops, Woodworking, Light Industrial, Home Workshops, Machine Shops, Assembly Lines, Garages and Chip Blowing
Country of Origin      :    US
