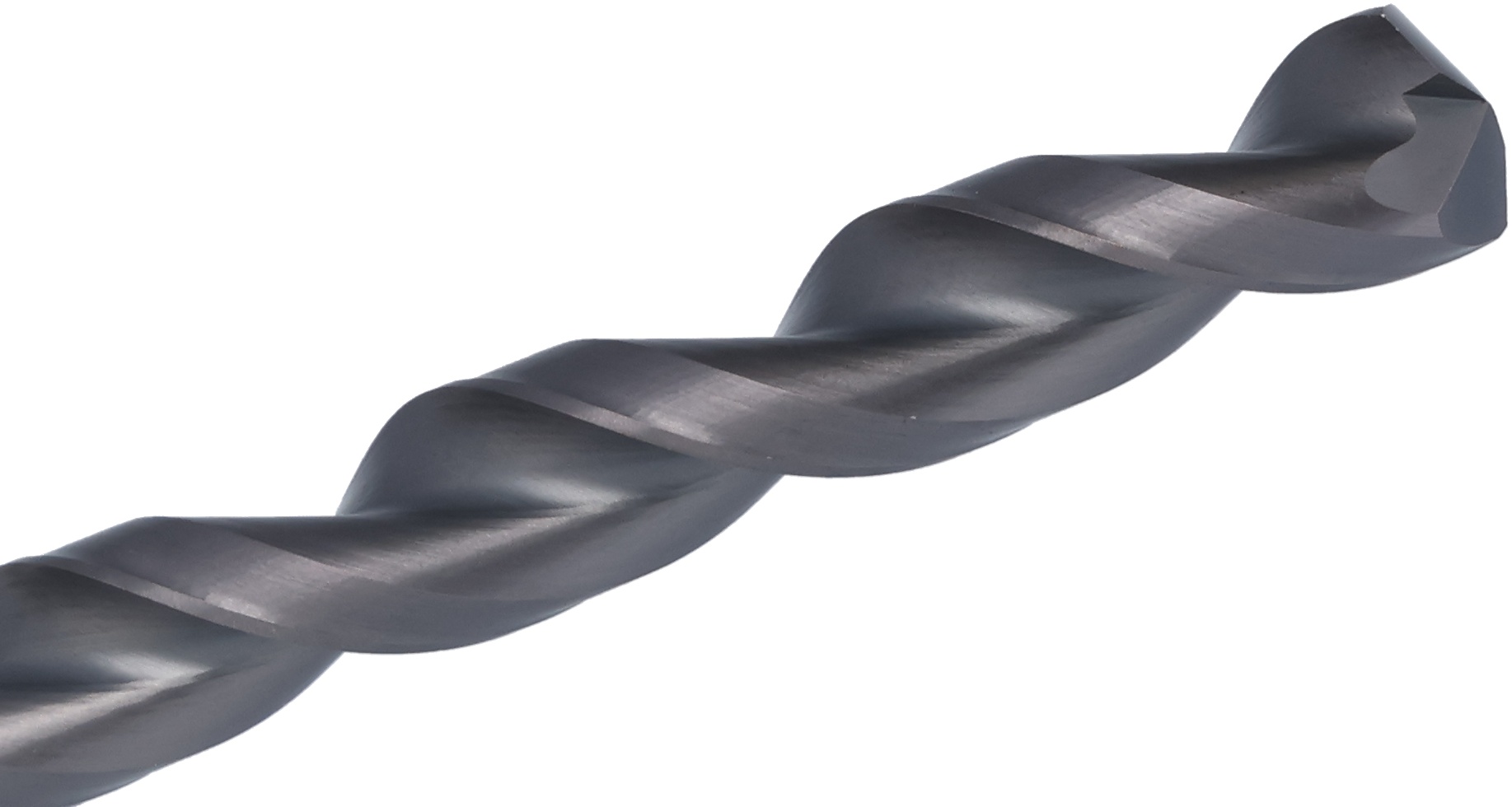

Chicago-Latrobe® 42119 150WLP-TC Jobber Length Drill Bit, #49 Drill - Wire, 0.073 in Drill - Decimal Inch, 135 deg Point, HSS, TiCN
Chicago-Latrobe® 42119 150WLP-TC Jobber Length Drill Bit, #49 Drill - Wire, 0.073 in Drill - Decimal Inch, 135 deg Point, HSS, TiCN
Chicago-Latrobe® 42119 150WLP-TC Jobber Length Drill Bit, #49 Drill - Wire, 0.073 in Drill - Decimal Inch, 135 deg Point, HSS, TiCN
- Brand: Chicago-Latrobe®
- Mfr# : 42119
- Item # : GRE 42119
- UPC #: 662355421192
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Combination of parabolic flute form and point design produces tighter hole tolerances, heightened chip breaking action and improved coolant flow for deep hole drilling
- Wide flute spacing disperses chips away from the cutting edge more rapidly than conventional parabolic drills, resulting in tighter, more manageable chips and less chip packing
- 135 deg modified notch point is self-centering, provides greater stability, prevents walking and lessens work hardening
- Titanium carbonitride (TiCN) coating increases cutting surface hardness, making the tool highly resistant to abrasive wear
DESCRIPTION
Chicago-Latrobe® Jobber Length Drill Bit, Series: 150WLP-TC, Imperial, #49 Drill - Wire, 0.073 in Drill - Decimal Inch, 2 in Overall Length, 7XD Cutting Depth, 2 Flutes, Wide Land Parabolic Flute, 1 in Flute Length, 0.073 in Dia x 1 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, TiCN, Applicable Materials: Alloy Steel, Carbon Steel, Free Machining Steel and Tool Steel
SPECIFICATIONS
| Series | : 150WLP-TC |
| Drill Diameter Measurement System | : Imperial |
| Drill Size - Wire | : #49 |
| Drill Size - Decimal Inch | : 0.073 in |
| Overall Length | : 2 in |
| Cutting Depth | : 7XD |
| Number of Flutes | : 2 |
| Flute Type | : Wide Land Parabolic |
| Flute Length | : 1 in |
| Shank Size | : 0.073 in Dia x 1 in L |
| Shank Type | : Straight |
| Point Angle | : 135 deg |
| Point Type | : Split |
| Cutting Direction | : Right Hand |
| Cutting Edge Material | : HSS |
| Through Coolant (Yes/No) | : No |
| Material | : HSS |
| Finish | : TiCN |
| Applicable Materials | : Alloy Steel, Carbon Steel, Free Machining Steel and Tool Steel |
APPLICATION INFO
| Country of Origin | : US |
