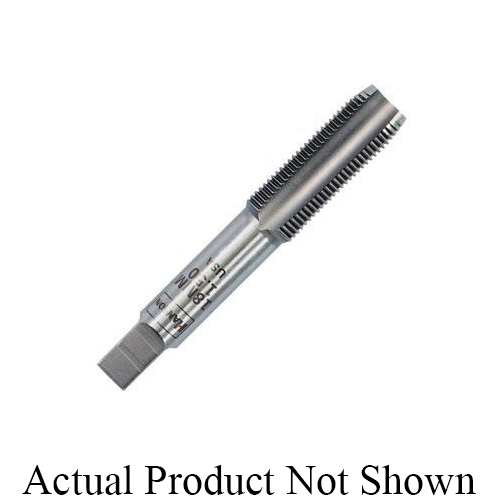

Irwin® Hanson® 1722ZR General Purpose Straight Flute Tap, Right Hand Cutting, M5x0.8 Thread, H2 Thread Limit, Plug Chamfer, (4) Flutes, Uncoated, High Carbon Steel
Irwin® Hanson® 1722ZR General Purpose Straight Flute Tap, Right Hand Cutting, M5x0.8 Thread, H2 Thread Limit, Plug Chamfer, (4) Flutes, Uncoated, High Carbon Steel
Irwin® Hanson® 1722ZR General Purpose Straight Flute Tap, Right Hand Cutting, M5x0.8 Thread, H2 Thread Limit, Plug Chamfer, (4) Flutes, Uncoated, High Carbon Steel
- Brand: Irwin® Hanson®
- Mfr# : 1722ZR
- Item # : IRW 1722ZR
- UPC #: 042526017223
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Straight flutes are ground to provide rapid chip removal for efficient threading
- Designed for hand threading work in a variety of materials
- Ideal for all general purpose threading
- Most common chamfer
- Ideal for auto repair and machinery where metric threads are specified
DESCRIPTION
Irwin® Hanson®, 1722ZR, General Purpose Straight Flute Tap, Measurement System: Metric, M5x0.8 Thread, Plug Chamfer, 4 Flutes, High Carbon Steel, Uncoated, Class of Fit: 2B, Right Hand Cutting Direction, 22 mm Thread Length, 60 mm Overall Length, 5 mm Shank Diameter, H2 Thread Limit, Through Coolant (Yes/No): No
SPECIFICATIONS
| Type | : General Purpose |
| Measurement System | : Metric |
| Thread Standard | : UNC |
| Thread Size | : M5x0.8 |
| Chamfer Type | : Plug |
| Number of Flutes | : 4 |
| Material | : High Carbon Steel |
| Finish/Coating | : Uncoated |
| Class of Fit | : 2B |
| Cutting Direction | : Right Hand |
| Thread Length | : 22 mm |
| Overall Length | : 60 mm |
| Shank Diameter | : 5 mm |
| Thread Limit | : H2 |
| Through Coolant (Yes/No) | : No |
APPLICATION INFO
| Standard/Approvals | : USCTI Standards |
| Application | : For general purpose machines and appliances |
| Country of Origin | : US |
