Walter 6305146 Tiger-tec® Silver Turning Insert, ANSI Code: SNMG543-MP5 WPP30S, SNMG Insert, Material Grade: P, 543 Insert, Squared Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: WPP30S
Walter 6305146 Tiger-tec® Silver Turning Insert, ANSI Code: SNMG543-MP5 WPP30S, SNMG Insert, Material Grade: P, 543 Insert, Squared Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: WPP30S
Walter 6305146 Tiger-tec® Silver Turning Insert, ANSI Code: SNMG543-MP5 WPP30S, SNMG Insert, Material Grade: P, 543 Insert, Squared Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: WPP30S
- Brand: Walter
- Mfr# : 6305146
- Item # : WLT SNMG-543-MP5-WPP30S
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- Universal geometry for steel materials
- Reinforced chipbreaker blades
- Extremely wide range of applications
- Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times
- Mechanical post-treatment - unique residual stress rate, increased process reliability
- Large, universal chip breaking area and longer tool life for ISO P geometries
- Ground seating surface after coating for improved process reliability when working with interrupted cuts
- Silver flank face indicator layer for extremely easy wear detection
- Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation
- Extremely smooth rake face for excellent tribochemical wear resistance
DESCRIPTION

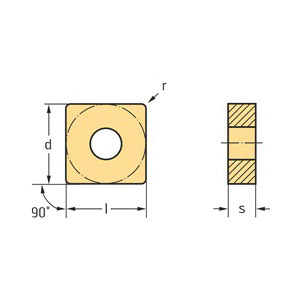

Walter Turning Insert, Series: Tiger-tec® Silver, SNMG Insert, 543 Insert, Squared, 8 mm Maximum Depth of Cut, 15.875 mm Inscribed Circle, 6.35 mm Thickness, 15.875 mm Width, 15.875 mm Length, 15 Seat, Negative Rake, MP5 Chipbreaker, 1.2 mm Corner Radius, 6.35 mm Hole Dia, Manufacturer's Grade: WPP30S, ANSI Code: SNMG543-MP5 WPP30S, ISO Code: SNMG150612-MP5 WPP30S, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel
SPECIFICATIONS
| Series | : Tiger-tec® Silver |
| Insert Style | : SNMG |
| Insert Size | : 543 |
| Maximum Depth of Cut | : 8 mm |
| Inscribed Circle | : 15.875 mm |
| Length | : 15.875 mm |
| Seat Size | : 15 |
| Rake | : Negative |
| Chipbreaker | : MP5 |
| Corner Radius | : 1.2 mm |
| Hole Diameter | : 6.35 mm |
| ANSI Code | : SNMG543-MP5 WPP30S |
| ISO Code | : SNMG150612-MP5 WPP30S |
| Included Angle | : 90 deg |
| Relief Angle | : 0 deg |
| Cutting Direction | : Neutral |
| Material | : Carbide |
| Finish | : CVD-TiCN+Al2O3 Coated |
| Material Grade | : P |
| For Use On | : Steel |
APPLICATION INFO
| Application | : Medium Machining Applications |
| Country of Origin | : DE |
