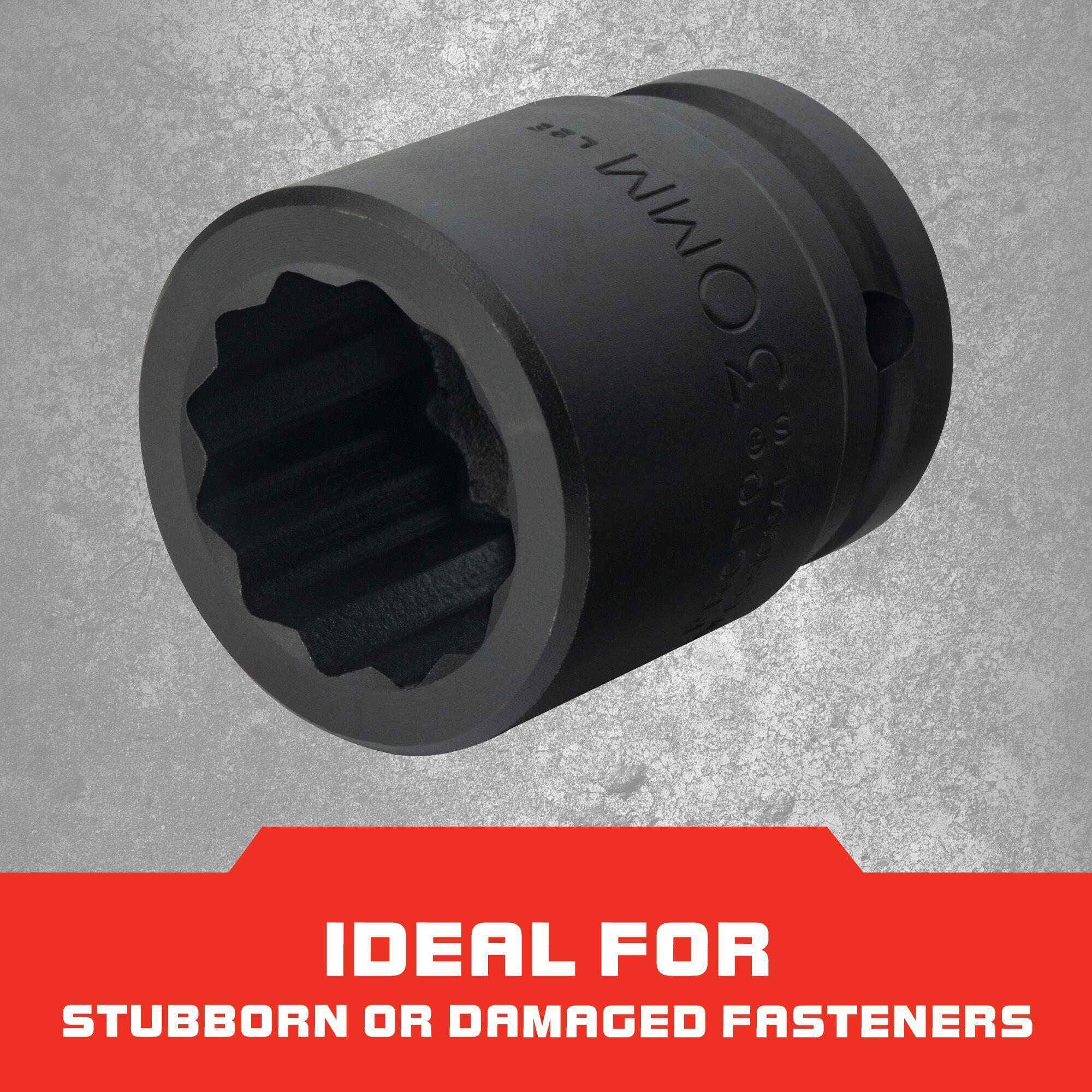

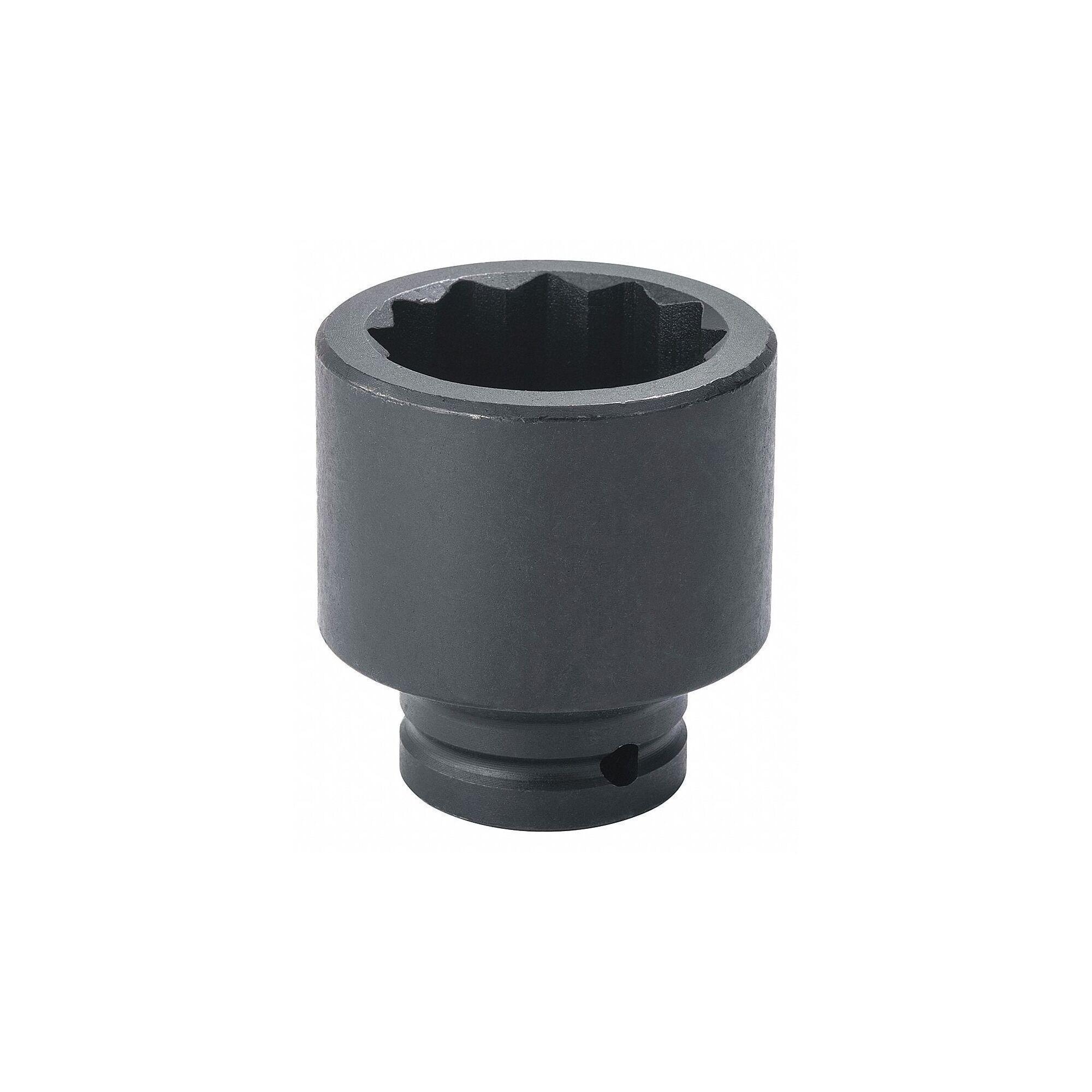

Proto® TorquePlus™ J07530MT Standard Length Socket, 3/4 in Square Drive, 30 mm, 12 Points
Proto® TorquePlus™ J07530MT Standard Length Socket, 3/4 in Square Drive, 30 mm, 12 Points
- Brand: Proto®
- Mfr# : J07530MT
- Item # : STP J07530MT
- UPC #: 662679112790
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
FEATURES

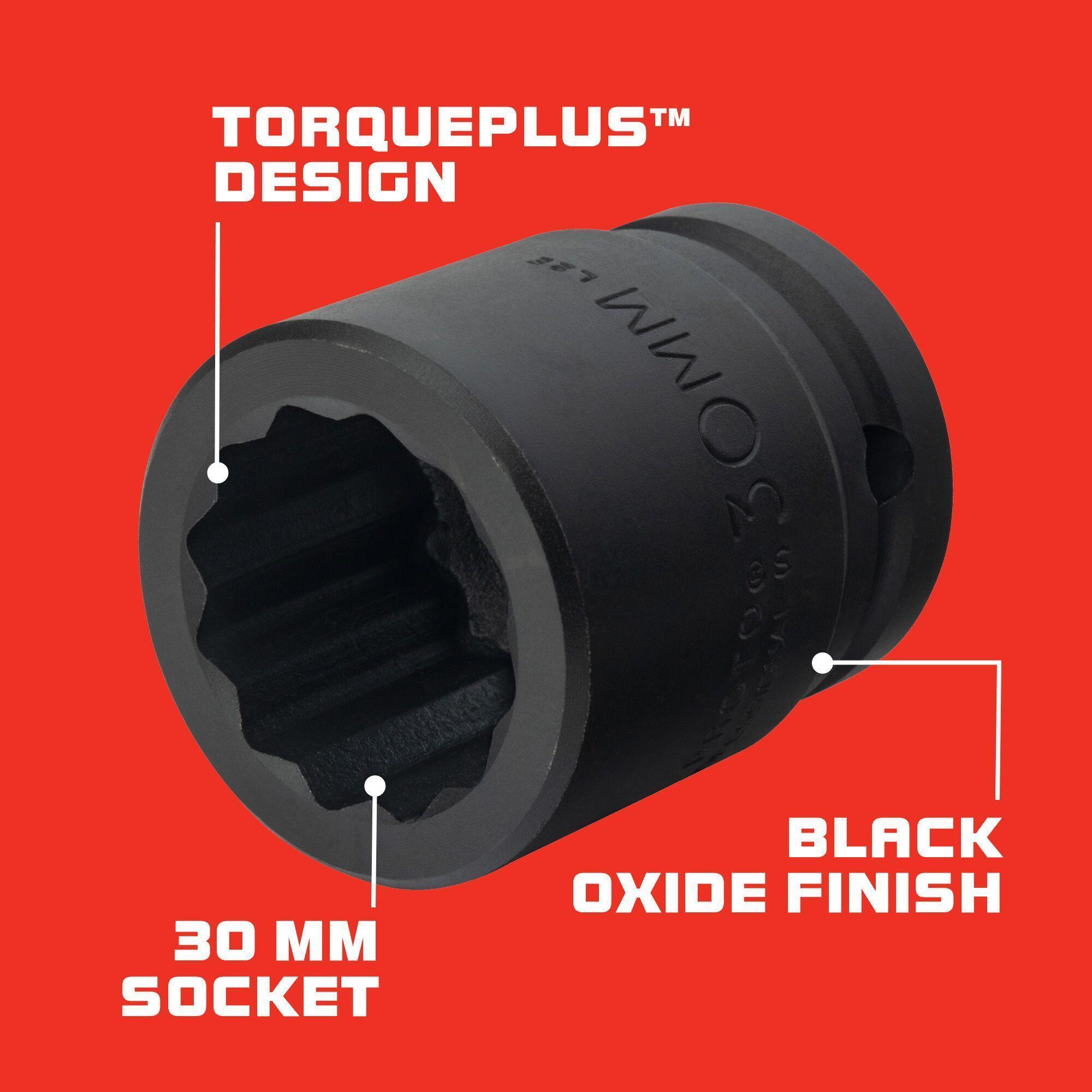

- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded, or rusted fasteners
- Stamped size for easy reference
DESCRIPTION
Proto® TorquePlus™ Socket, Standard Length, Series, Yes Impact Rated, Measurement System, Square Drive, Drive Size, in 3/4, Socket Size, mm 30, 2-1/8 Overall Length, Opening Depth in, in 1-3/32, 1-21/32 Drive End Width, Socket End Width in, in 1-7/8, Side Locking Hole Locking, Number of Points, Bolt Clearance Depth, in 1-7/32, Alloy Steel, Finish
SPECIFICATIONS
| Type | : Standard Length |
| Impact Rated | : Yes |
| Measurement System | : Metric |
| Drive Type | : Square |
| Drive Size | : 3/4 in |
| Socket Size | : 30 mm |
| Overall Length | : 2-1/8 in |
| Opening Depth | : 1-3/32 in |
| Drive End Width | : 1-21/32 in |
| Socket End Width | : 1-7/8 in |
| Locking Type | : Side Locking Hole |
| Number of Points | : 12 |
| Bolt Clearance Depth | : 1-7/32 in |
| Material | : Alloy Steel |
| Finish | : Black Oxide |
APPLICATION INFO
| Standard/Approvals | : ASME B107.110/B107.33M |
| Application | : For use on stubborn or damaged fasteners, and also on fasteners made from soft materials |
| Country of Origin | : US |
