Seco 02615980 Turning Insert, ANSI Code: TNMP432-M1 TS2500, TNMG Insert, Material Grade: S, 220408 Insert, Triangular Shape, 22 Seat, Negative Rake, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturer's Grade: TS2500

Seco 02615980 MCT 39063

Seco 02615980 Turning Insert, ANSI Code: TNMP432-M1 TS2500, TNMG Insert, Material Grade: S, 220408 Insert, Triangular Shape, 22 Seat, Negative Rake, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturer's Grade: TS2500

Seco 02615980 Turning Insert, ANSI Code: TNMP432-M1 TS2500, TNMG Insert, Material Grade: S, 220408 Insert, Triangular Shape, 22 Seat, Negative Rake, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturer's Grade: TS2500

  • Brand: Seco
  • Mfr# : 02615980
  • Item # : MCT 39063
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

DESCRIPTION

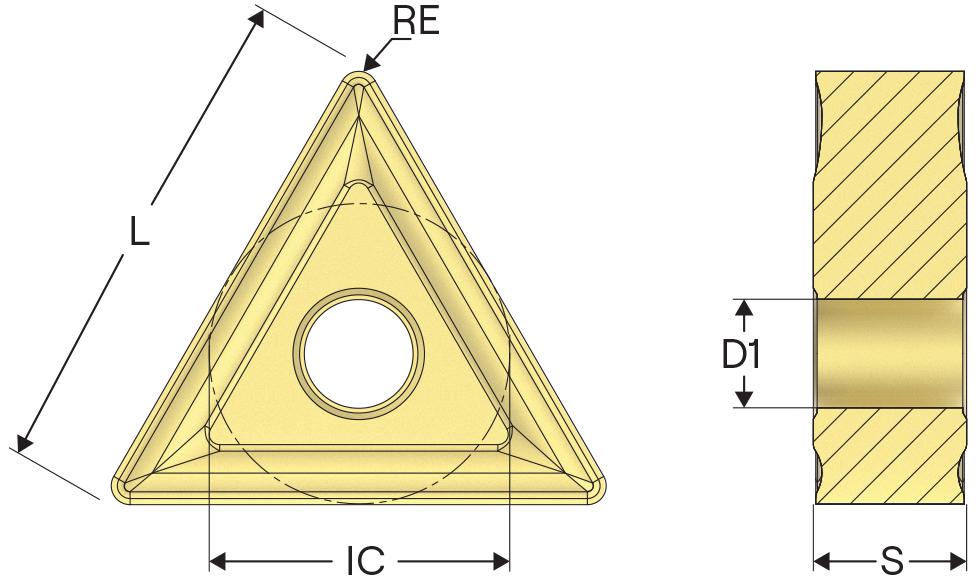

Seco Turning Insert, TNMG Insert, 220408 Insert, Triangular, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 22 mm Length, 22 Seat, Negative Rake, M1 Chipbreaker, 0.8 mm Corner Radius, 5.15 mm Hole Dia, Manufacturer's Grade: TS2500, ANSI Code: TNMP432-M1 TS2500, ISO Code: TNMG220408-M1 TS2500, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: S, For Use On: Super Alloys and Titanium

SPECIFICATIONS

Insert Style      :    TNMG
Insert Size      :    220408
Shape      :    Triangular
Maximum Depth of Cut      :    5.25 mm
Inscribed Circle      :    12.7 mm
Length      :    22 mm
Seat Size      :    22
Rake      :    Negative
Chipbreaker      :    M1
Corner Radius      :    0.8 mm
Hole Diameter      :    5.15 mm
ANSI Code      :    TNMP432-M1 TS2500
ISO Code      :    TNMG220408-M1 TS2500
Included Angle      :    60 deg
Relief Angle      :    0 deg
Cutting Direction      :    Neutral
Material      :    Carbide
Finish      :    PVD-TiAlN+TiN Coated
Material Grade      :    S
For Use On      :    Super Alloys and Titanium

APPLICATION INFO

Application      :    Medium Applications
Country of Origin      :    IN
