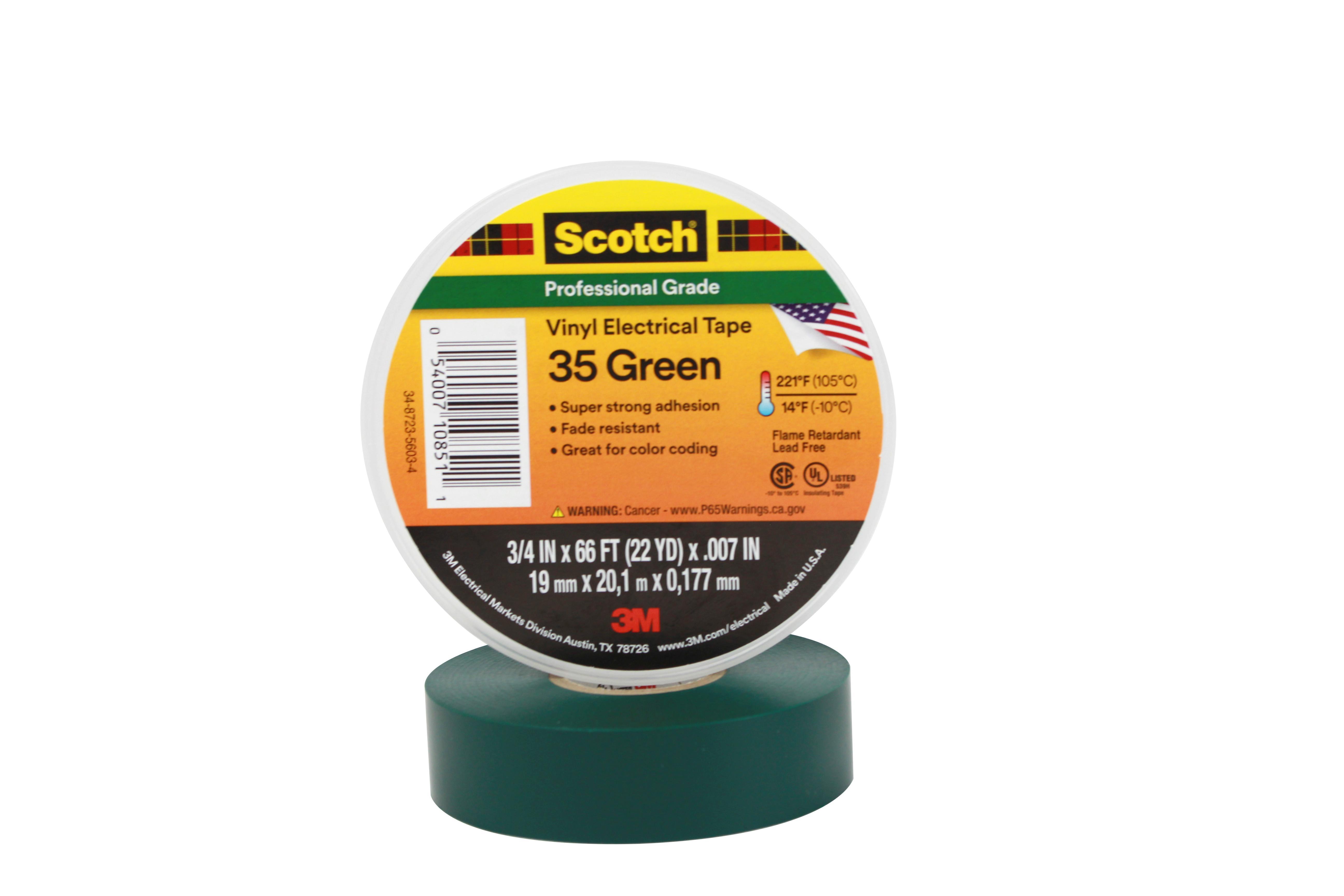

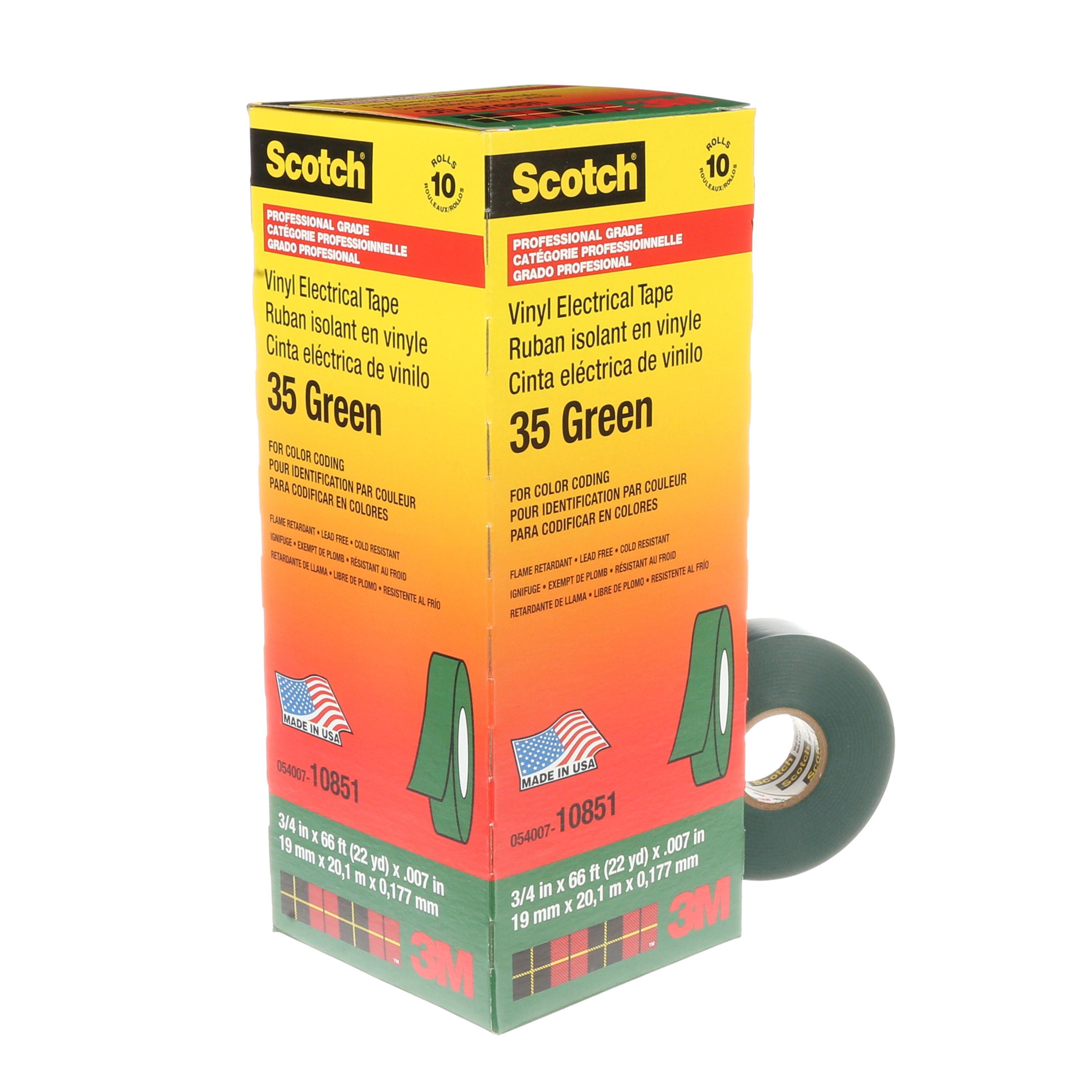

Scotch® 7000006098 Electrical Maintenance Tape, 22 yd L 0.75 in W, 7 mil THK, Vinyl, Rubber Adhesive, PVC Backing, Green

Scotch® 7000006098 Electrical Maintenance Tape, 22 yd L 0.75 in W, 7 mil THK, Vinyl, Rubber Adhesive, PVC Backing, Green

Scotch® 7000006098 Electrical Maintenance Tape, 22 yd L 0.75 in W, 7 mil THK, Vinyl, Rubber Adhesive, PVC Backing, Green


  • Brand: Scotch®
  • Mfr# : 7000006098
  • Item # : MMM 35-3/4 GREEN
  • UPC #: 054007108511
  • Min. Order Qty:
  • Qty. Interval:

loading
loading

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000057831_Catalog.pdf
  • pdf Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000057831_User_Manual.pdf
  • pdf Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000132637_Specification_Sheet.pdf

FEATURES

  • The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection
  • Flame-retardant and highly resistant to UV rays, abrasion, moisture, alkalis, solvents and many acids
  • Suitable for use in phase identification, color-coding of motor leads and piping systems and for marking safety areas
  • Withstands a temperature range of 14 to 221 deg F (-10 to 105 deg C)

DESCRIPTION

Scotch® Vinyl Electrical Tape 35 is a US-made, professional-grade, nominal 7-mil (0.178 mm) thick, electrical insulating PVC tape. It is available in 10 fade-resistant colors and composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, rubber-based pressure-sensitive adhesive. In accordance with NFPA 70, National Electrical Code–where flame, sunlight and cold resistance is required–this adhesive is best used as primary insulation on applications up to 600V at a maximum temperature of 80 °C (176 °F) and minimum temperature of -10 °C (14 °F) on joints and splices in wires and cables. The tape's color-coded system helps identify cables on cell sites, phase coding, motor leads and piping systems to improve safety on industrial, commercial and residential jobs. ​ UL Listed, CSA Listed, and RoHS and Prop 65 compliant, use Scotch® Vinyl Electrical Tape 35 for critical indoor and outdoor operations where General Vinyl Electrical tape is not recommended.

Scotch®, 7000006098, Tape, Electrical Maintenance, 22 yd Length, 0.75 in Width, 7 mil Thickness, Vinyl, Green, Rubber Adhesive, PVC Backing, 6 V, 600 V Dielectric Strength, 221 deg F Maximum Operating, 32 deg F Minimum Operating, Specifications Met: CSA Certified/RoHS 211/65/EU/UL Listed/VDE 34-TEIL1

SPECIFICATIONS

Type      :    Electrical Maintenance
Length      :    22 yd
Width      :    0.75 in
Thickness      :    7 mil
Material Type      :    Vinyl
Color      :    Green
Adhesive Material      :    Rubber
Backing Material      :    PVC
Adhesion Strength      :    20 in-oz
Voltage Rating      :    6 V
Dielectric Strength      :    600 V
Tensile Strength      :    17 in-lb
Maximum Operating Temperature      :    221 deg F
Minimum Operating Temperature      :    32 deg F
Specifications Met      :    CSA Certified/RoHS 211/65/EU/UL Listed/VDE 34-TEIL1

APPLICATION INFO

Standard/Approvals      :    CSA/VDE Certified|UL 510 Listed|Prop 65 Compliant|IEC 60454-3-1-6|RoHS Compliant|NFPA 70
Application      :    For Electrical Maintenance
Country of Origin      :    US
