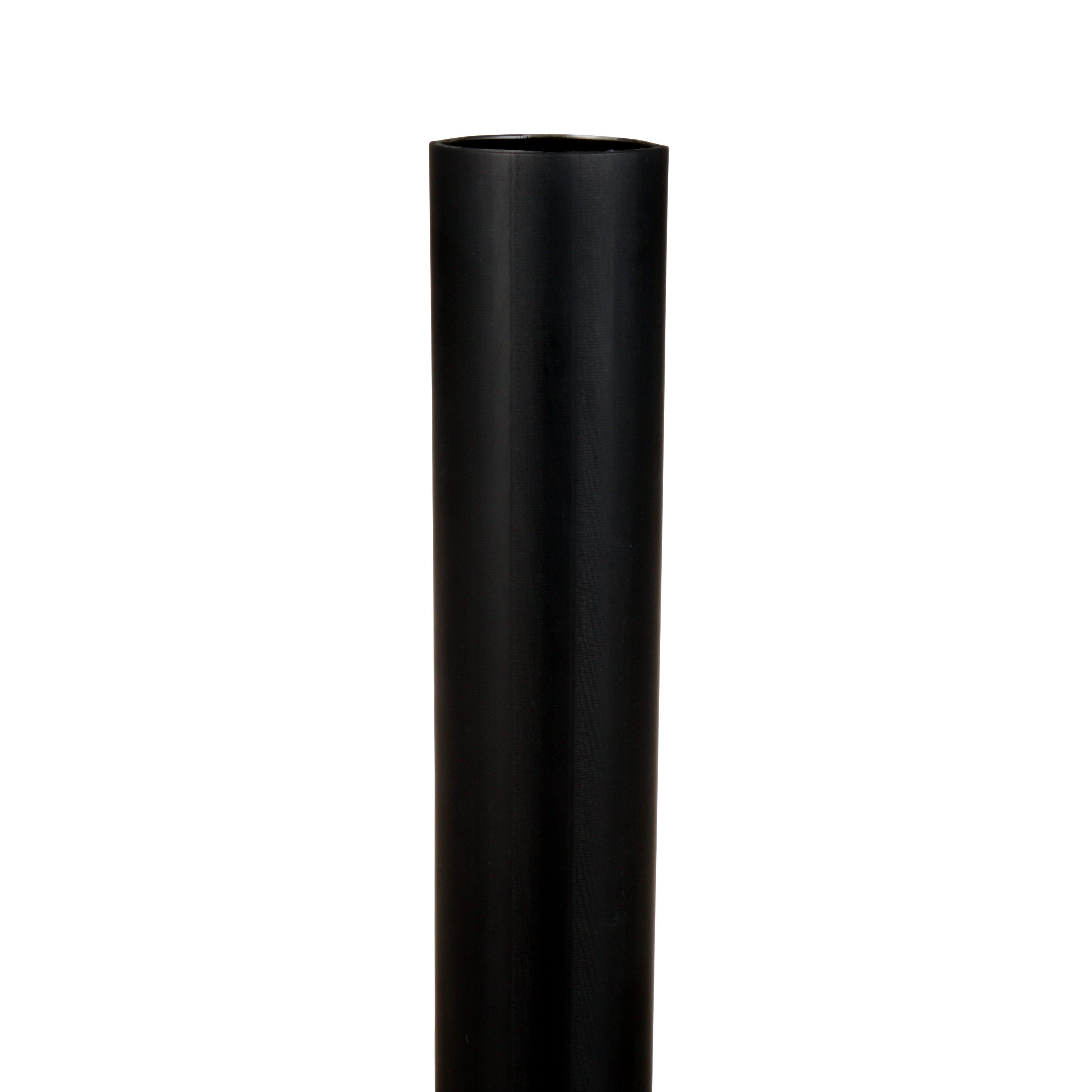

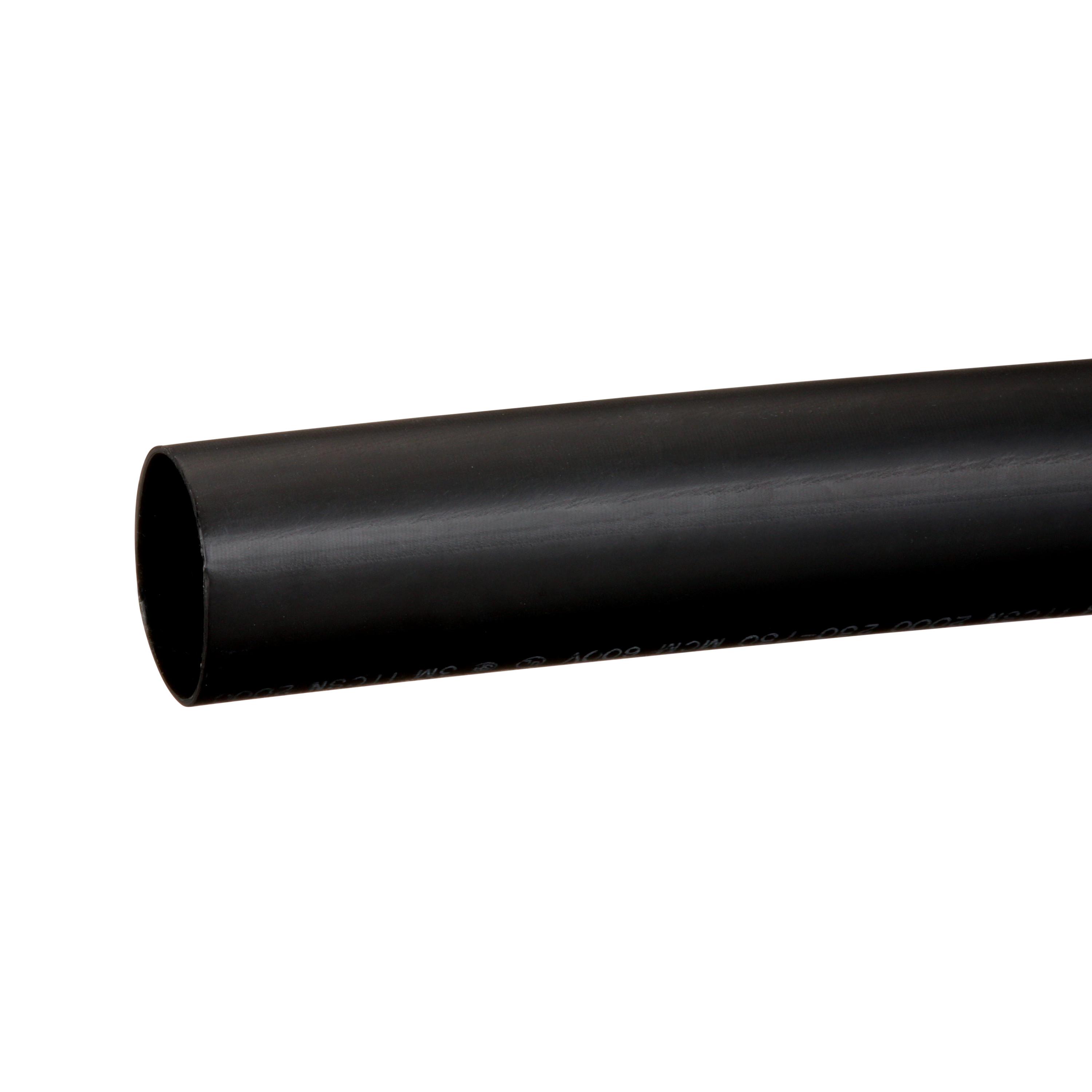

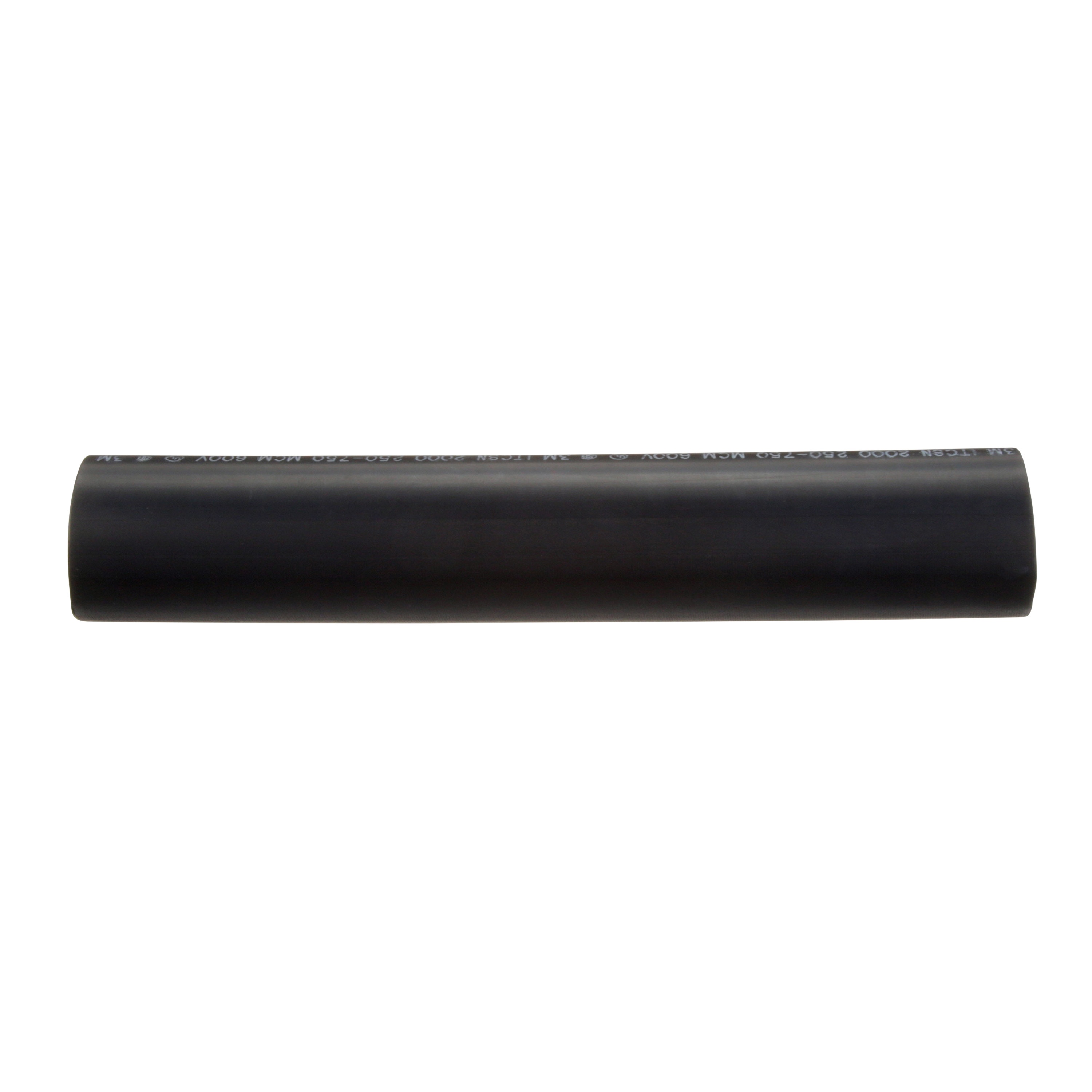

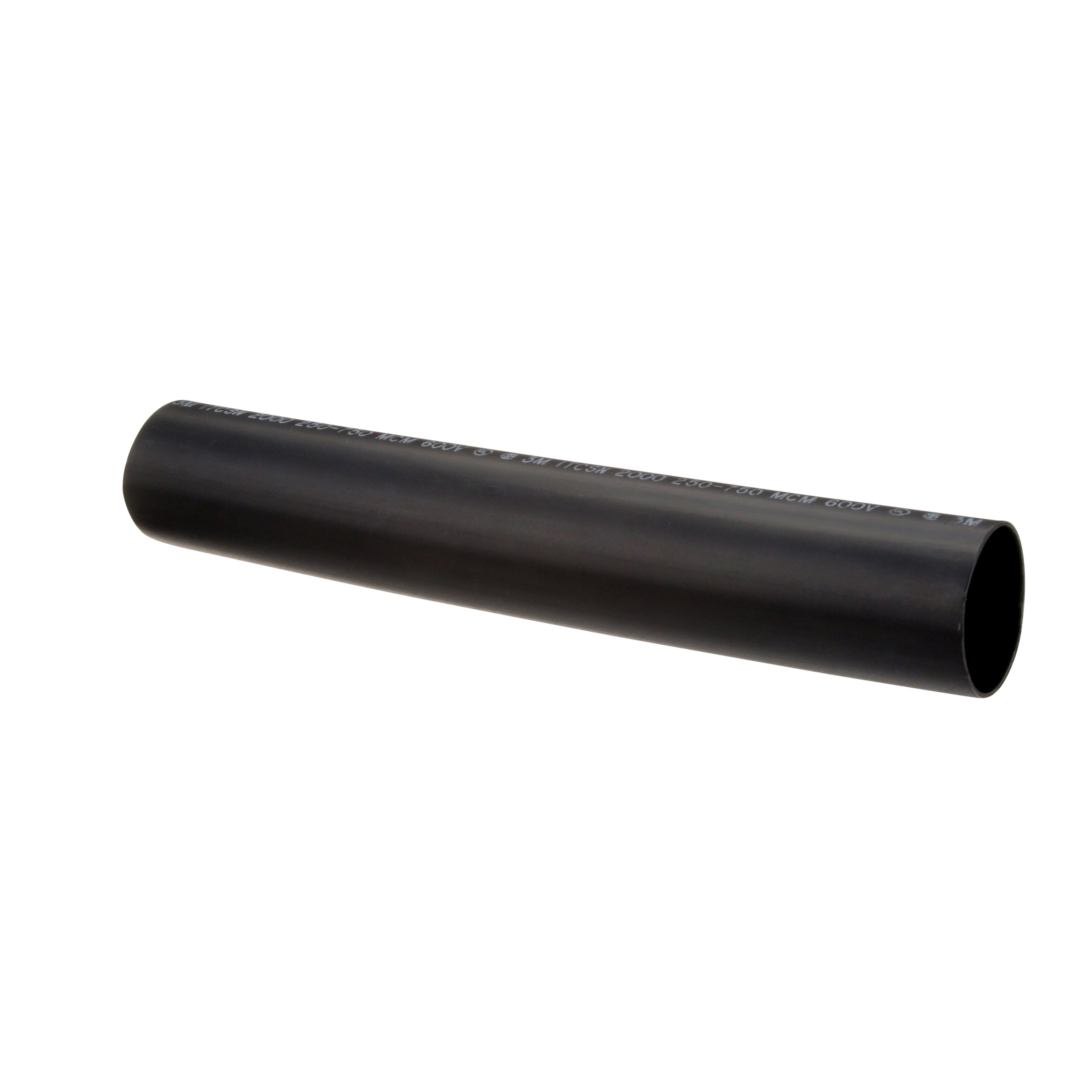

3M™ 7000132375 IT2.000BK12 Tubing, 0.65 in ID Recovered, 12 in L, Adhesive-Lined Polyolefin, Black
3M™ 7000132375 IT2.000BK12 Tubing, 0.65 in ID Recovered, 12 in L, Adhesive-Lined Polyolefin, Black
- Brand: 3M™
- Mfr# : 7000132375
- Item # : MMM 08899
- UPC #: 054007088998
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
FEATURES
- IDEAL FOR A VARIETY OF APPLICATIONS - Used for insulating secondary splices, direct-buried, submersible, or dig in repairs, and physical protection of high voltage, air-insulated connectors or lugs
- DURABLE CONSTRUCTION - Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin, non-adhesive options are also available
- HIGHLY RESISTANT - Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
- WIDE OPERATING TEMPERATURE RANGE - Withstands temperatures between 67-230 degF (55-110 degC)
DESCRIPTION
3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.
3M™, 7000132375, Tubing, Series: IT2.000BK12, 600 V, 1 kV, 2 in ID Expanded, 0.65 in ID Recovered, Heavy Duty Wall, 3:1 Shrink Ratio, 12 in Length, -55 to 100 deg C, 250 deg F Shrink, Adhesive-Lined Polyolefin, Black
SPECIFICATIONS
| Series | : IT2.000BK12 |
| Voltage Rating | : 600 V, 1 kV |
| Inner Diameter Expanded | : 2 in |
| Inner Diameter Recovered | : 0.65 in |
| Wall Type | : Heavy Duty |
| Wire Size | : 250 to 750 kcmil |
| Shrink Ratio | : 3:1 |
| Length | : 12 in |
| Temperature Rating | : -55 to 100 deg C |
| Shrink Temperature | : 250 deg F |
| Material | : Adhesive-Lined Polyolefin |
| Color | : Black |
APPLICATION INFO
| Standard/Approvals | : UL 486D|CSA Certified||RoHS 2011/65/EU Compliant |
| Application | : Ideal for variety of applications - Used for insulating secondary splices |
| Country of Origin | : US |
