Parker® VVP500P-8 In-Line Ball Valve, 1/2 in Nominal, FNPT End Style, Brass Body, PTFE Softgoods

Parker® VVP500P-8 In-Line Ball Valve, 1/2 in Nominal, FNPT End Style, Brass Body, PTFE Softgoods

Parker® VVP500P-8 In-Line Ball Valve, 1/2 in Nominal, FNPT End Style, Brass Body, PTFE Softgoods


  • Brand: Parker®
  • Mfr# : VVP500P-8
  • Item # : PRK VVP500P-8
  • Min. Order Qty:
  • Qty. Interval:

loading
loading

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Parker_32PLCK_10M_Catalog.pdf

FEATURES

  • Forged body for added strength
  • Quarter turn handle provides positive stop action for full shutoff
  • Optimum flow design assures maximum system efficiency
  • Highly inert PTFE seats and seals provide resistance to chemical corrosion
  • Blow-out proof stem
  • Machined from high quality CA 377 forgings
  • Padlock mechanism
  • Vented up to 250 psi
  • Straight and solder thread
  • 150 psi saturated steam pressure
  • 0.5 in flow diameter

DESCRIPTION

Parker's industrial brass ball valves are designed to provide years of service at an economical price. Manufactured for commercial and general industrial applications these valves offer increased performance over light weight throwaway valves. These ball valves are intended for use in the fully open or closed positions. Throttling of the valve may result in premature seal failure and/or inability to turn the valve handle. Parker's brass ball valves are available in a range of styles including: female x female, female x male, Panel mount, female straight thread x female straight thread, solder ends, female straight thread x male straight thread, 3 and 4 way diversion, 90 deg valves, beaded hose barb end, 6 port valve, options for the brass ball valves include: nickel Plating, venting, Padlocking Handles, stainless steel ball & stem, stainless steel handle and nut, Tee handle, Oval handle, Plain yellow vinyl handle cover, Actuator Kit.

Parker® Ball Valve, In-Line, Series: VVP500P, 1/2 in Nominal, FNPT End Style, 250 psi Pressure, 0 to 350 deg F, 12 Cv Flow Rate, Media: Gas, Oil, Steam and Water, Steel Lever Handle Actuator, Brass Ball, Brass Body, PTFE Softgoods, Polished Chrome Ball, 5 in L x 2.58 in H

SPECIFICATIONS

Type      :    In-Line
Series      :    VVP500P
Nominal Size      :    1/2 in
End Style      :    FNPT
Pressure Rating      :    250 psi
Temperature Rating      :    0 to 350 deg F
Flow Rate      :    12 Cv
Media      :    Gas, Oil, Steam and Water
Actuator Type      :    Steel Lever Handle
Ball Material      :    Brass
Body Material      :    Brass
Softgoods Material      :    PTFE
Finish      :    Polished Chrome Ball

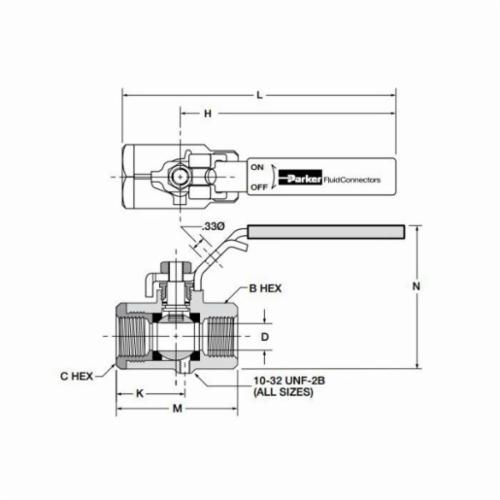

Dimensions      :    5 in L x 2.58 in H

APPLICATION INFO

Application      :    For heavy duty truck, agriculture, construction, industrial, fuel line shutoffs for gasoline and diesel equipment, air service lines, water service lines on capital equipment and plant design plumbing requiring total shutoff capability
