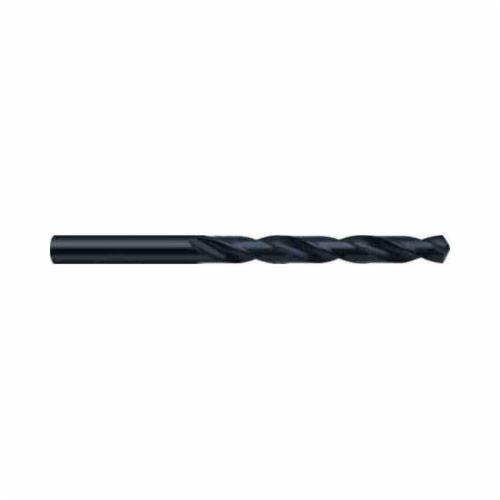

Guhring 9003050004800 305 Type N General Purpose Jobber Length Drill Bit, 0.48 mm Drill - Metric, 0.0188 in Drill - Decimal Inch, 118 deg Point, HSCO, Uncoated
Guhring 9003050004800 305 Type N General Purpose Jobber Length Drill Bit, 0.48 mm Drill - Metric, 0.0188 in Drill - Decimal Inch, 118 deg Point, HSCO, Uncoated
Guhring 9003050004800 305 Type N General Purpose Jobber Length Drill Bit, 0.48 mm Drill - Metric, 0.0188 in Drill - Decimal Inch, 118 deg Point, HSCO, Uncoated
- Brand: Guhring
- Mfr# : 9003050004800
- Item # : GUH 9003050004800
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Increased wear resistance
DESCRIPTION
Guhring Jobber Length Drill Bit, Type N General Purpose, Series: 305, Metric/Imperial, 0.48 mm Drill - Metric, 0.0188 in Drill - Decimal Inch, 20 mm Overall Length, 5XD Cutting Depth, 2 Flutes, Right Spiral Flute, 5 mm Flute Length, 0.48 mm Shank, Straight Shank, 118 deg Point, Cone Relief Point, Right Hand Cutting Direction, HSCO Cutting Edge, No Through Coolant, HSCO, Uncoated, Applicable Materials: Alloyed Steels, Brass, Bronze, Cast Iron, Plastic, Stainless Steels and Tool Steels
SPECIFICATIONS
| Type | : Type N General Purpose |
| Series | : 305 |
| Drill Diameter Measurement System | : Metric/Imperial |
| Drill Size - Metric | : 0.48 mm |
| Drill Size - Decimal Inch | : 0.0188 in |
| Overall Length | : 20 mm |
| Cutting Depth | : 5XD |
| Number of Flutes | : 2 |
| Flute Type | : Right Spiral |
| Flute Length | : 5 mm |
| Shank Size | : 0.48 mm |
| Shank Type | : Straight |
| Point Angle | : 118 deg |
| Point Type | : Cone Relief |
| Cutting Direction | : Right Hand |
| Cutting Edge Material | : HSCO |
| Through Coolant (Yes/No) | : No |
| Material | : HSCO |
| Finish | : Uncoated |
| Applicable Materials | : Alloyed Steels, Brass, Bronze, Cast Iron, Plastic, Stainless Steels and Tool Steels |
APPLICATION INFO
| Standard/Approvals | : DIN 338|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer |
| Country of Origin | : DE |
