Starrett® 657D Magnetic Indicator Holder, 1-15/16 in L x 1-5/8 in W x 1-7/8 in H Base, 3/8 in Dia x 9-1/2 in L Rod

Starrett® 657D STC 657D

Starrett® 657D Magnetic Indicator Holder, 1-15/16 in L x 1-5/8 in W x 1-7/8 in H Base, 3/8 in Dia x 9-1/2 in L Rod

Starrett® 657D Magnetic Indicator Holder, 1-15/16 in L x 1-5/8 in W x 1-7/8 in H Base, 3/8 in Dia x 9-1/2 in L Rod

  • Brand: Starrett®
  • Mfr# : 657D
  • Item # : STC 657D
  • UPC #: 049659527490
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Starrett_58S_Catalog.pdf

FEATURES

  • Three precision ground magnetic contact surfaces (plus V-step)
  • Powerful, permanent magnetic base holds firmly to steel or iron surfaces - horizontally, vertically, upside-down
  • The swivel post assembly on these holders provides universal adjustment in both horizontal and vertical planes

DESCRIPTION

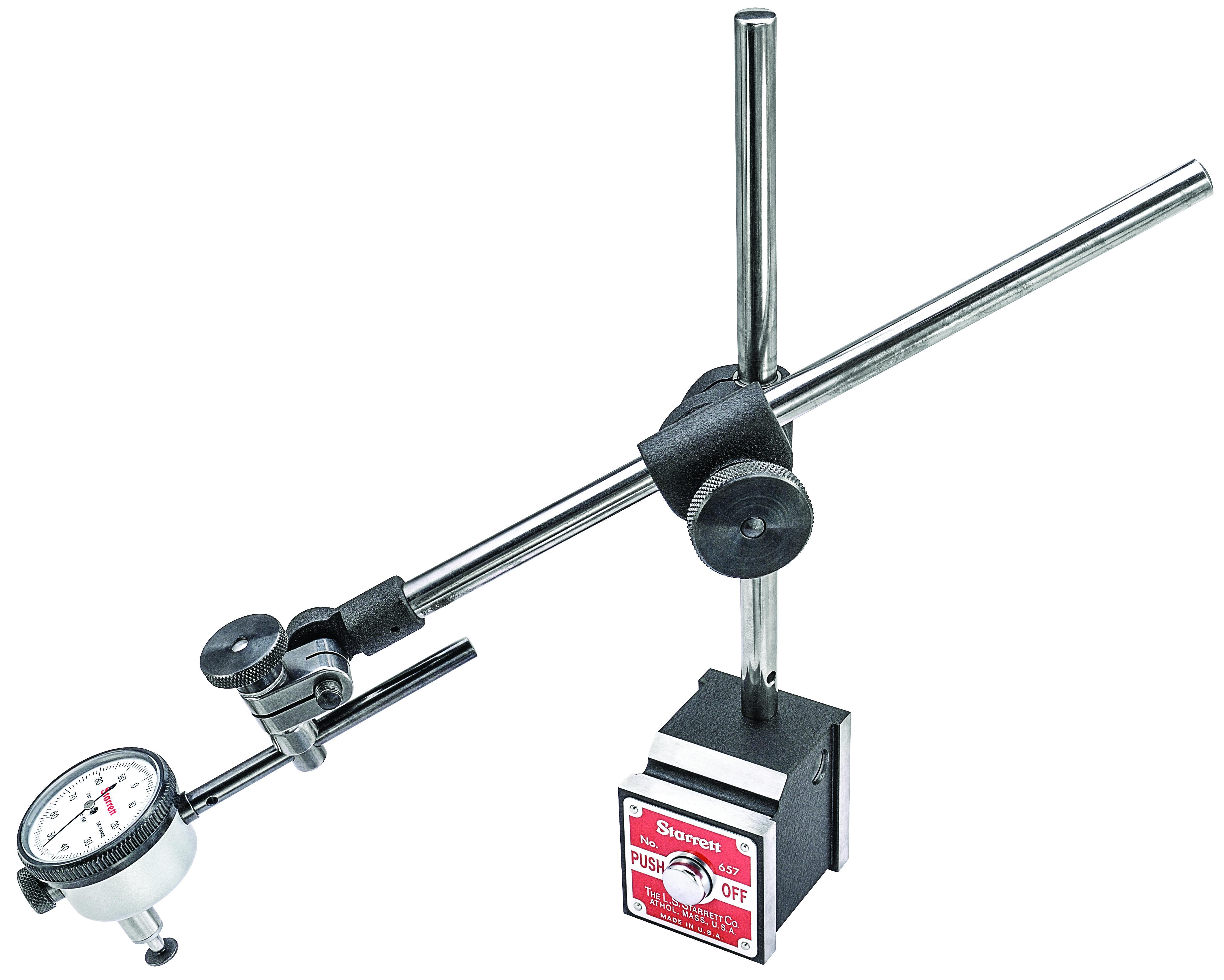

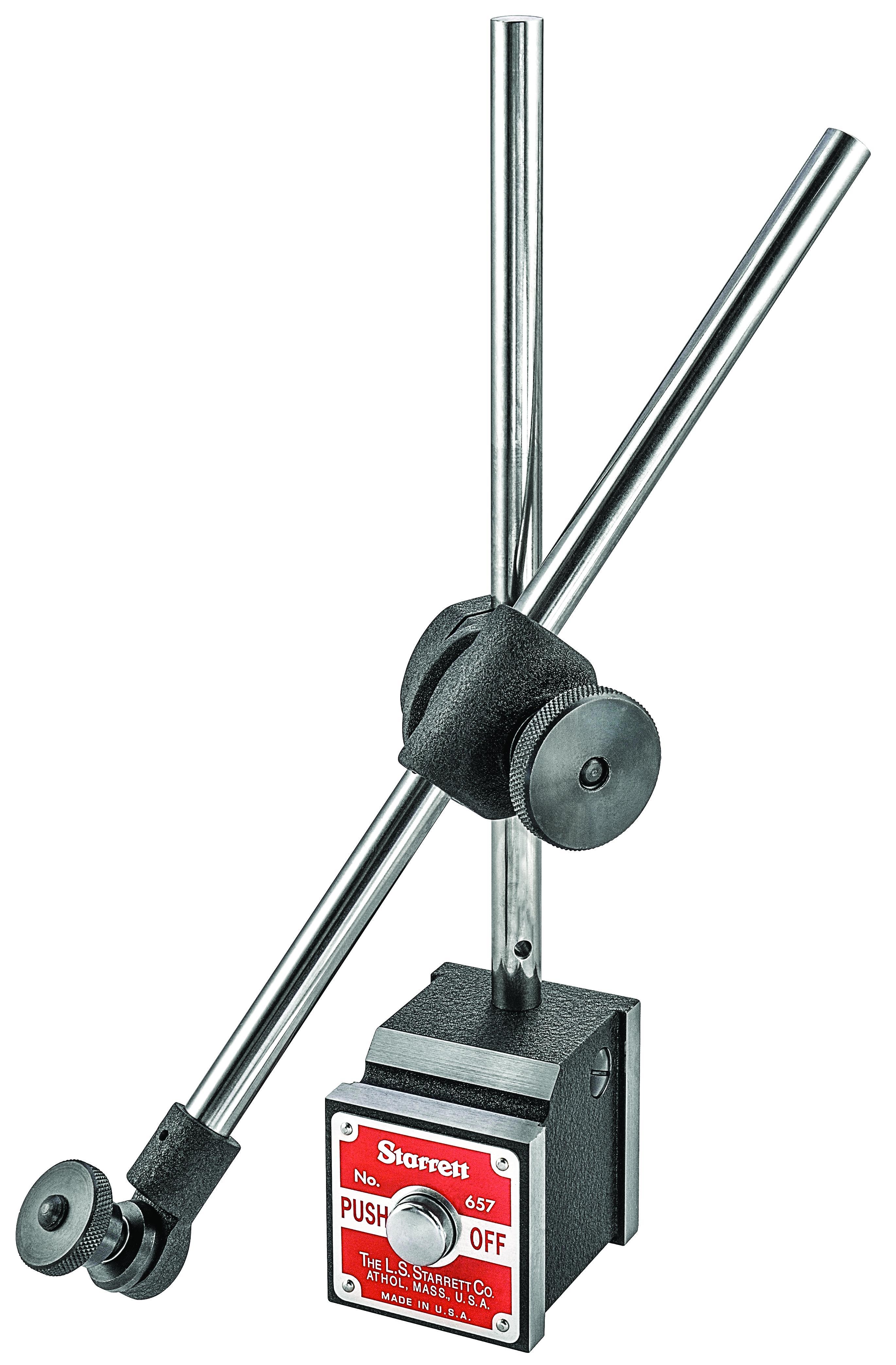

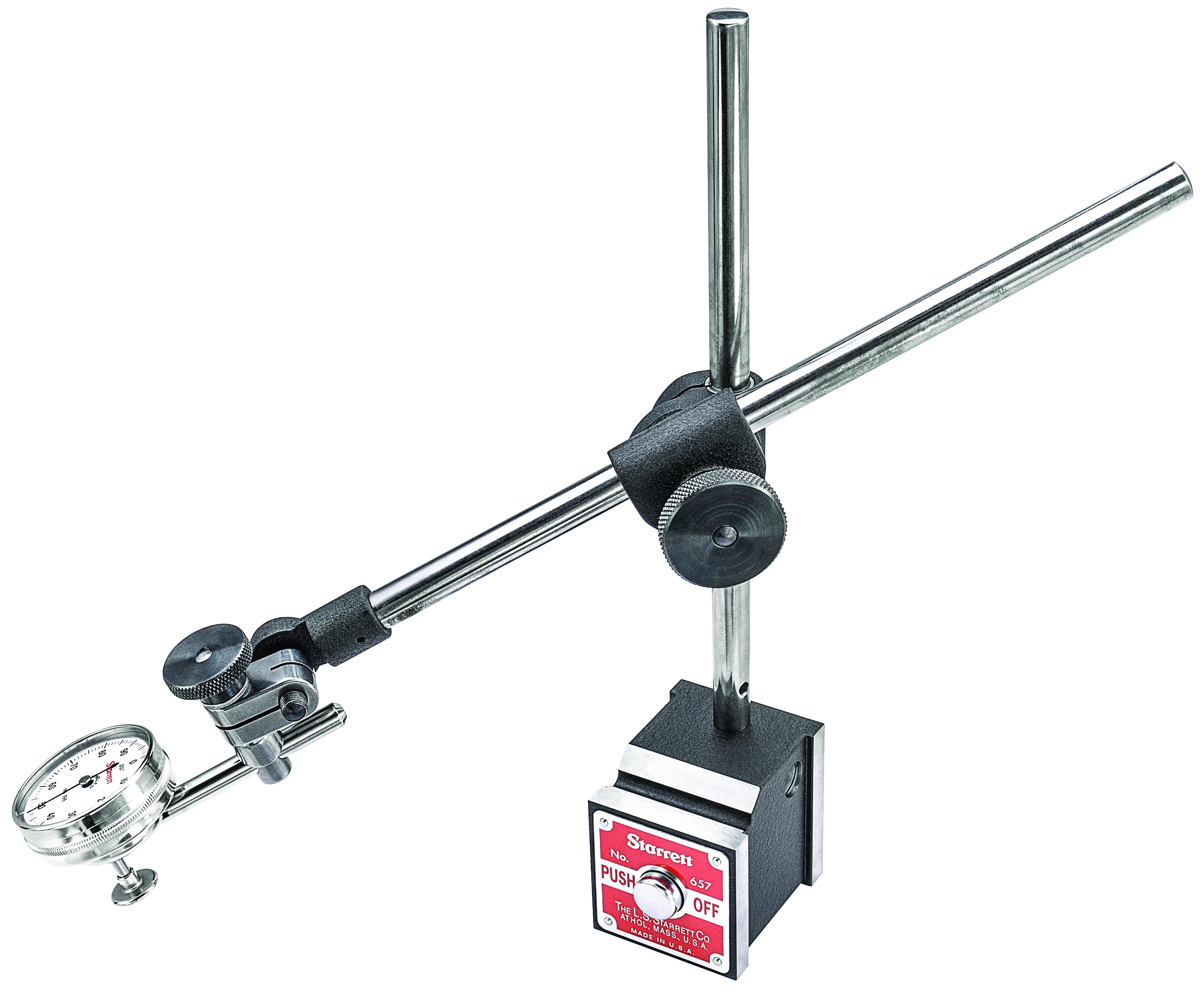

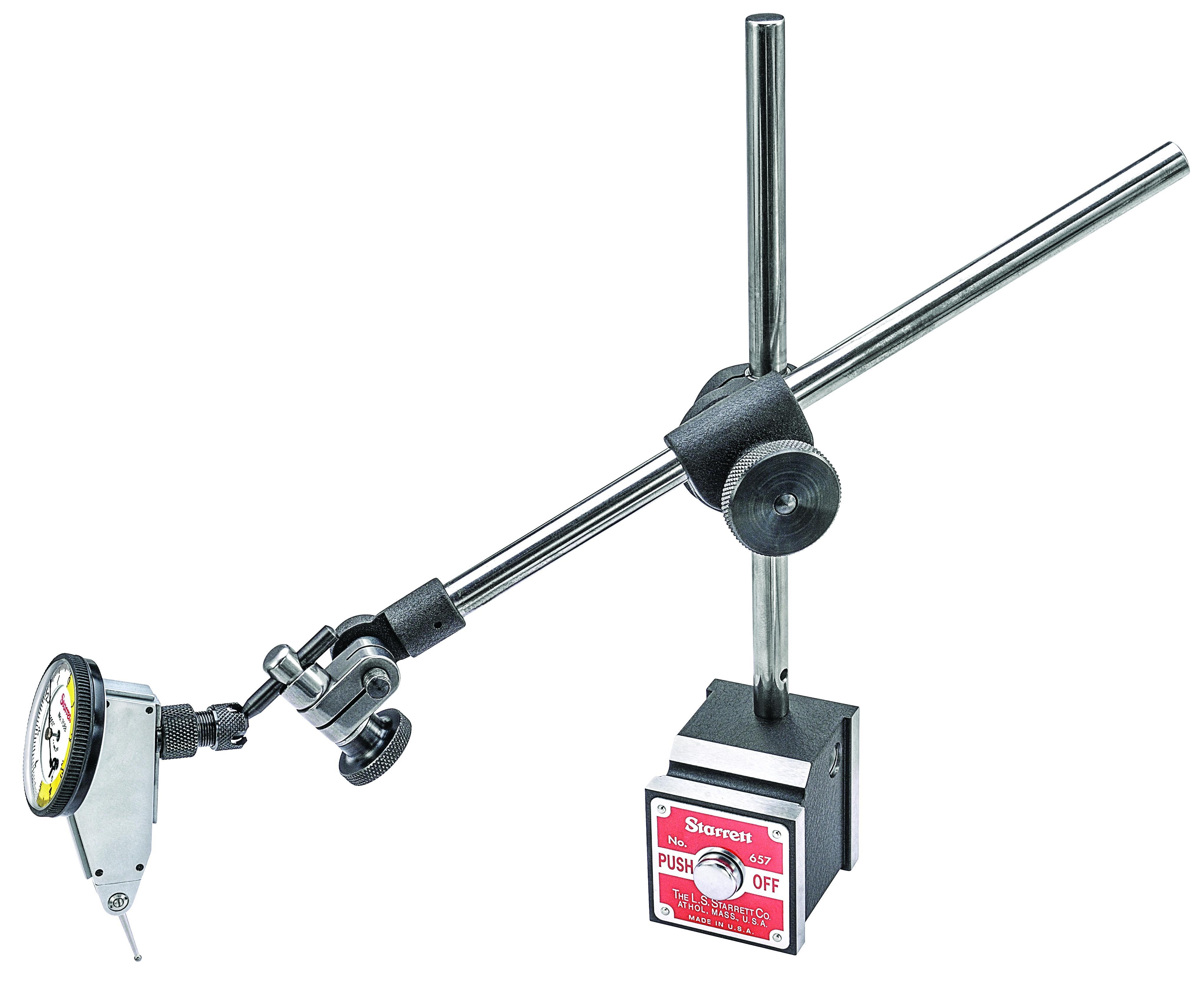

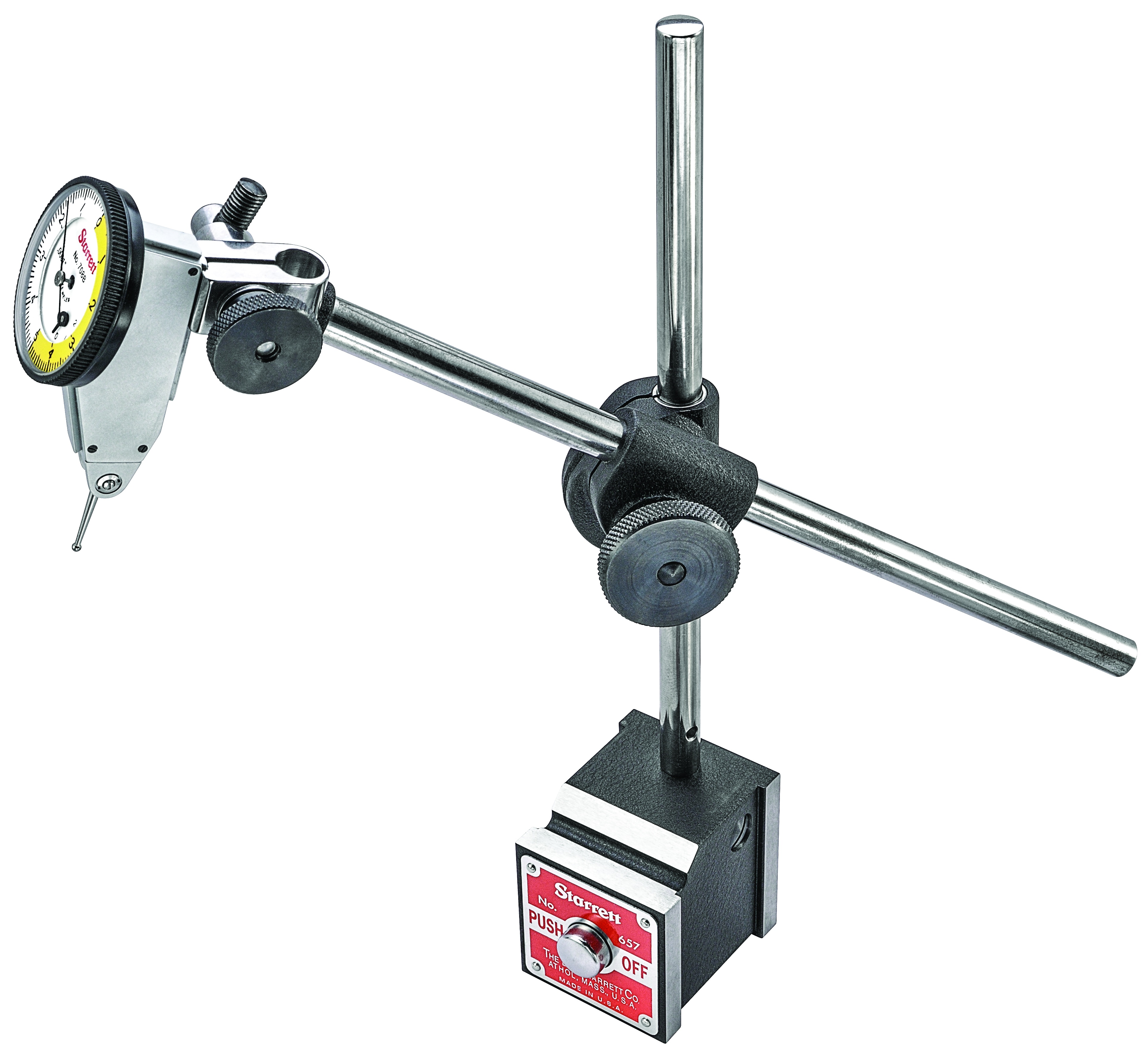

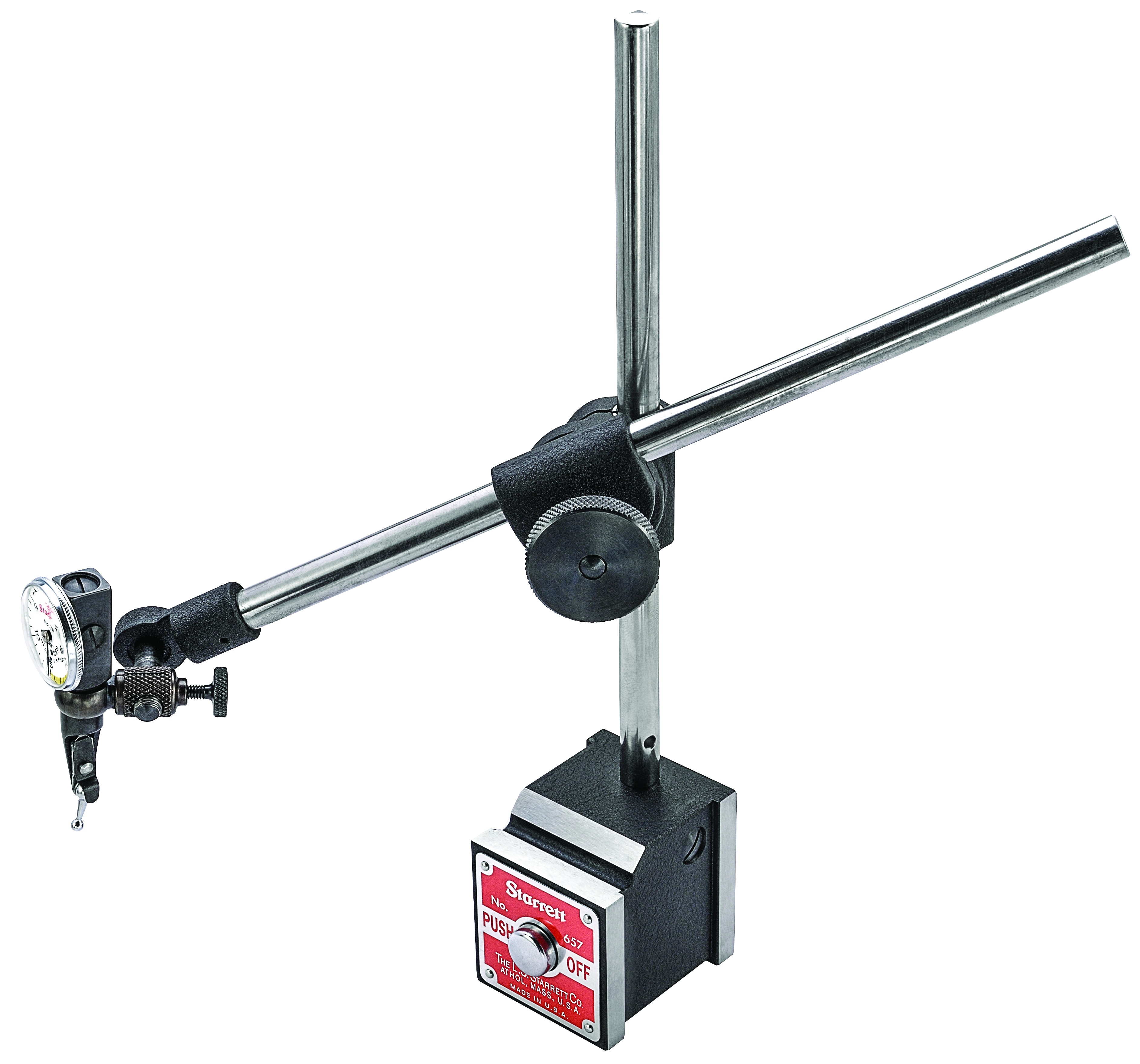

The Starrett 657 Magnetic Indicator Holder Base has three precision ground, magnetic contact surfaces. Grips horizontally, vertically or upside down. V-step holds base to round surfaces. Extra #1/4-20 tapped hole in one side of base (not shown) for mounting post. Available with or without Starrett AGD Dial Indicators: inch reading 25-131J (graduation .0005", dial reading 0-25-0, range .125") or millimeter reading 25-181J (graduation 0.01mm, dial reading 0-50-0, range 2.5mm). Other indicators can be furnished on request. Magnetic Base with 657G/657H/657J.

Starrett® Magnetic Indicator Holder, 1-15/16 in L x 1-5/8 in W x 1-7/8 in H Base, 3/8 in Rod Dia, 9-1/2 in Rod Length, 3/8 in Upright Post Dia, 7-7/16 in Upright Post Length

SPECIFICATIONS

Base Size      :    1-15/16 in L x 1-5/8 in W x 1-7/8 in H
Rod Diameter      :    3/8 in
Rod Length      :    9-1/2 in
Upright Post Diameter      :    3/8 in
Upright Post Length      :    7-7/16 in

APPLICATION INFO

Standard/Approvals      :    PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin      :    US
