The Thread turning insert 16ER8ACME CP500 features an ACME external thread form type with a minimum of 8 threads per inch. It is made from a carbide PVD grade CP500. The insert has one tooth and three cutting edges. This insert is designed for use with steel, stainless steel, cast irons, superalloys, and titanium. It is partially applicable for non-ferrous materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

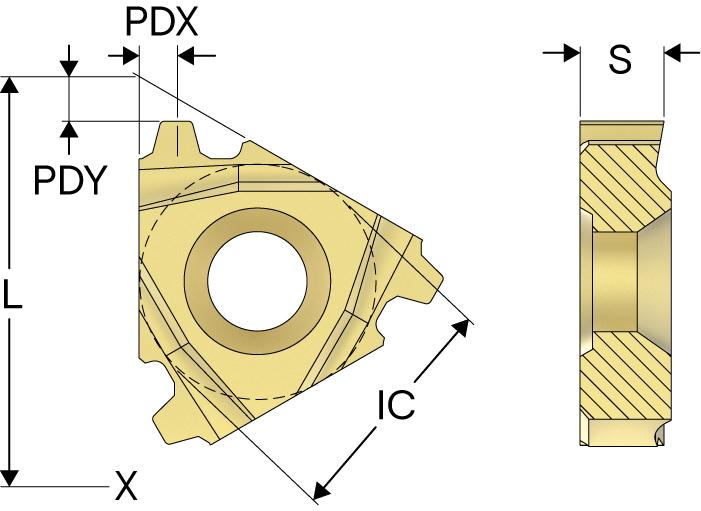

Seco Threading Insert, Laydown, Series: Snap-Tap®, 16ER Insert, 16 Insert, External Thread, Acme Thread Standard, 8 Threads per Inch, 9.5 mm Inscribed Circle, 3.5 mm Thickness, 16.5 mm Length, ANSI Code: 16ER8ACME CP500, ISO Code: 16ER8ACME CP500, 29 deg Included Angle, Manufacturer's Grade: CP500, Right Hand Cutting Direction, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M
