WIDIA GTD 2852218 EM-SS™ 8354 High Performance WIDIA GTD Spiral Flute Tap, Right Hand Cutting, M14x2 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Black Oxide, HSS-E
WIDIA GTD 2852218 EM-SS™ 8354 High Performance WIDIA GTD Spiral Flute Tap, Right Hand Cutting, M14x2 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Black Oxide, HSS-E
WIDIA GTD 2852218 EM-SS™ 8354 High Performance WIDIA GTD Spiral Flute Tap, Right Hand Cutting, M14x2 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Black Oxide, HSS-E
- Brand: WIDIA GTD
- Mfr# : 2852218
- Item # : GRE 74629
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Manufactured from special high vanadium HSS-E
- Unique spiral flute geometry for improved blind hole tapping pulls stringy chips up and out of the hole during tapping
- Made to USCTI and ANSI dimensions
- Neck design for CNC equipment
DESCRIPTION
The WIDIA GTD EM series taps are designed and manufactured to successfully thread high and low volume applications in aluminum, stainless steel, nickel alloys, titanium alloys, mold steels, irons, brass, bronze and plastics. The formulation of premium steel tap base material is unique for every application. The combination of a special geometry, tap surface treatment and premium steep gives these taps the highest level of performance.
WIDIA GTD WIDIA GTD Spiral Flute Tap, High Performance, Series: EF Series TA513344, Measurement System: Metric, Coarse, M14x2, Modified Bottoming Chamfer, 3 Flutes, HSS-E, Black Oxide, Class of Fit: D7, Right Hand Cutting, 1 in Thread Length, 3.59 in Overall Length, 0.429 in Shank Dia, Right Hand Flute Direction, Steel, Gray Cast Iron and Ductile Cast Iron Material Application, Yes Through Coolant (Yes/No)

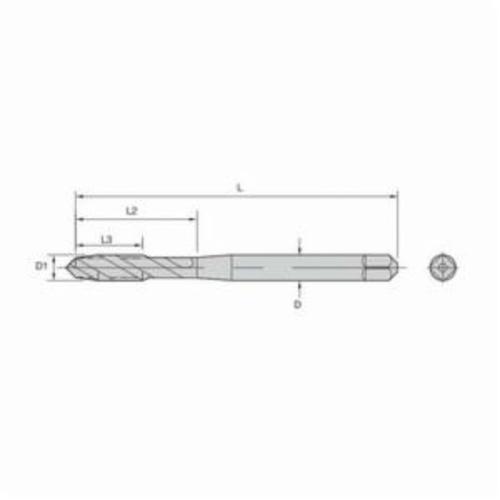

SPECIFICATIONS
| Type | : High Performance |
| Series | : EM-SS™ 8354 |
| Measurement System | : Metric |
| Thread Standard | : Coarse |
| Thread Size | : M14x2 |
| Chamfer Type | : Modified Bottoming |
| Number of Flutes | : 3 |
| Material | : HSS-E |
| Finish/Coating | : Black Oxide |
| Class of Fit | : D7 |
| Cutting Direction | : Right Hand |
| Thread Length | : 1 in |
| Overall Length | : 3.59 in |
| Shank Diameter | : 0.429 in |
| Flute Direction | : Right Hand |
| Material Application | : Steel, Gray Cast Iron and Ductile Cast Iron |
| Through Coolant (Yes/No) | : Yes |
APPLICATION INFO
| Standard/Approvals | : ANSI 302A |
| Application | : For blind hole applications |
| Country of Origin | : JP |
