WIDIA GTD 2746282 2353 Straight Flute Tap, Right Hand Cutting, M10x1.5 Thread, D6 Thread Limit, Bottoming Chamfer, 4 Flutes, TiN Coated, HSS
WIDIA GTD 2746282 2353 Straight Flute Tap, Right Hand Cutting, M10x1.5 Thread, D6 Thread Limit, Bottoming Chamfer, 4 Flutes, TiN Coated, HSS
WIDIA GTD 2746282 2353 Straight Flute Tap, Right Hand Cutting, M10x1.5 Thread, D6 Thread Limit, Bottoming Chamfer, 4 Flutes, TiN Coated, HSS
- Brand: WIDIA GTD
- Mfr# : 2746282
- Item # : GRE 19916
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Most popular style of tap
- Manufactured from select high speed steel for increased wear life
- Can be used by hand or for tapping under power
- Versatile taps for use in general machine tapping or CNC tapping applications
- Standard in right hand sizes in unified and American National thread form
- Hand taps store chips in their flutes next to the chamfered teeth during the threading operation
- For deep hole threading more than 1-1/2 Dia of the tap in depth, use a hand tap with fewer flutes for increased chip handling capabilities
- Bottoming chamfer (1-2P) - for threading close to the bottom of blind holes
DESCRIPTION
WIDIA GTD Straight Flute Tap, Series: 2353, Measurement System: Metric, Coarse, M10x1.5, Bottoming Chamfer, 4 Flutes, HSS, TiN Coated, Class of Fit: 6H, Right Hand Cutting, 1-1/4 in Thread Length, 2.94 in Overall Length, 0.381 in Shank Dia, Steel, Stainless Steel, Cast Iron and Ductile Iron and Aluminum Material Application, D6 Thread Limit, Yes Through Coolant (Yes/No)

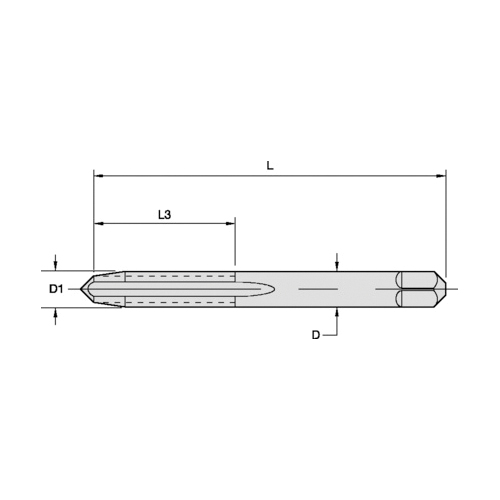

SPECIFICATIONS
| Series | : 2353 |
| Measurement System | : Metric |
| Thread Standard | : Coarse |
| Thread Size | : M10x1.5 |
| Chamfer Type | : Bottoming |
| Number of Flutes | : 4 |
| Material | : HSS |
| Finish/Coating | : TiN Coated |
| Class of Fit | : 6H |
| Cutting Direction | : Right Hand |
| Thread Length | : 1-1/4 in |
| Overall Length | : 2.94 in |
| Shank Diameter | : 0.381 in |
| Material Application | : Steel, Stainless Steel, Cast Iron and Ductile Iron and Aluminum |
| Thread Limit | : D6 |
| Through Coolant (Yes/No) | : Yes |
APPLICATION INFO
| Standard/Approvals | : ANSI Specified|USCTI Standards |
| Application | : For through hole in general machining applications |
| Country of Origin | : US |
