Cleveland® C57189 1011 General Purpose Straight Flute Machine Tap, Right Hand Cutting, M10x1.5 Thread, D6 Thread Limit, Plug Chamfer, 3 Flutes, Bright, HSS
Cleveland® C57189 1011 General Purpose Straight Flute Machine Tap, Right Hand Cutting, M10x1.5 Thread, D6 Thread Limit, Plug Chamfer, 3 Flutes, Bright, HSS
Cleveland® C57189 1011 General Purpose Straight Flute Machine Tap, Right Hand Cutting, M10x1.5 Thread, D6 Thread Limit, Plug Chamfer, 3 Flutes, Bright, HSS
- Brand: Cleveland®
- Mfr# : C57189
- Item # : GRE C57189
- UPC #: 697334571896
- Min. Order Qty: :
- Qty. Interval: :
DESCRIPTION
Cleveland® Straight Flute Machine Tap, General Purpose, Series: 1011, Measurement System: Metric, Ground Thread Standard, M10x1.5 Thread, Plug Chamfer, 3 Flutes, HSS, Bright, Class of Fit: 6H, Right Hand Cutting Direction, 31.75 mm Thread Length, 74.61 mm Overall Length, 9.68 mm Shank Diameter, Steel and Non-Ferrous Materials Material Application, D6 Thread Limit
SPECIFICATIONS
| Type | : General Purpose |
| Series | : 1011 |
| Measurement System | : Metric |
| Thread Standard | : Ground |
| Thread Size | : M10x1.5 |
| Chamfer Type | : Plug |
| Number of Flutes | : 3 |
| Material | : HSS |
| Finish/Coating | : Bright |
| Class of Fit | : 6H |
| Cutting Direction | : Right Hand |

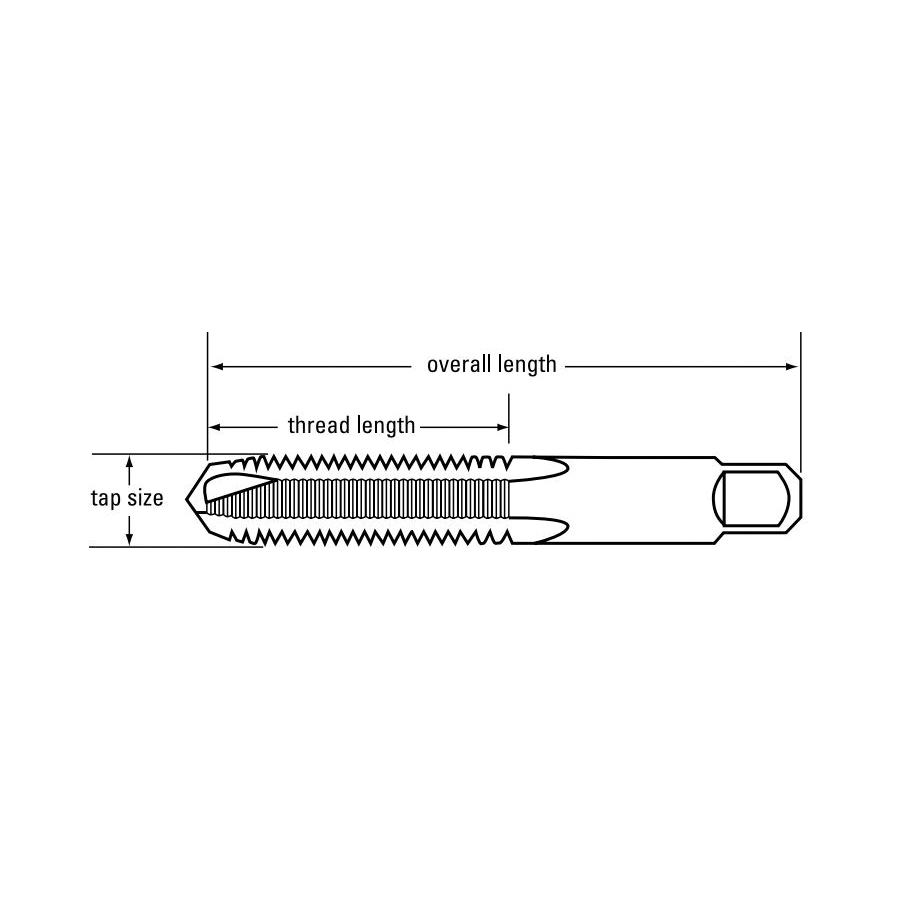

| Thread Length | : 31.75 mm |
| Overall Length | : 74.61 mm |
| Shank Diameter | : 9.68 mm |
| Material Application | : Steel and Non-Ferrous Materials |
| Thread Limit | : D6 |
APPLICATION INFO
| Standard/Approvals | : USCTI 302A |
| Application | : For through hole applications |
| Country of Origin | : US |
