WIDIA GTD 2865722 5353 Straight Flute Tap, Right Hand Cutting, M8x1.25 Thread, D5 Thread Limit, Bottoming Chamfer, 4 Flutes, Uncoated, HSS
WIDIA GTD 2865722 5353 Straight Flute Tap, Right Hand Cutting, M8x1.25 Thread, D5 Thread Limit, Bottoming Chamfer, 4 Flutes, Uncoated, HSS
WIDIA GTD 2865722 5353 Straight Flute Tap, Right Hand Cutting, M8x1.25 Thread, D5 Thread Limit, Bottoming Chamfer, 4 Flutes, Uncoated, HSS
- Brand: WIDIA GTD
- Mfr# : 2865722
- Item # : GRE 14799
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Most popular style of tap
- Manufactured from select high speed steel for increased wear life
- Can be used by hand or for tapping under power
- Versatile taps for use in general machine tapping or CNC tapping applications
- Standard in right hand sizes in unified and American National thread form
- Hand taps store chips in their flutes next to the chamfered teeth during the threading operation
- For deep hole threading more than 1-1/2 Dia of the tap in depth, use a hand tap with fewer flutes for increased chip handling capabilities
DESCRIPTION
WIDIA GTD Straight Flute Tap, Series: 5353, Measurement System: Metric, Coarse, M8x1.25, Bottoming Chamfer, 4 Flutes, HSS, Uncoated, Class of Fit: 6H, Right Hand Cutting, 1-1/8 in Thread Length, 2.72 in Overall Length, 0.318 in Shank Dia, Cast Iron and Non-Ferrous Materials Material Application, D5 Thread Limit, Yes Through Coolant (Yes/No)
SPECIFICATIONS
| Series | : 5353 |
| Measurement System | : Metric |
| Thread Standard | : Coarse |
| Thread Size | : M8x1.25 |
| Chamfer Type | : Bottoming |
| Number of Flutes | : 4 |
| Material | : HSS |
| Finish/Coating | : Uncoated |
| Class of Fit | : 6H |
| Cutting Direction | : Right Hand |

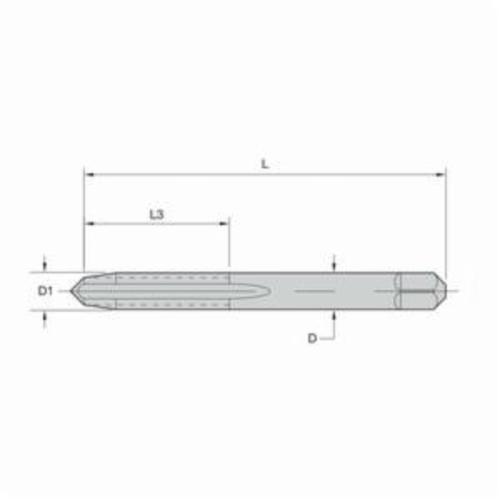

| Thread Length | : 1-1/8 in |
| Overall Length | : 2.72 in |
| Shank Diameter | : 0.318 in |
| Material Application | : Cast Iron and Non-Ferrous Materials |
| Thread Limit | : D5 |
| Through Coolant (Yes/No) | : Yes |
APPLICATION INFO
| Standard/Approvals | : ANSI 302|USCTI Standard |
| Application | : For blind hole in general machining applications |
| Country of Origin | : US |
