Fluke® I310S Current Probe, 30/300 A/300 V AC/DC, 20 kHz

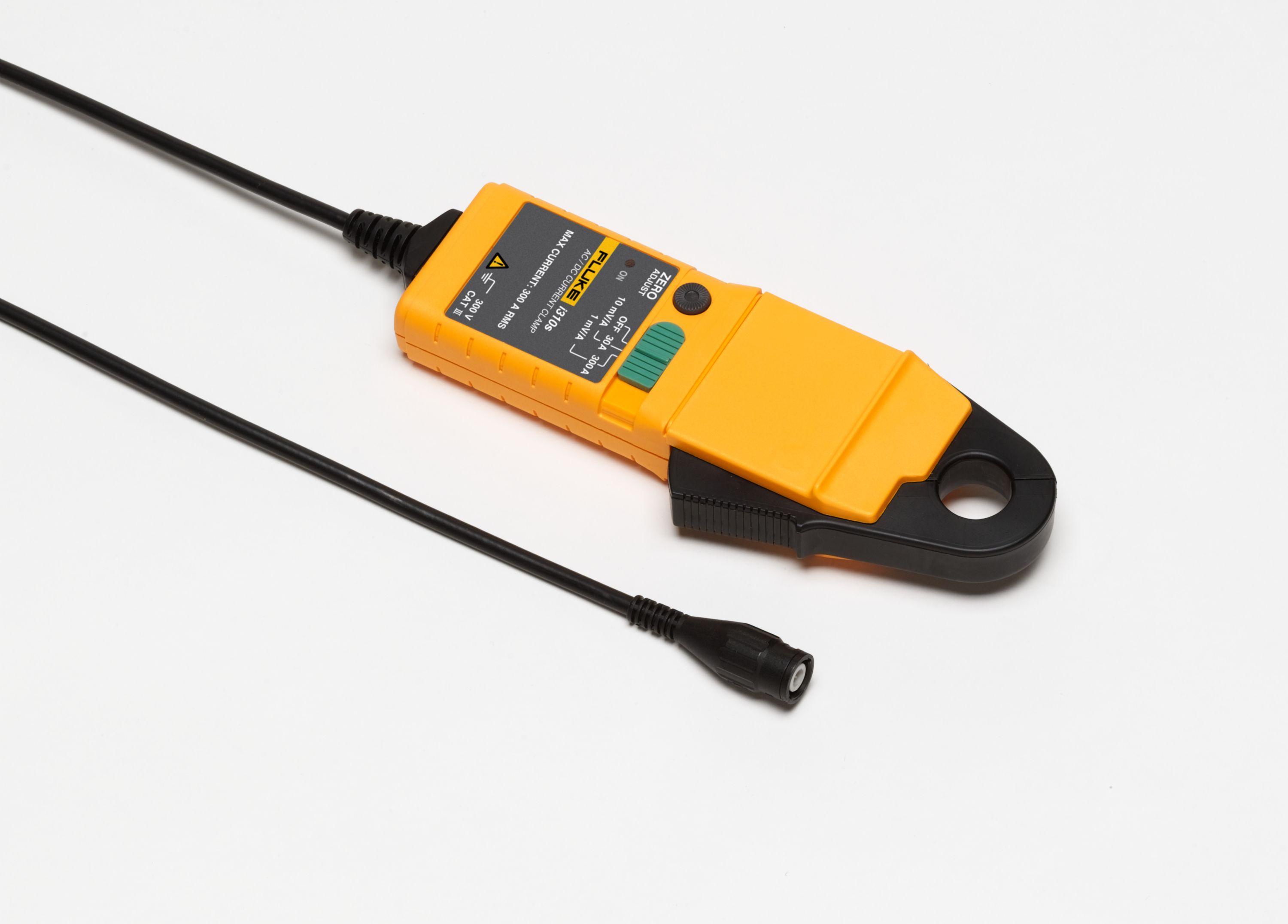

Fluke® I310S FLU I310S

Fluke® I310S Current Probe, 30/300 A/300 V AC/DC, 20 kHz

Fluke® I310S Current Probe, 30/300 A/300 V AC/DC, 20 kHz

  • Brand: Fluke®
  • Mfr# : I310S
  • Item # : FLU I310S
  • UPC #: 095969401241
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fluke_I3000_FLEX_4PK_Full_Engineering_Drawing.pdf
  • pdf Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fluke_I30S_Specification_Sheet.pdf

FEATURES

  • 30 A and 300 A AC rms or +/- 45 A and 450 A DC current range
  • 600A AC rms maximum inrush current
  • 10 mV/A at 30 A, 1 mV/A at 300 A output sensitivity
  • 1 kHz bandwidth to meet accuracy specification
  • < 2 degrees phase shift below 1 kHz
  • +/-50 mA at 30 A, +/-100 mA at 300 A resolution
  • > 10 kOhm and <= 100 pF load impedance
  • +/- 1.5 % relative to center reading conductor position sensitivity
  • (Small signal) DC to 20 kHz (- 0.5 dB) frequency
  • +/- 0.1% of reading/deg C temperature coefficient
  • 9 VDC alkaline, MN1604/PP3, 30 hr low battery indicator power supply
  • 300 VAC rms or DC working voltage
  • 19 mm diameter maximum conductor
  • Safety BNC connector output connection
  • Manual adjust via thumbwheel output zero
  • 2 m cable length
  • -20 to 85 deg C storage temperature range (with battery removed)
  • 15 to 85 % non-condensing operating humidity
  • 300 Vrms, Category III, pollution degree 2

DESCRIPTION

The i310s current probe is based on Hall Effect technology for use in measurement of both DC and AC current. The i310s may be used in conjunction with oscilloscopes and other suitable recording instruments for accurate non-intrusive current measurement.

Fluke® Current Probe, 30/300 A/300 V AC/DC Electrical Rating, 20 kHz Frequency, +/-1% +/- 50 mA/+/-1% +/- 300 mA at 23 deg C AC Current Accuracy, 9 VDC Alkaline Battery Power Source, 14 to 122 deg F Operating, 7.2 in L x 2.8 in W x 1 in H Dimensions

SPECIFICATIONS

Electrical Ratings      :    30/300 A/300 V AC/DC
Frequency Rating      :    20 kHz
AC Current Accuracy      :    +/-1% +/- 50 mA/+/-1% +/- 300 mA at 23 deg C
Power Source      :    9 V DC Alkaline Battery
Operating Temperature      :    14 to 122 deg F
Dimensions      :    7.2 in L x 2.8 in W x 1 in H

APPLICATION INFO

Standard/Approvals      :    CE Marked|EN 61010-1/61010-2-032/61010-031/EMC EN-61326
