Lee Spring® 250-042-562 Belleville Spring Washer, 1/4 in Nominal, Stainless Steel
Lee Spring® 250-042-562 Belleville Spring Washer, 1/4 in Nominal, Stainless Steel
- Brand: Lee Spring®
- Mfr# : 250-042-562
- Item # : LEE 250-042-562
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- A Belleville spring washer is a washer in the form of a cone, having constant material thickness and used as a compression spring
- Unlike compression springs Belleville spring washers provide exceptionally high loads in restricted spaces
- To minimize friction and optimize load ensure stacks of springs are guided over a shaft or in a cylinder
- Type 300 stainless steel is slightly magnetic and is recommended for any application where the temperature is below 500 deg F
- Used to solve vibration, thermal expansion, relaxation and creep problems
- Adjust the load and deflection of a washer stack by adding or removing individual washers and/or the sequence in which they are used, whether in series or parallel
- Stack in parallel to increase load
- Stack in series to increase deflection
DESCRIPTION

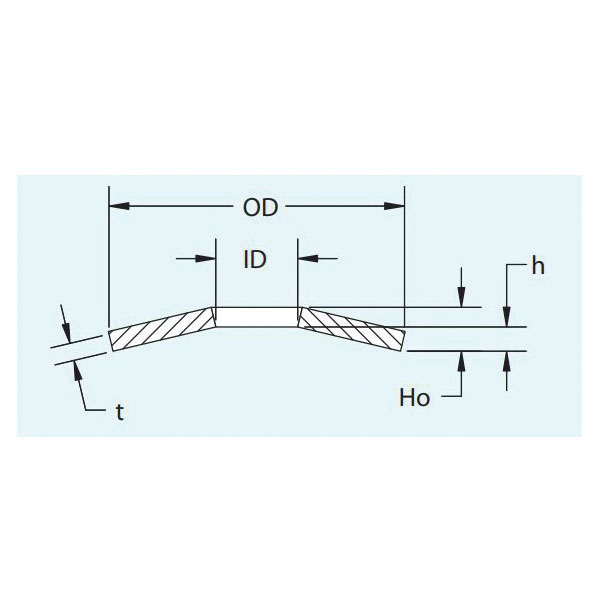

Lee Spring® Belleville Spring Washer, Measurement System: Imperial, 1/4 in Nominal, Stainless Steel, 1/4 in ID, 0.562 in OD, 0.042 in Thickness, 519.9 lb at Flat, Material Grade: 300, Passivated, 0.055 in Overall Height
SPECIFICATIONS
| Measurement System | : Imperial |
| Nominal Size | : 1/4 in |
| Material | : Stainless Steel |
| Inside Diameter | : 1/4 in |
| Outside Diameter | : 0.562 in |
| Thickness | : 0.042 in |
| Load at Flat | : 519.9 lb |
| Material Grade | : 300 |
| Finish | : Passivated |
| Overall Height | : 0.055 in |
APPLICATION INFO
| Standard/Approvals | : ASTM A967 |
