Cleveland® C41609 HG-2 Center Cutting General Purpose Single End Square End End Mill, 5/16 in Dia Cutter, 9/16 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, Uncoated

Cleveland® C41609 GRE C41609

Cleveland® C41609 HG-2 Center Cutting General Purpose Single End Square End End Mill, 5/16 in Dia Cutter, 9/16 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, Uncoated

Cleveland® C41609 HG-2 Center Cutting General Purpose Single End Square End End Mill, 5/16 in Dia Cutter, 9/16 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, Uncoated

  • Brand: Cleveland®
  • Mfr# : C41609
  • Item # : GRE C41609
  • UPC #: 697334416098
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • 2-Flute end mills have greater chip ejection capacity and are ideal for slotting
  • Coatings reduce heat and abrasion to increase tool life
  • The increased lubricity of the coating surface reduces material adhesion and built-up edge, enabling even higher feed rates
  • Coatings reduce the amount of torque required for machining to allow more efficient use of equipment
  • Applicable on alloy steel, tool steel, carbon steel and cast iron

DESCRIPTION

The CLEVELAND HG-2 single end finisher tip features high-speed steel construction with a bright finish and a square end, designed in ANSI sizes to ensure efficient performance in general-purpose machining.

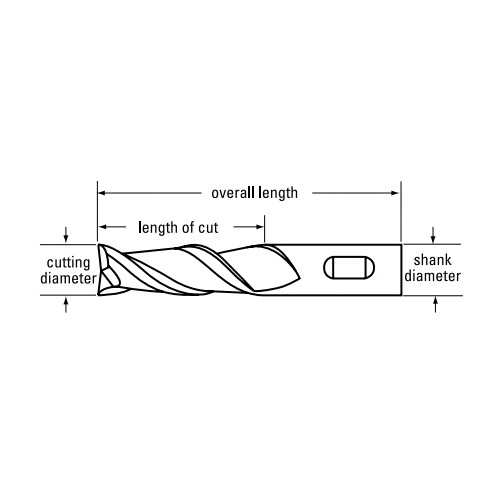

Cleveland® End Mill, Center Cutting General Purpose Single End Square End, Series: HG-2, 5/16 in Diameter Cutter, 2-1/2 in Overall Length, 9/16 in Length of Cut, 2 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight/Weldon Flat Shank, HSS, Uncoated

SPECIFICATIONS

Type      :    Center Cutting General Purpose Single End Square End
Series      :    HG-2
Cutter Diameter      :    5/16 in
Overall Length      :    2-1/2 in
Length of Cut      :    9/16 in
Number of Flutes      :    2
Flute Type      :    Spiral
Shank Diameter      :    3/8 in
Cutting Direction      :    Right Hand
Helix Angle      :    30 deg
Shank Type      :    Straight/Weldon Flat
Material      :    HSS
Finish      :    Uncoated

APPLICATION INFO

Standard/Approvals      :    ANSI Specified
Application      :    General Finishing Applications
Country of Origin      :    US
