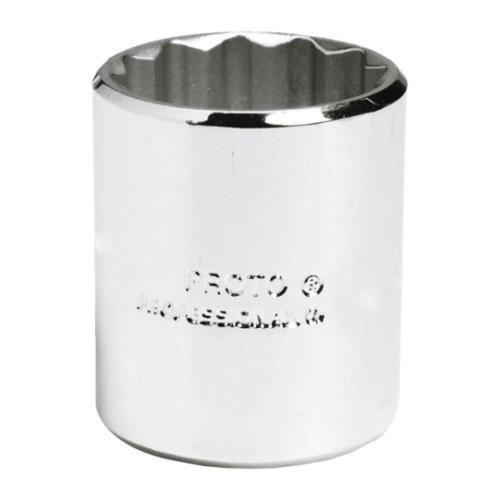

Proto® TorquePlus™ J5217M Standard Length Socket, Metric, 3/8 in Square Drive, 17 mm
Proto® TorquePlus™ J5217M Standard Length Socket, Metric, 3/8 in Square Drive, 17 mm
- Brand: Proto®
- Mfr# : J5217M
- Item # : STP J5217M
- UPC #: 662679161538
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
DESCRIPTION
Proto® TorquePlus™ Socket, Standard Length, No Impact Rated, Measurement System: Metric, Square Drive, 3/8 in Drive, 17 mm Socket, 28.5 mm Overall Length, 13.5 mm Opening Depth, 23.7 mm Drive End Width, 23.7 mm Socket End Width, Ball Locking, 12 Points, 11 mm Bolt Clearance Depth, Alloy Steel, Full Polished
SPECIFICATIONS
| Type | : Standard Length |
| Impact Rated | : No |
| Measurement System | : Metric |
| Drive Type | : Square |
| Drive Size | : 3/8 in |
| Socket Size | : 17 mm |
| Overall Length | : 28.5 mm |
| Opening Depth | : 13.5 mm |
| Drive End Width | : 23.7 mm |
| Socket End Width | : 23.7 mm |
| Locking Type | : Ball |
| Number of Points | : 12 |
| Bolt Clearance Depth | : 11 mm |
| Material | : Alloy Steel |
| Finish | : Full Polished |
APPLICATION INFO
| Standard/Approvals | : ASME B107.110-2012|ASME B107.5M|AS954E S3.8.1 |
| Application | : For use on stubborn or damaged fasteners and also on fasteners made from soft materials |
| Country of Origin | : US |
