Seco 02615902 Turning Insert, ANSI Code: DNMP432-MF1 TS2000, DNMG Insert, Material Grade: S, 150408 Insert, Diamond Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturer's Grade: TS2000

Seco 02615902 MCT 38973

Seco 02615902 Turning Insert, ANSI Code: DNMP432-MF1 TS2000, DNMG Insert, Material Grade: S, 150408 Insert, Diamond Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturer's Grade: TS2000

Seco 02615902 Turning Insert, ANSI Code: DNMP432-MF1 TS2000, DNMG Insert, Material Grade: S, 150408 Insert, Diamond Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturer's Grade: TS2000

  • Brand: Seco
  • Mfr# : 02615902
  • Item # : MCT 38973
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

DESCRIPTION

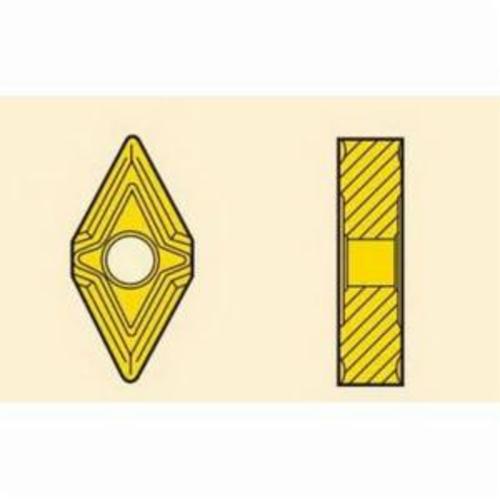

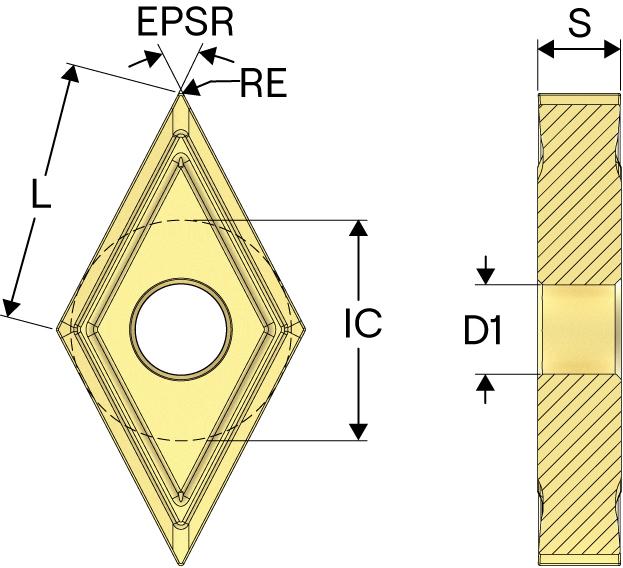

Seco Turning Insert, DNMG Insert, 150408 Insert, Diamond, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, Negative Rake, MF1 Chipbreaker, 0.8 mm Corner Radius, 5.15 mm Hole Dia, Manufacturer's Grade: TS2000, ANSI Code: DNMP432-MF1 TS2000, ISO Code: DNMG150408-MF1 TS2000, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: S, For Use On: Super Alloys and Titanium

SPECIFICATIONS

Insert Style      :    DNMG
Insert Size      :    150408
Shape      :    Diamond
Maximum Depth of Cut      :    5.25 mm
Inscribed Circle      :    12.7 mm
Thickness      :    4.76 mm
Seat Size      :    15
Rake      :    Negative
Chipbreaker      :    MF1
Corner Radius      :    0.8 mm
Hole Diameter      :    5.15 mm
ANSI Code      :    DNMP432-MF1 TS2000
ISO Code      :    DNMG150408-MF1 TS2000
Included Angle      :    55 deg
Relief Angle      :    0 deg
Cutting Direction      :    Neutral
Material      :    Carbide
Finish      :    PVD-TiAlN+TiN Coated
Material Grade      :    S
For Use On      :    Super Alloys and Titanium

APPLICATION INFO

Application      :    Medium and Finishing
Country of Origin      :    SE
