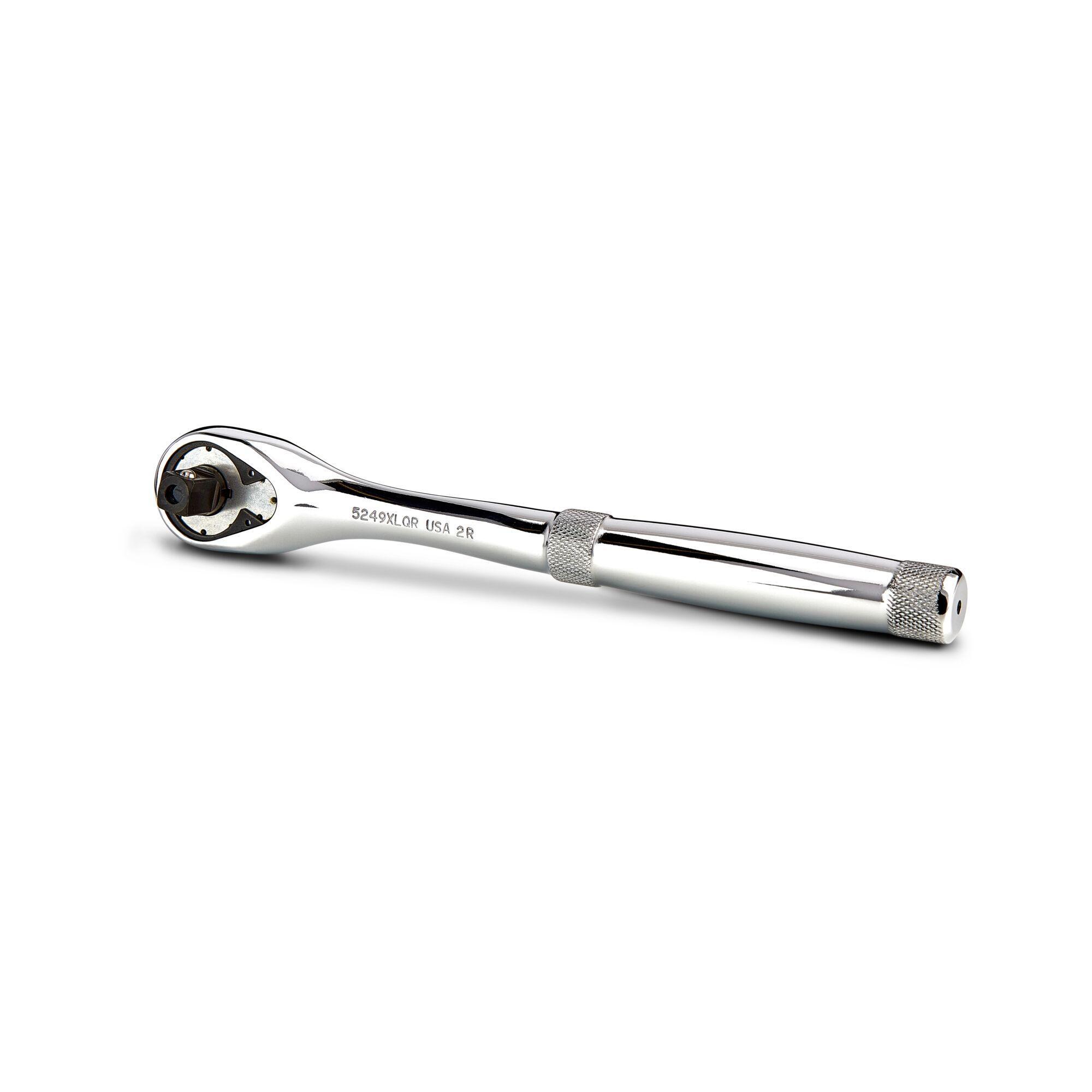

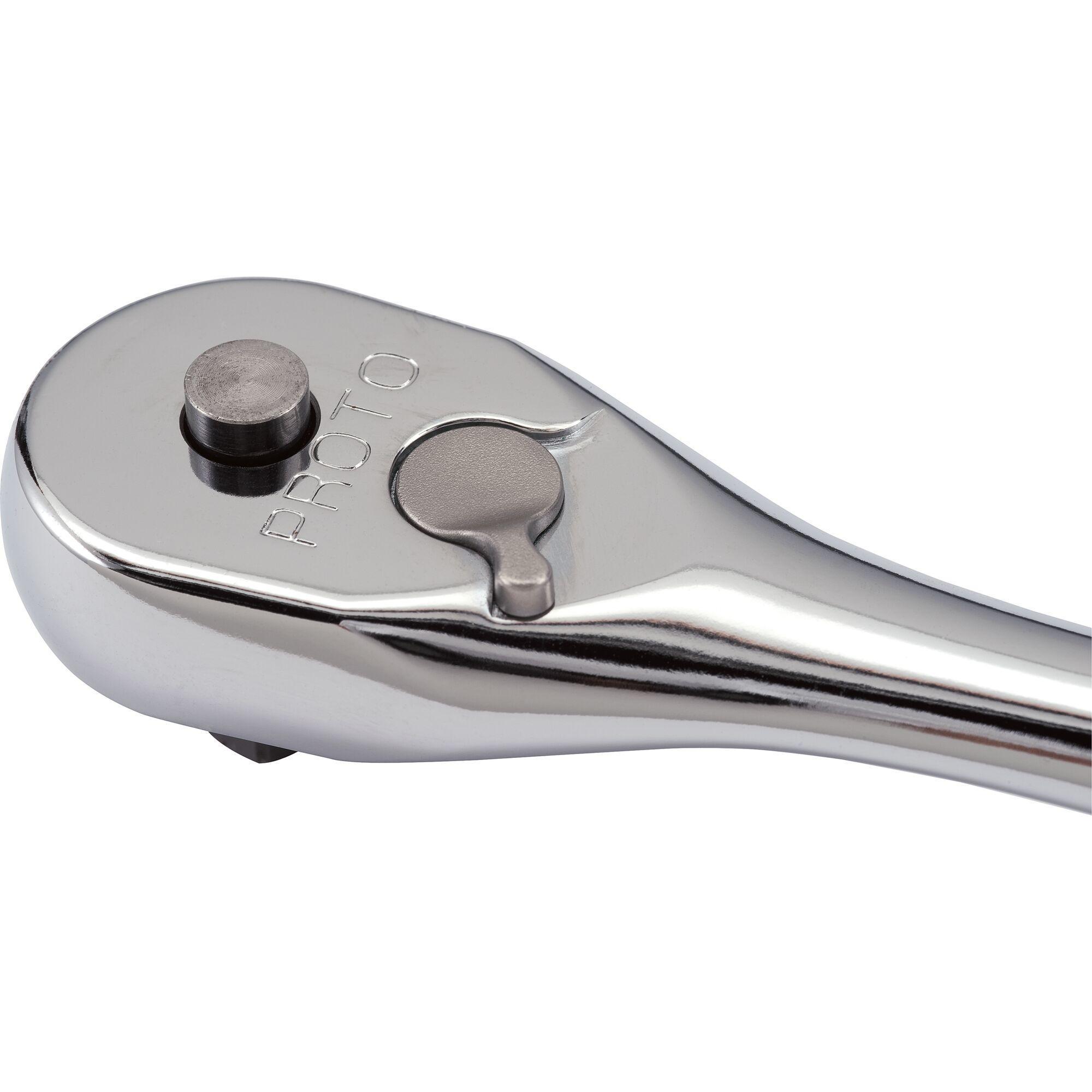

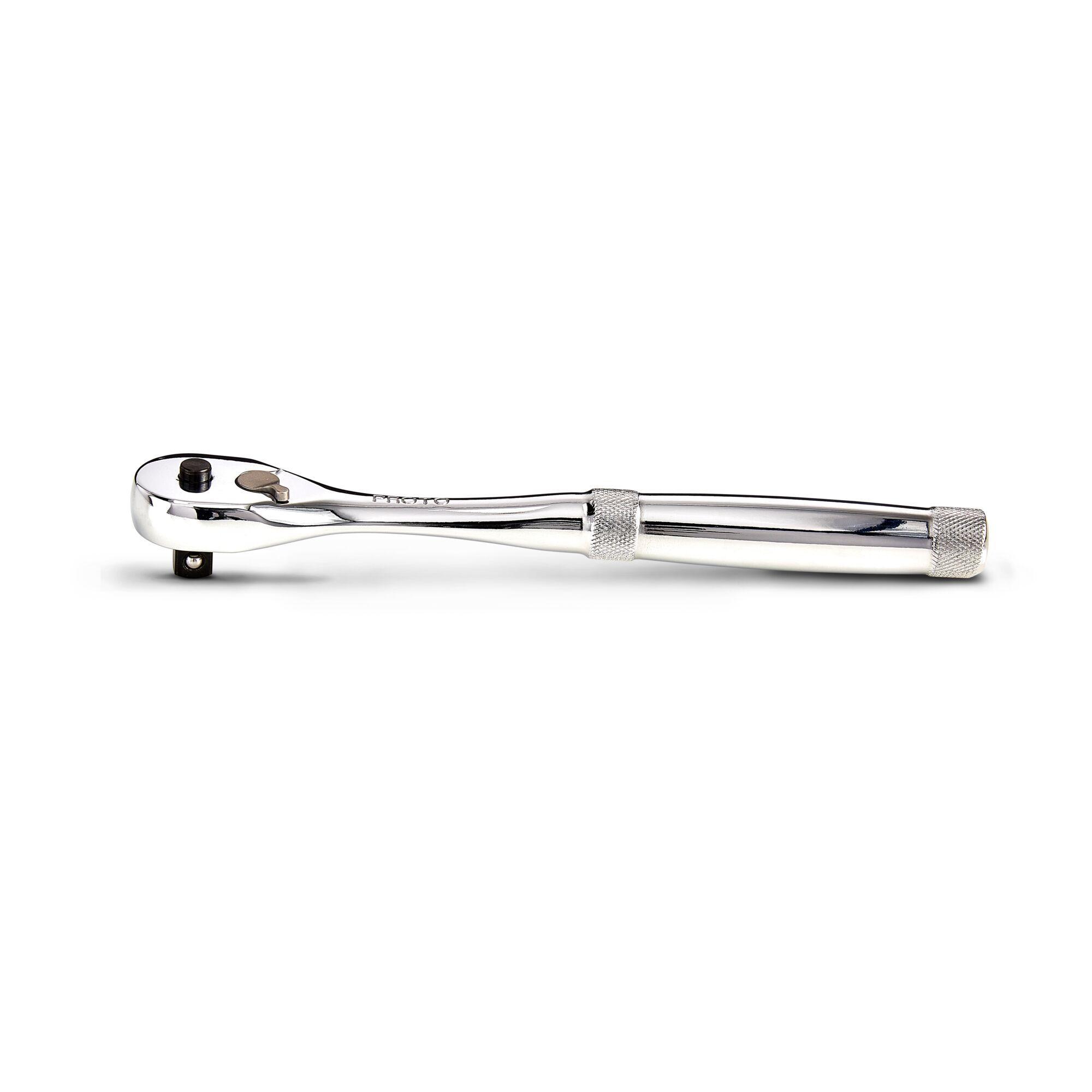

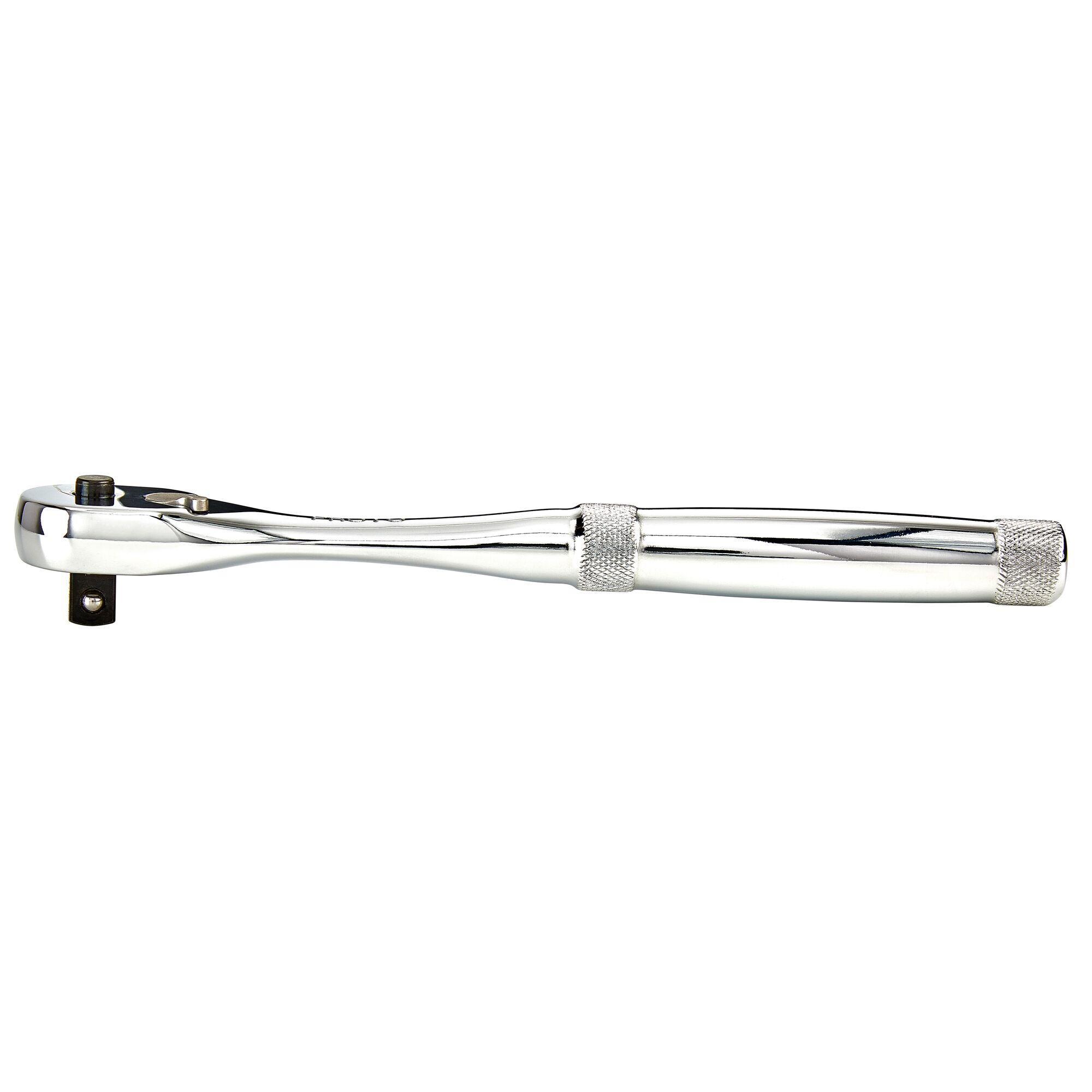

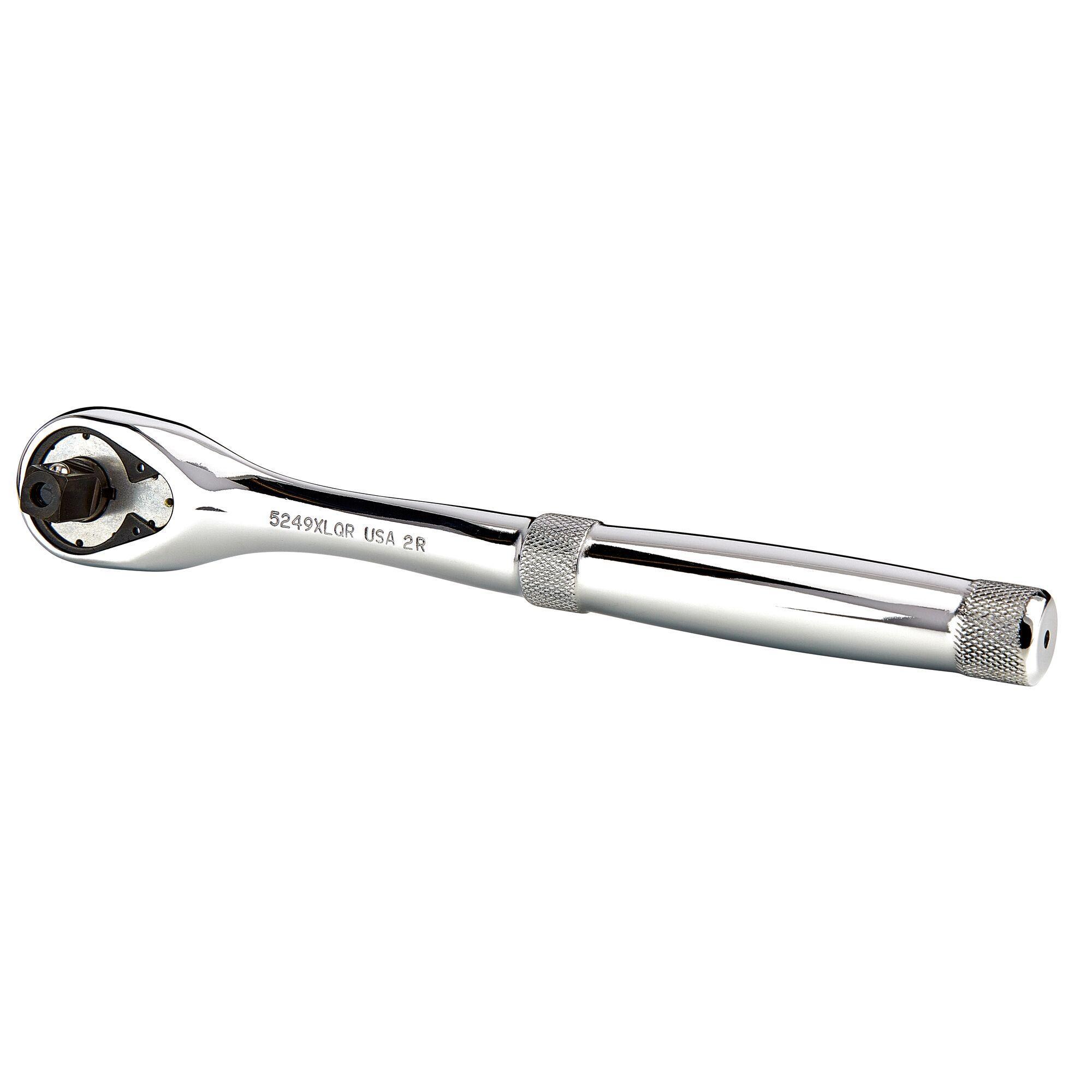

Proto® J5249XLQR Non-Insulated Hand Ratchet, Imperial, 3/8 in Drive, Pear Head, 8-1/2 in OAL, Steel, Full Polished, ASME B107.10M
Proto® J5249XLQR Non-Insulated Hand Ratchet, Imperial, 3/8 in Drive, Pear Head, 8-1/2 in OAL, Steel, Full Polished, ASME B107.10M
Proto® J5249XLQR Non-Insulated Hand Ratchet, Imperial, 3/8 in Drive, Pear Head, 8-1/2 in OAL, Steel, Full Polished, ASME B107.10M
- Brand: Proto®
- Mfr# : J5249XLQR
- Item # : STP J5249XLQR
- UPC #: 662679006075
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Small pear head design for access in tight, hard to reach work areas
- 45-tooth gear provides balance between 8 deg articulation angle and high torque carrying capacity
- Sealed design helps prevent debris from entering ratchet mechanism reducing wear
- Helps to keep lubrication contained within the components
- Patent pending design
- Low profile reversing lever design for quick, 1-hand operation
- Contoured, ergonomically designed handle for comfort
- Knurled bands allow for increased grip and slip resistance
- Double nickel chrome plated for enhanced corrosion protection
- Field repairable
DESCRIPTION
Proto® Hand Ratchet, Non-Insulated, Measurement System: Imperial, 3/8 in Drive, 8-1/2 in Overall Length, Pear Head Shape, 8 deg Minimum Arc Swing, 45 Geared Teeth, Ergonomic/Knurled Slip Resistant Grip Handle, Yes Quick Release Head, Specifications Met: ASME B107.10M, Yes Reversible, Steel, Full Polished
SPECIFICATIONS
| Type | : Non-Insulated |
| Measurement System | : Imperial |
| Drive Size | : 3/8 in |
| Overall Length | : 8-1/2 in |
| Head Shape | : Pear |
| Minimum Arc Swing | : 8 deg |
| Number of Geared Teeth | : 45 |
| Handle Type | : Ergonomic/Knurled Slip Resistant Grip |
| Quick Release Head | : Yes |
| Specifications Met | : ASME B107.10M |
| Reversible | : Yes |
| Material | : Steel |
| Finish | : Full Polished |
APPLICATION INFO
| Standard/Approvals | : ASME B107.10M |
| Country of Origin | : US |
