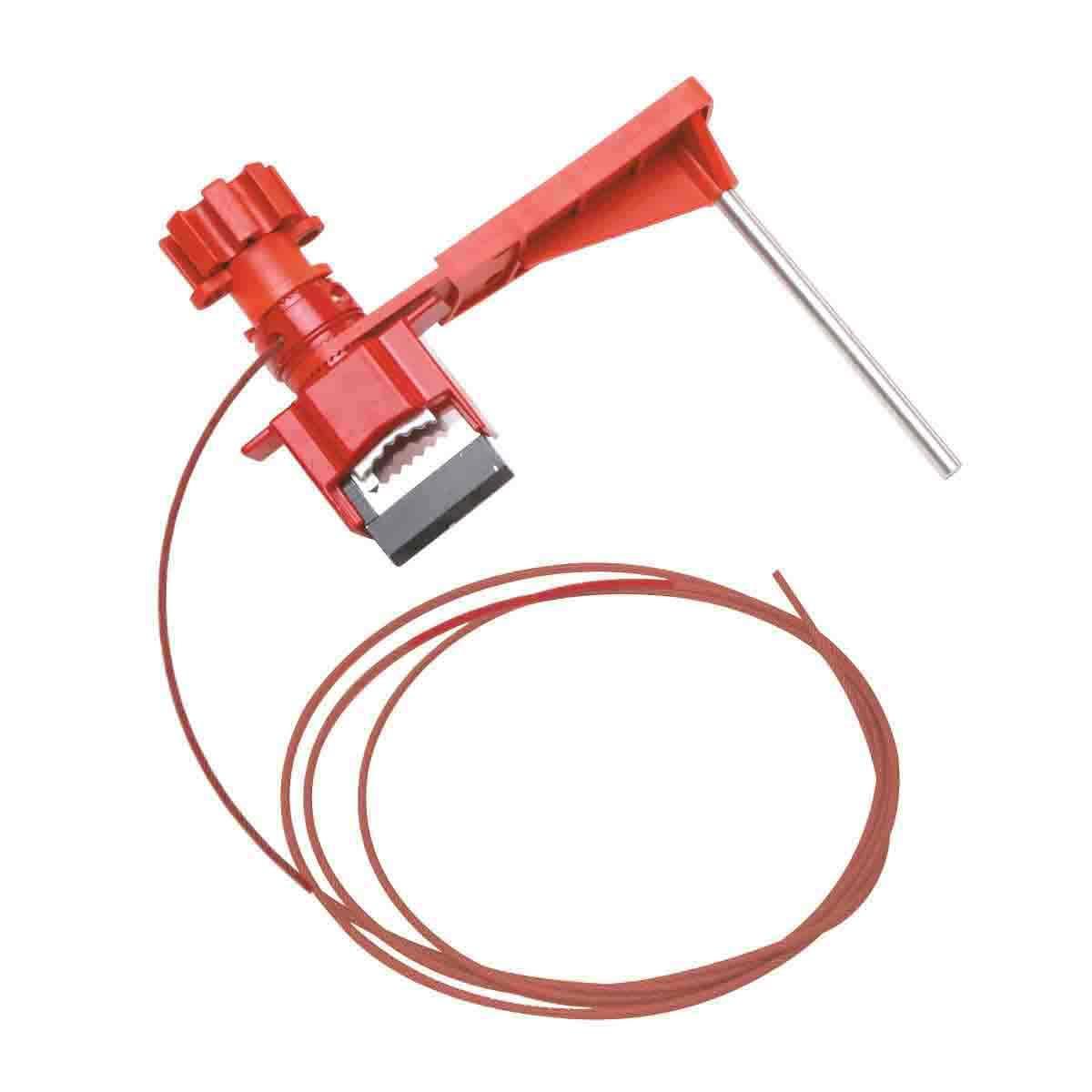

Brady® 51390 Small Universal Ball Valve Lockout Cable Attachment With 8 ft Nylon Cable and Blocking Arm, Fits Min Handle Size: 1 in W x 0.6 in THK, Fits Max Handle Size: 1 in W x 0.6 in THK, 1 Padlocks, 0 deg F Min Temperature, 250 deg F Max
Brady® 51390 Small Universal Ball Valve Lockout Cable Attachment With 8 ft Nylon Cable and Blocking Arm, Fits Min Handle Size: 1 in W x 0.6 in THK, Fits Max Handle Size: 1 in W x 0.6 in THK, 1 Padlocks, 0 deg F Min Temperature, 250 deg F Max
Brady® 51390 Small Universal Ball Valve Lockout Cable Attachment With 8 ft Nylon Cable and Blocking Arm, Fits Min Handle Size: 1 in W x 0.6 in THK, Fits Max Handle Size: 1 in W x 0.6 in THK, 1 Padlocks, 0 deg F Min Temperature, 250 deg F Max
- Brand: Brady®
- Mfr# : 51390
- Item # : BDY 51390
- UPC #: 754473513900
- Min. Order Qty: :
- Qty. Interval: :
VIDEO LINK
Technical Bulletin
FEATURES
- Lockout all types of valves with a single universal device, the universal valve lockout system from Brady is rugged, easy to use and replaces the need for multiple devices
- Made of rugged industrial-grade steel and nylon for extra impact and chemical resistance
- Versatile open ended clamp fits over most closed rings and wide handles

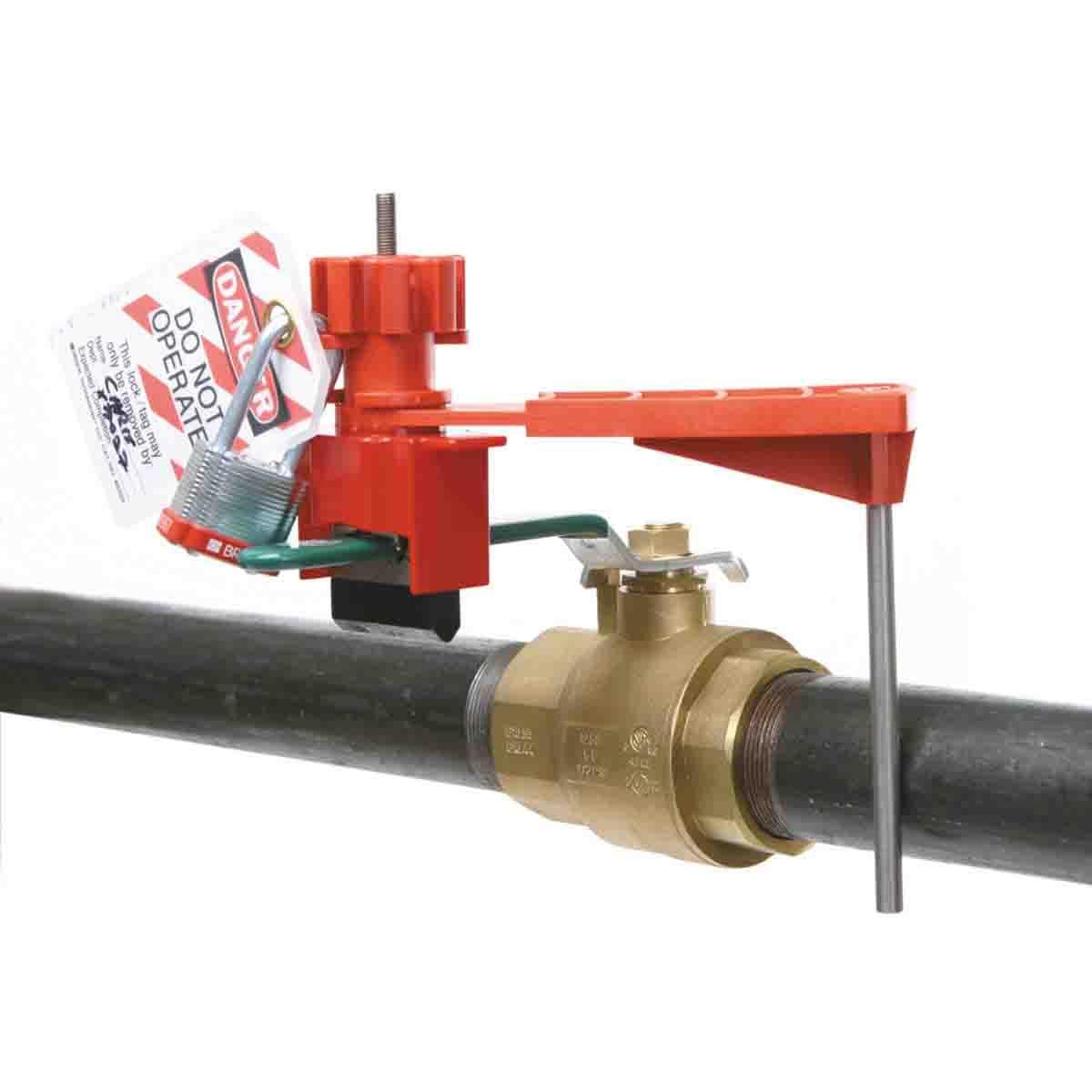

- Blocking arm (included) locks out quarter-turn ball values;add a second optional blocking arm (sold separately) to lock out 3-, 4- or 5-way valves

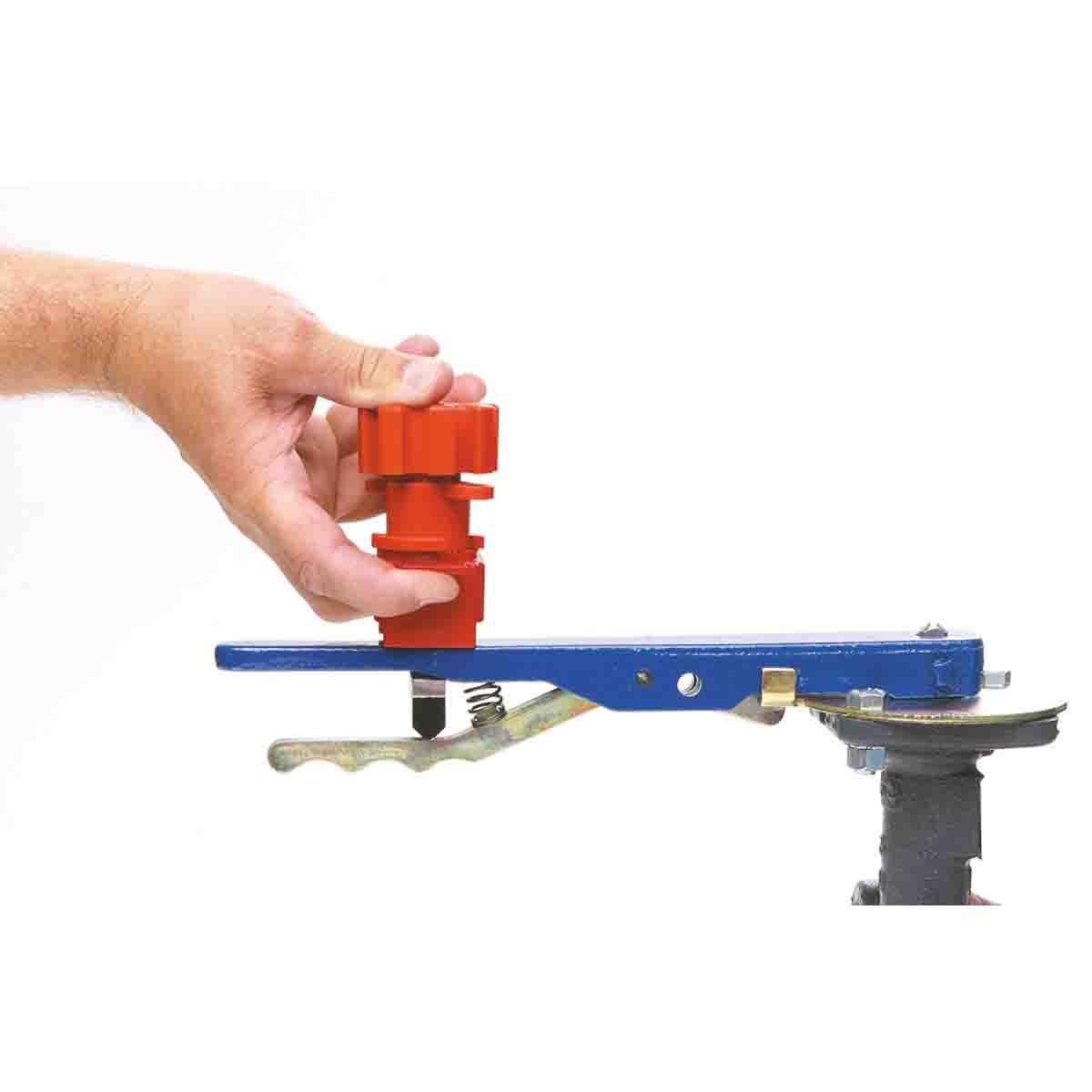

- Device can also lock out large levers, T handles and other hard-to-secure mechanical devices
DESCRIPTION
From universal valve lockouts to adjustable gate valve lockouts, Brady® offers a full line of devices to shut off all types of pressured valves. Gate Valve Lockout devices deny access and cover the valve handle. With ball valve lockouts and Brady®'s standard, quarter turn Ball Valve Lockout devices, a comprehensive series of options are available from the global leader in lockout tagout solutions.
Brady® Ball Valve Lockout Cable Attachment, Small Universal, Fits Minimum Handle Size: 1 in W x 0.6 in THK, Fits Maximum Handle Size: 1 in W x 0.6 in THK, 1 Padlocks Maximum, 0.39 in Padlock Shackle Maximum Diameter, LOTO-24 Brass/Fiberglass Reinforced Nylon/Stainless Steel, Red, 0 deg F Minimum, 250 deg F Maximum
SPECIFICATIONS
| Type | : Small Universal |
| Fits Minimum Handle Size | : 1 in W x 0.6 in THK |
| Fits Maximum Handle Size | : 1 in W x 0.6 in THK |
| Maximum Number of Padlocks | : 1 |
| Padlock Shackle Maximum Diameter | : 0.39 in |
| Material | : LOTO-24 Brass/Fiberglass Reinforced Nylon/Stainless Steel |
| Color | : Red |
| Minimum Temperature | : 0 deg F |
| Maximum Temperature | : 250 deg F |
APPLICATION INFO
| Standard/Approvals | : ANSI Z244.1|ASSE Z244.1|OSHA 29 CFR 1910.147 |
| Application | : Mechanical Risk Lockout Applications |
| Country of Origin | : CN |
