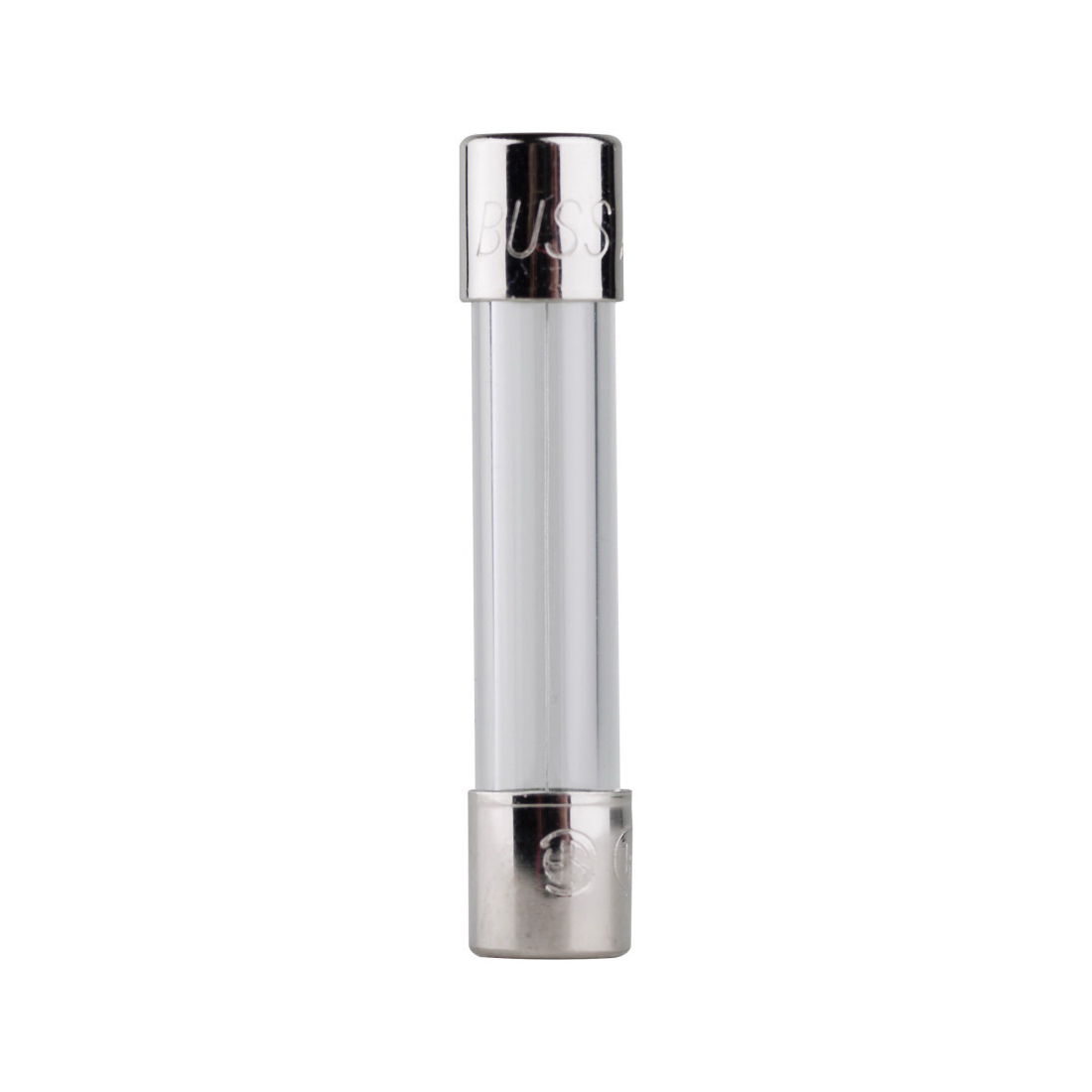

Bussmann AGC-1 Electronic Small Dimension Fast Acting Fuse With Nickel Plated Brass End Cap, 1 A, 250 V AC, 35 A, 10 kA Interrupt, Cylindrical Body
Bussmann AGC-1 Electronic Small Dimension Fast Acting Fuse With Nickel Plated Brass End Cap, 1 A, 250 V AC, 35 A, 10 kA Interrupt, Cylindrical Body
Bussmann AGC-1 Electronic Small Dimension Fast Acting Fuse With Nickel Plated Brass End Cap, 1 A, 250 V AC, 35 A, 10 kA Interrupt, Cylindrical Body
- Brand: Bussmann
- Mfr# : AGC-1
- Item # : BUS AGC-1
- UPC #: 051712703802
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
FEATURES
- Fast acting for maximum component protection
- Wide amp/volt ratings allow versatility of protecting electronic circuits
- 35 A at 250 VAC, 10 kA at 125 VAC interrupt rating
- 60 min maximum at 135%, 120 s maximum at 200% response time
DESCRIPTION
Bussmann Fast Acting Fuse, Electronic Small Dimension, Series: AGC, Non-Indicating, 1 A, 250 V AC, 35 A, 10 kA Interrupt, 6 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Glass, 1/4 in Dia x 1-1/4 in L Body
SPECIFICATIONS
| Type | : Electronic Small Dimension |
| Series | : AGC |
| Indicating/Non-Indicating | : Non-Indicating |
| Amperage Rating | : 1 A |
| Voltage Rating | : 250 V AC |
| Interrupt Rating | : 35 A, 10 kA |
| Response Time | : 6 min, 120 s |
| Terminal Type | : Ferrule |
| Mounting Type | : Holder |
| Body Type | : Cylindrical |
| Material | : Glass |
| Body Size | : 1/4 in Dia x 1-1/4 in L |
APPLICATION INFO
| Standard/Approvals | : CSA Certified|CSA Class 1422-01|UL 053787|CE Certified|UL 248-14 Guide JDYX|UL File No. E19180 |
| Application | : Electronic Circuit Applications |
| Country of Origin | : TW |
