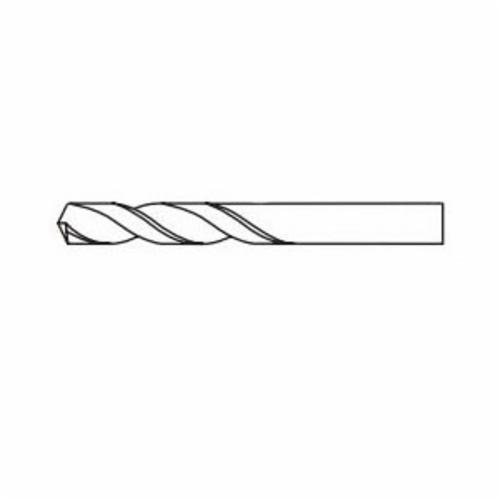

Chicago-Latrobe® 50868 559 Heavy Duty Screw Machine Drill, #13 Drill - Wire, 0.185 in Drill - Decimal Inch, M42 HSS-Co 8, Straw

Chicago-Latrobe® 50868 GRE 50868

Chicago-Latrobe® 50868 559 Heavy Duty Screw Machine Drill, #13 Drill - Wire, 0.185 in Drill - Decimal Inch, M42 HSS-Co 8, Straw

Chicago-Latrobe® 50868 559 Heavy Duty Screw Machine Drill, #13 Drill - Wire, 0.185 in Drill - Decimal Inch, M42 HSS-Co 8, Straw

  • Brand: Chicago-Latrobe®
  • Mfr# : 50868
  • Item # : GRE 50868
  • UPC #: 662355508688
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • Heavy duty geometry for drilling tougher materials by hand or machine
  • Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates
  • P3 split point is self-centering for reduced thrust and easier penetration
  • Straw finish allows for easy identification of cobalt tools

DESCRIPTION

Chicago-Latrobe® Screw Machine Drill, Heavy Duty, Series: 559, Imperial, #13 Drill - Wire, 0.185 in Drill - Decimal Inch, 2-3/16 in Overall Length, 3XD Cutting Depth, 2 Flutes, Right Spiral Flute, 1-1/8 in Flute Length, 0.185 in Dia x 1.0625 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8 Cutting Edge, M42 HSS-Co 8, Straw, Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel

SPECIFICATIONS

Type      :    Heavy Duty
Series      :    559
Drill Diameter Measurement System      :    Imperial
Drill Size - Wire      :    #13
Drill Size - Decimal Inch      :    0.185 in
Overall Length      :    2-3/16 in
Cutting Depth      :    3XD
Number of Flutes      :    2
Flute Type      :    Right Spiral
Flute Length      :    1-1/8 in
Shank Size      :    0.185 in Dia x 1.0625 in L
Shank Type      :    Straight
Point Angle      :    135 deg
Point Type      :    Split
Cutting Direction      :    Right Hand
Cutting Edge Material      :    M42 HSS-Co 8
Material      :    M42 HSS-Co 8
Finish      :    Straw
Applicable Materials      :    Alloy Steel, Carbon Steel, Cast Iron and Tool Steel

APPLICATION INFO

Application      :    For drilling tougher materials by hand or machine
