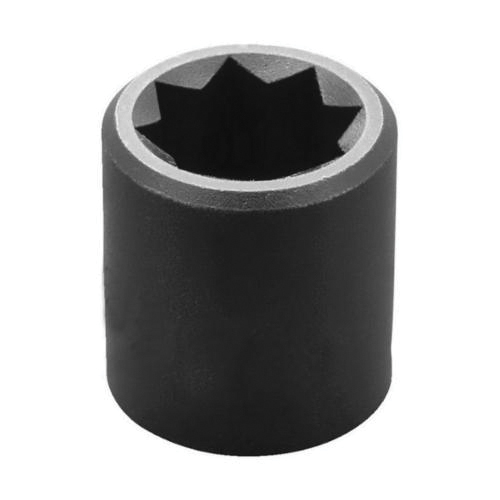

Proto® TorquePlus™ J7216S Standard Length Socket, Imperial, 3/8 in Square Drive, 1/2 in
Proto® TorquePlus™ J7216S Standard Length Socket, Imperial, 3/8 in Square Drive, 1/2 in
- Brand: Proto®
- Mfr# : J7216S
- Item # : STP J7216S
- UPC #: 662679330606
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
- Drive end chamfer and four detents help provide quick positive engagement with drive tool on any of the socket drive walls
- Tight tolerances for snug fit on fastener
- Large clearance holes, concentric opening and nut end chamfer make it easy to position socket on fasteners
- Made from high strength steel to help minimize wall thickness and provide access to fasteners in recesses and where nuts and bolts protrude
- Impact sockets are used wherever powered drive tools are used to install or remove fasteners
- Impact sockets are designed to withstand higher torque and force associated with impact tools in repetitive application
- Stamped size for easy reference
DESCRIPTION
Proto® TorquePlus™ Socket, Standard Length, Yes Impact Rated, Measurement System: Imperial, Square Drive, 3/8 in Drive, 1/2 in Socket, 1-1/16 in Overall Length, 3/8 in Opening Depth, 15/16 in Drive End Width, 59/64 in Socket End Width, Side Locking Hole Locking, 8 Points, 9/16 in Bolt Clearance Depth, Alloy Steel, Black Oxide
SPECIFICATIONS
| Type | : Standard Length |
| Impact Rated | : Yes |
| Measurement System | : Imperial |
| Drive Type | : Square |
| Drive Size | : 3/8 in |
| Socket Size | : 1/2 in |
| Overall Length | : 1-1/16 in |
| Opening Depth | : 3/8 in |
| Drive End Width | : 15/16 in |
| Socket End Width | : 59/64 in |
| Locking Type | : Side Locking Hole |
| Number of Points | : 8 |
| Bolt Clearance Depth | : 9/16 in |
| Material | : Alloy Steel |
| Finish | : Black Oxide |
APPLICATION INFO
| Standard/Approvals | : ASME B107.110-2012|ASME B107.2 |
| Application | : For use on stubborn or damaged fasteners and also on fasteners made from soft materials |
| Country of Origin | : US |
