Chicago-Latrobe® 11051 906 Type B Extra Length Aircraft Extension Drill, #21 Drill - Wire, 0.159 in Drill - Decimal Inch, 135 deg Point, HSS
Chicago-Latrobe® 11051 906 Type B Extra Length Aircraft Extension Drill, #21 Drill - Wire, 0.159 in Drill - Decimal Inch, 135 deg Point, HSS
Chicago-Latrobe® 11051 906 Type B Extra Length Aircraft Extension Drill, #21 Drill - Wire, 0.159 in Drill - Decimal Inch, 135 deg Point, HSS
- Brand: Chicago-Latrobe®
- Mfr# : 11051
- Item # : GRE 11051
- UPC #: 662355110515
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Self centering 135 split-point for reduced thrust requirements and minimized walking
DESCRIPTION

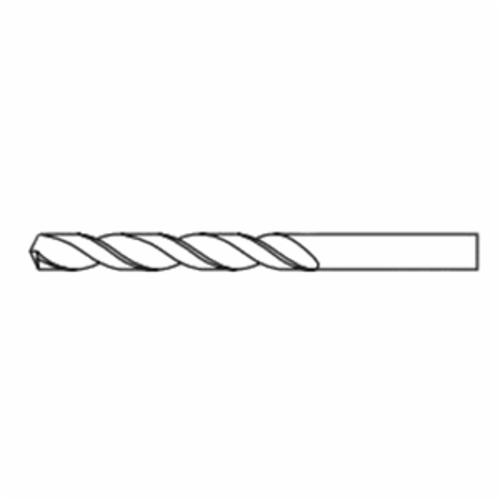

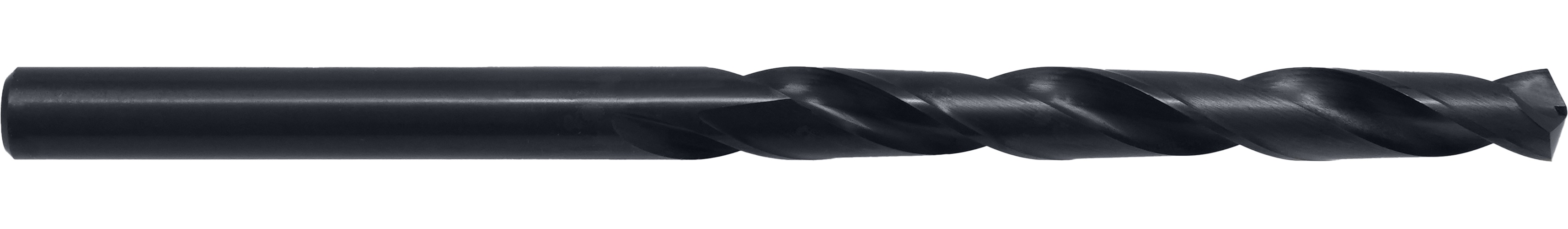

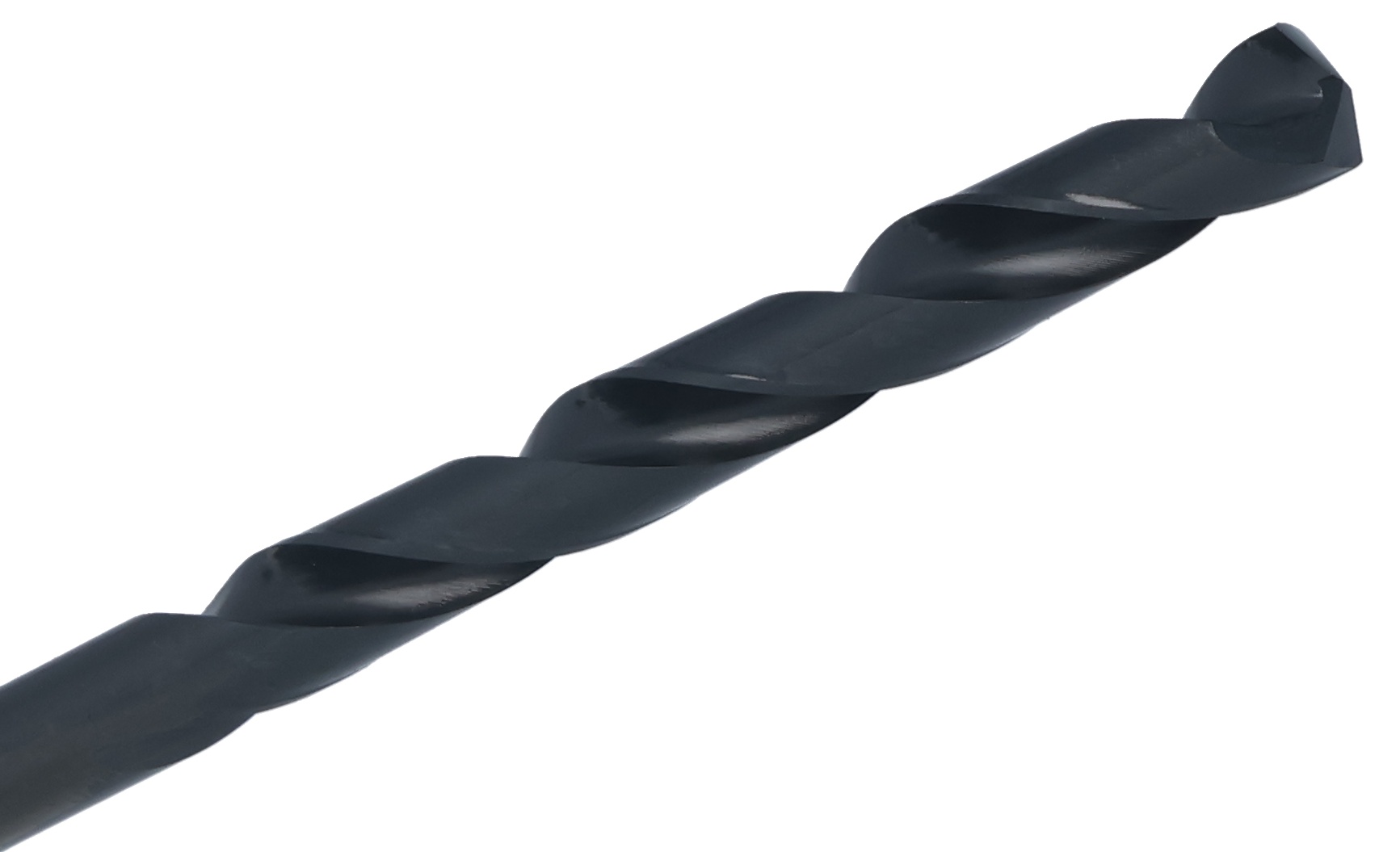

The CHICAGO-LATROBE 906 Aircraft Extension Drill is built to NAS 907 Type B specs for aerospace applications. It features a jobber flute length, extended 6" shanks for long-reach access, and a 135° P3 split point for self-centering, reduced thrust, and easy penetration. Made from premium high-speed steel with a black oxide finish for wear resistance and added lubricity in ferrous materials. NOTE: Drills <.0625" do not have split points. Also available with an extended 12" shank (see style 912).
Chicago-Latrobe® Aircraft Extension Drill, Type B Extra Length, Series: 906, #21 Drill - Wire, 0.159 in Drill - Decimal Inch, 6 in Overall Length, 2-1/8 in Cutting Depth, Spiral Flute, 2-1/8 in Flute Length, 0.159 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Oxide Treated, Applicable Materials: Alloy Steel, Carbon Steel and Cast Iron
SPECIFICATIONS
| Type | : Type B Extra Length |
| Series | : 906 |
| Drill Size - Wire | : #21 |
| Drill Size - Decimal Inch | : 0.159 in |
| Overall Length | : 6 in |
| Cutting Depth | : 2-1/8 in |
| Flute Type | : Spiral |
| Flute Length | : 2-1/8 in |
| Shank Size | : 0.159 in |
| Shank Type | : Straight |
| Point Angle | : 135 deg |
| Point Type | : Split |
| Cutting Direction | : Right Hand |
| Cutting Edge Material | : HSS |
| Material | : HSS |
| Finish | : Oxide Treated |
| Applicable Materials | : Alloy Steel, Carbon Steel and Cast Iron |
APPLICATION INFO
| Standard/Approvals | : NAS-907 |
| Country of Origin | : KR |
