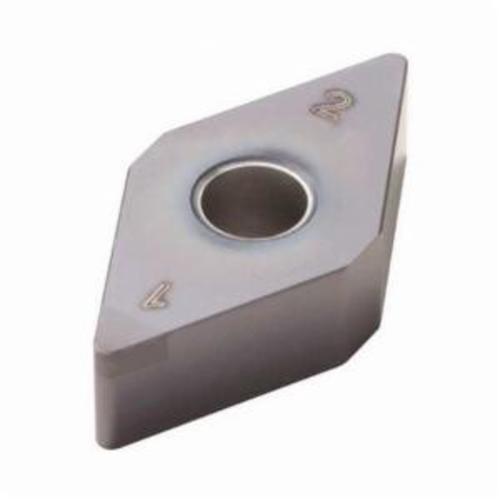

Seco Secomax™ 02726569 Turning Insert, ANSI Code: DNGA432S-00625-L1-U CBN060K, DNGA Insert, Material Grade: H, 150408 Insert, Diamond Shape, 15 Seat, For Use On Hard Materials, PCBN, Manufacturer's Grade: CBN060K

Seco Secomax™ 02726569 Turning Insert, ANSI Code: DNGA432S-00625-L1-U CBN060K, DNGA Insert, Material Grade: H, 150408 Insert, Diamond Shape, 15 Seat, For Use On Hard Materials, PCBN, Manufacturer's Grade: CBN060K

Seco Secomax™ 02726569 Turning Insert, ANSI Code: DNGA432S-00625-L1-U CBN060K, DNGA Insert, Material Grade: H, 150408 Insert, Diamond Shape, 15 Seat, For Use On Hard Materials, PCBN, Manufacturer's Grade: CBN060K


  • Brand: Seco
  • Mfr# : 02726569
  • Item # : MCT 62798
  • Min. Order Qty:
  • Qty. Interval:

loading
loading

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Seco_2587711_Catalog.pdf

DESCRIPTION

Polycrystalline cubic boron nitride (PCBN) is a material which is sintered at extremely high pressure and high temperature into a wear-resistant material with properties close to those of diamond. Due to the hot hardness, oxidation resistance and fracture toughness of the material, inserts made of PCBN have excellent edge strength and long tool life when machining hard ferrous materials and pearlitic grey cast iron.

Seco Secomax™ Turning Insert, DNGA Insert, 150408 Insert, Diamond, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, L1-U Chipbreaker, 0.8 mm Corner Radius, 5.15 mm Hole Dia, Manufacturer's Grade: CBN060K, ANSI Code: DNGA432S-00625-L1-U CBN060K, ISO Code: DNGA150408S-01525-L1-U CBN060K, 55 deg Included Angle, 0 deg Relief Angle, PCBN, PVD-TiAlSiN Coated, Material Grade: H, For Use On: Hard Materials

SPECIFICATIONS

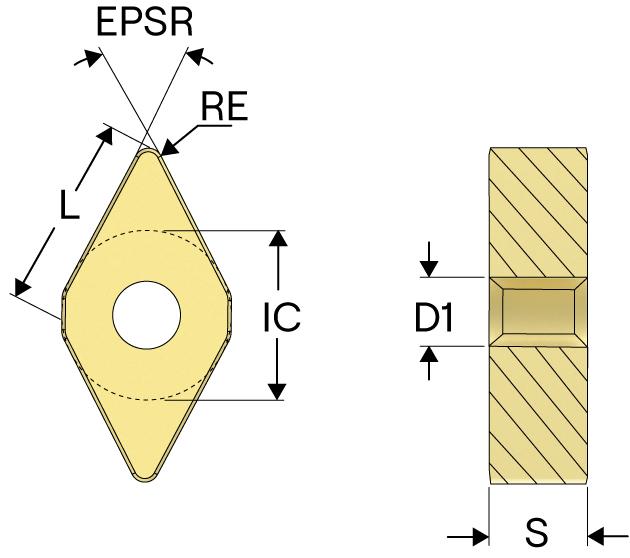

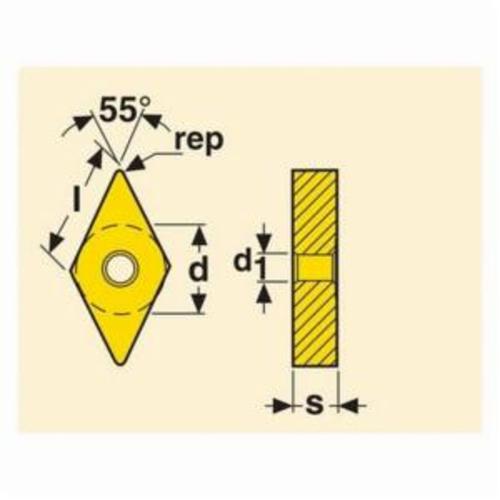

Insert Style      :    DNGA
Insert Size      :    150408
Shape      :    Diamond
Maximum Depth of Cut      :    5.25 mm
Inscribed Circle      :    12.7 mm
Thickness      :    4.76 mm
Seat Size      :    15
Chipbreaker      :    L1-U
Corner Radius      :    0.8 mm
Hole Diameter      :    5.15 mm
ANSI Code      :    DNGA432S-00625-L1-U CBN060K
ISO Code      :    DNGA150408S-01525-L1-U CBN060K
Included Angle      :    55 deg
Relief Angle      :    0 deg
Material      :    PCBN
Finish      :    PVD-TiAlSiN Coated
Material Grade      :    H
For Use On      :    Hard Materials

APPLICATION INFO

Country of Origin      :    SE
