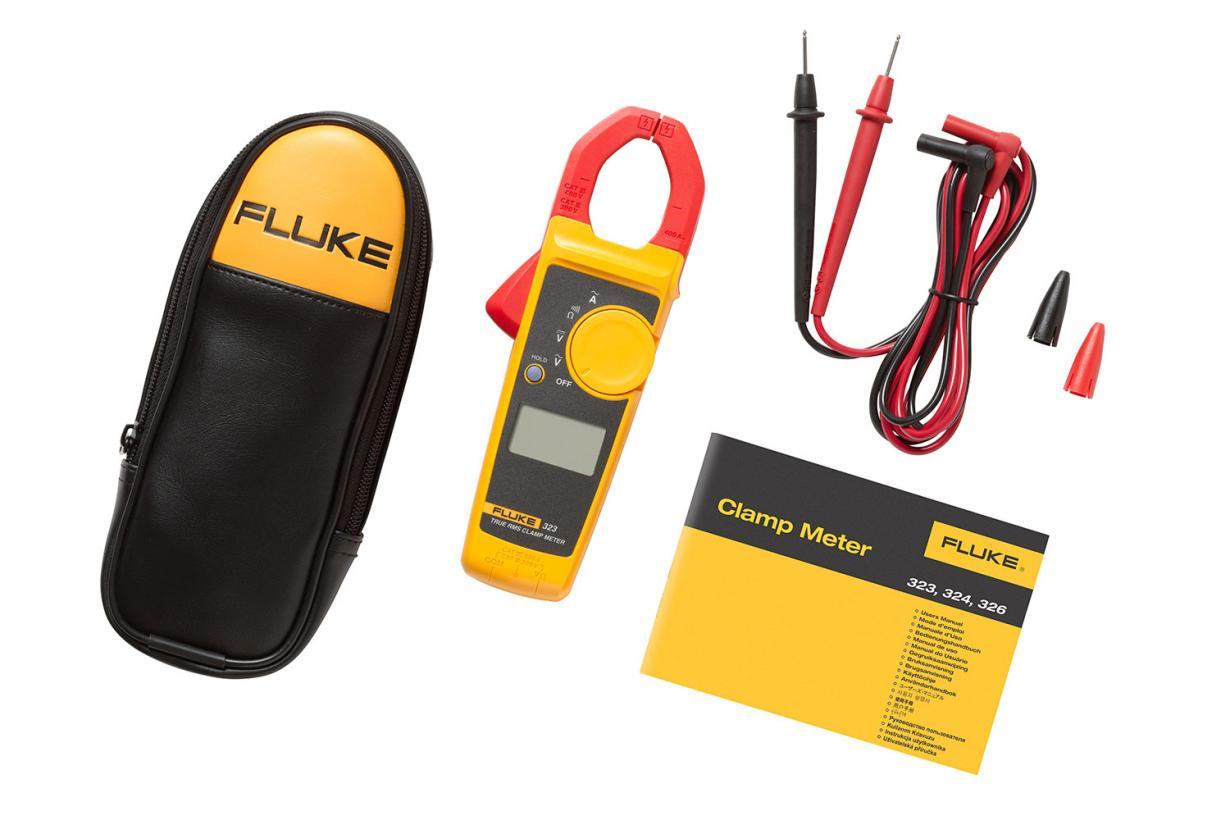

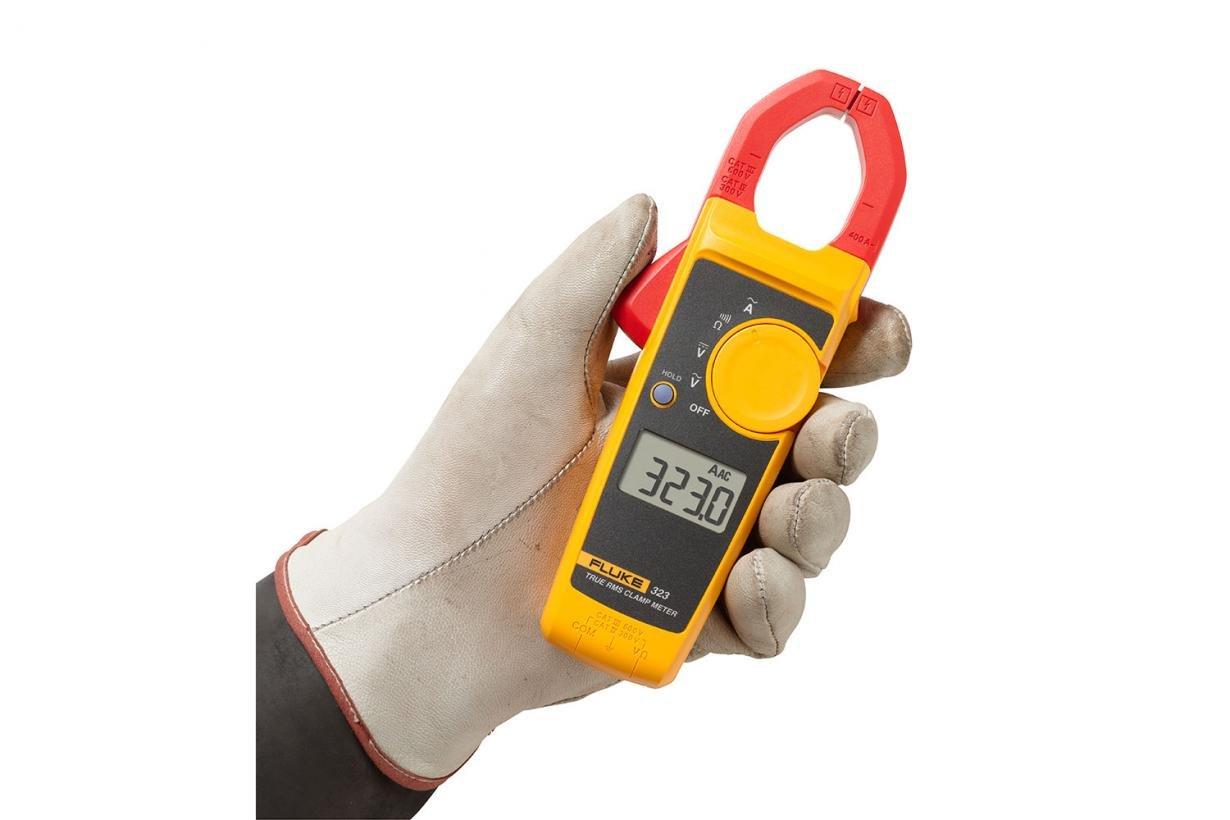

Fluke® FLUKE-323 Clamp Meter, 400 A, 600 VAC/VDC, 4000 Ohm, 30 mm Jaw, Backlit Display
Fluke® FLUKE-323 Clamp Meter, 400 A, 600 VAC/VDC, 4000 Ohm, 30 mm Jaw, Backlit Display
- Brand: Fluke®
- Mfr# : FLUKE-323
- Item # : FLU 323
- UPC #: 095969623742
- Min. Order Qty: :
- Qty. Interval: :
Owners/User Manual
FEATURES
- True-RMS AC voltage and current for accurate measurements on non-linear signals
- Slim, ergonomic design, hold button
- Fluke® rugged, reliable, precise
- Resistance measurement up to 4 kOhm with continuity detection
- Resistance 400 Ohm/4000 Ohm with accuracy of (1% +/- 5 digits)
- <=70 Ohm continuity
DESCRIPTION

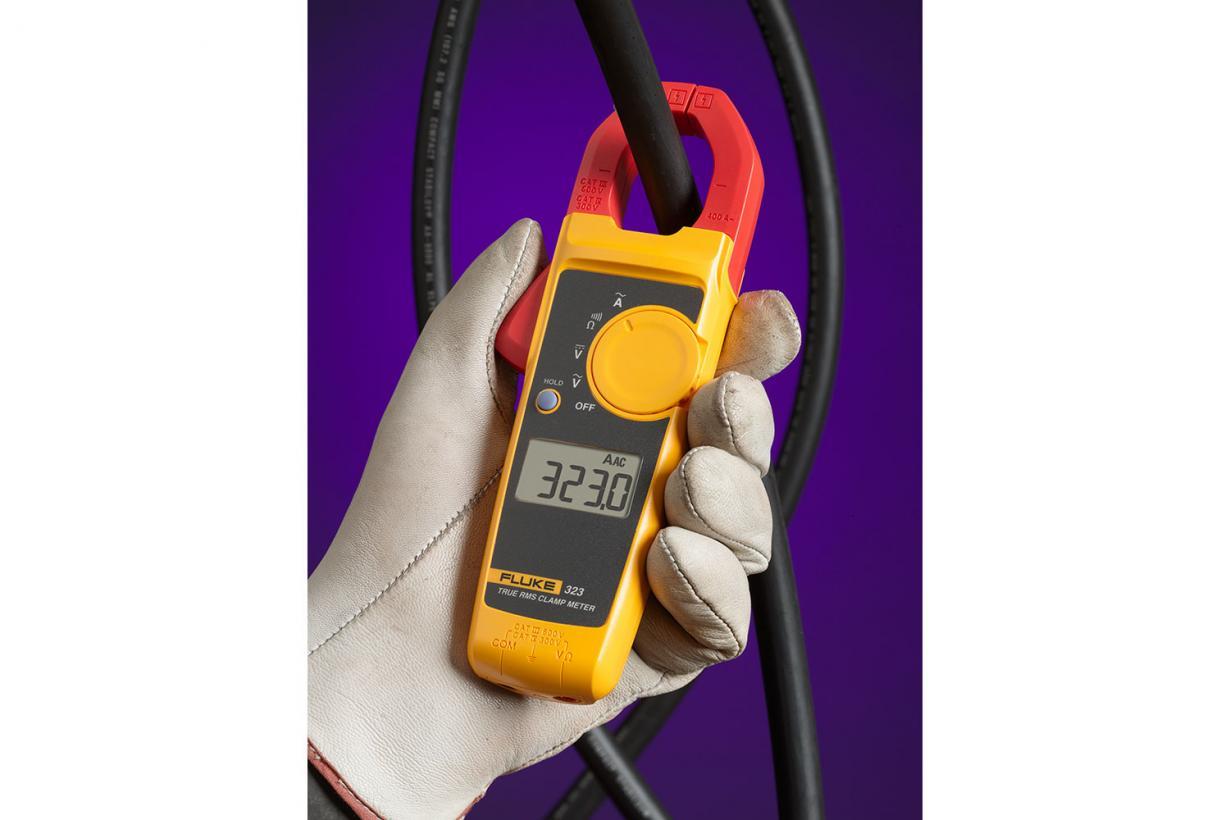

True-RMS measurements and optimized ergonomics make the 320 series clamp meters the best general troubleshooting tools for commercial and residential electricians. The Fluke® 323 model is ideally suited for current measurements up to 400 A in tight cable compartments.
Fluke® Clamp Meter, 400 A, 600 VAC/VDC Electrical Rating, 4000 Ohm Resistance, 30 mm Jaw, Backlit Display, 2% +/-5 Digits at 45 to 65 Hz, 2.5% +/-5 Digits at 65 to 400 Hz AC Current Accuracy, 1.5% +/-5 Digits VAC, 1% +/-5 Digits VDC Voltage Accuracy, Safety Rating: CAT III 600 VAC, CAT IV 300 VAC, -10 to 50 deg C Operating, 8.15 in L x 2.95 in W x 1.34 in H Dimensions, Hard Plastic
SPECIFICATIONS
| Electrical Ratings | : 400 A, 600 VAC/VDC |
| Resistance | : 4000 Ohm |
| Jaw Capacity | : 30 mm |
| Display Type | : Backlit |
| AC Current Accuracy | : 2% +/-5 Digits at 45 to 65 Hz, 2.5% +/-5 Digits at 65 to 400 Hz |
| Voltage Accuracy | : 1.5% +/-5 Digits VAC, 1% +/-5 Digits VDC |
| Safety Rating | : CAT III 600 VAC, CAT IV 300 VAC |
| Operating Temperature | : -10 to 50 deg C |
| Dimensions | : 8.15 in L x 2.95 in W x 1.34 in H |
| Material | : Hard Plastic |
APPLICATION INFO
| Standard/Approvals | : cCSAus Certified|CE Marking|ECCN 3A992|N10140 Certified |
| Application | : For current measurements in tight cable compartments and overall troubleshooting by commercial and residential electricians |
