WIDIA GTD 2748181 5320 Standard Projection Taper Pipe Tap, 1/2-14 Thread

WIDIA GTD 2748181 GRE 16222

WIDIA GTD 2748181 5320 Standard Projection Taper Pipe Tap, 1/2-14 Thread

WIDIA GTD 2748181 5320 Standard Projection Taper Pipe Tap, 1/2-14 Thread

  • Brand: WIDIA GTD
  • Mfr# : 2748181
  • Item # : GRE 16222
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • NPT threads require the use of a sealer, such as Telon® tape or pipe compound

DESCRIPTION

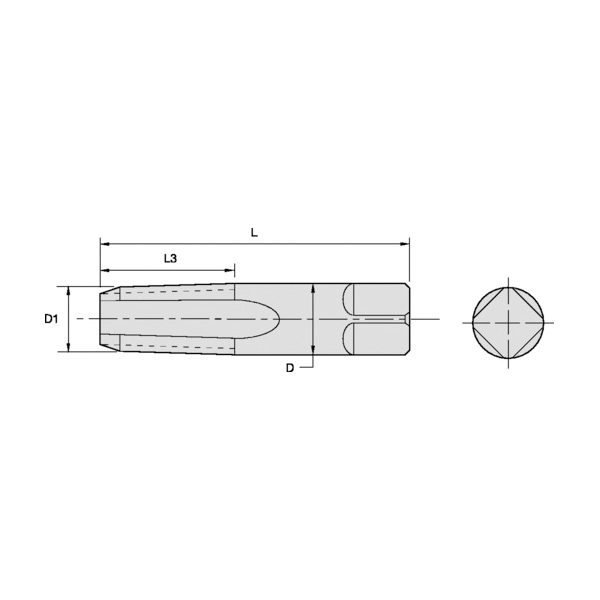

WIDIA GTD Pipe Tap, Standard Projection Taper, Series: 5320, Measurement System: Imperial, 1/2-14 Thread, ANPT/NPT Thread Standard, Standard Chamfer, 1.66 in Thread Length, 3.13 in Overall Length, 4 Flutes, 0.687 in Shank Diameter, HSS, Bright

SPECIFICATIONS

Type      :    Standard Projection Taper
Series      :    5320
Measurement System      :    Imperial
Thread Size      :    1/2-14
Thread Standard      :    ANPT/NPT
Chamfer Type      :    Standard
Thread Length      :    1.66 in
Overall Length      :    3.13 in
Number of Flutes      :    4
Shank Diameter      :    0.687 in
Material      :    HSS
Finish/Coating      :    Bright

APPLICATION INFO

Standard/Approvals      :    ANSI Specified
Application      :    For pipe thread applications
Country of Origin      :    US
