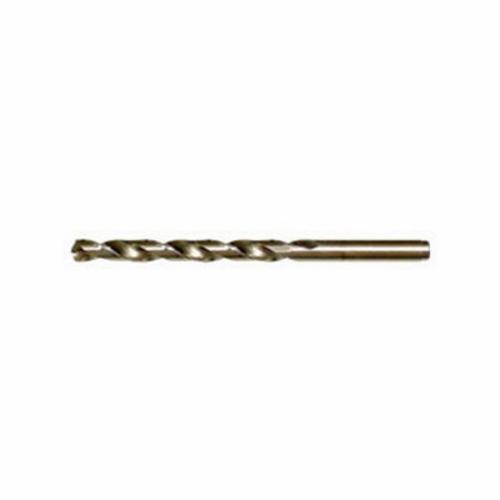

Cle-Line® C23355 1802 Heavy Duty Jobber Length Drill Bit, 7/32 in Drill - Fraction, 0.2188 in Drill - Decimal Inch, 135 deg Point, M42 HSS-Co 8%, Uncoated

Cle-Line® C23355 GRE C23355

Cle-Line® C23355 1802 Heavy Duty Jobber Length Drill Bit, 7/32 in Drill - Fraction, 0.2188 in Drill - Decimal Inch, 135 deg Point, M42 HSS-Co 8%, Uncoated

Cle-Line® C23355 1802 Heavy Duty Jobber Length Drill Bit, 7/32 in Drill - Fraction, 0.2188 in Drill - Decimal Inch, 135 deg Point, M42 HSS-Co 8%, Uncoated

  • Brand: Cle-Line®
  • Mfr# : C23355
  • Item # : GRE C23355
  • UPC #: 697334233558
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • 135 deg split point for faster, easier drill penetration
  • Designed to drill tough, high-tensile materials and work hardening materials like high-strength alloy steels, stainless steel, titanium, manganese steel, armor plate, and inconel

DESCRIPTION

Cle-Line® Jobber Length Drill Bit, Heavy Duty, Series: 1802, Imperial, 7/32 in Drill - Fraction, 0.2188 in Drill - Decimal Inch, 3-3/4 in Overall Length, 5XD Cutting Depth, 2 Flutes, Right Spiral Flute, 2-1/2 in Flute Length, 7/32 in Dia x 1-1/4 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8% Cutting Edge, No Through Coolant, M42 HSS-Co 8%, Uncoated, Applicable Materials: Nickel, Cobalt, Titanium, Iron, Alloy Steel, Carbon Steel, Low Carbon Steel, Gray Cast Iron, Nodular Cast Iron, Aluminum and Hardened Steel

SPECIFICATIONS

Type      :    Heavy Duty
Series      :    1802
Drill Diameter Measurement System      :    Imperial
Drill Size - Fraction      :    7/32 in
Drill Size - Decimal Inch      :    0.2188 in
Overall Length      :    3-3/4 in
Cutting Depth      :    5XD
Number of Flutes      :    2
Flute Type      :    Right Spiral
Flute Length      :    2-1/2 in
Shank Size      :    7/32 in Dia x 1-1/4 in L
Shank Type      :    Straight
Point Angle      :    135 deg
Point Type      :    Split
Cutting Direction      :    Right Hand
Cutting Edge Material      :    M42 HSS-Co 8%
Through Coolant (Yes/No)      :    No
Material      :    M42 HSS-Co 8%
Finish      :    Uncoated
Applicable Materials      :    Nickel, Cobalt, Titanium, Iron, Alloy Steel, Carbon Steel, Low Carbon Steel, Gray Cast Iron, Nodular Cast Iron, Aluminum and Hardened Steel

APPLICATION INFO

Standard/Approvals      :    ASME B94.11M
Application      :    For general purpose applications
Country of Origin      :    US
