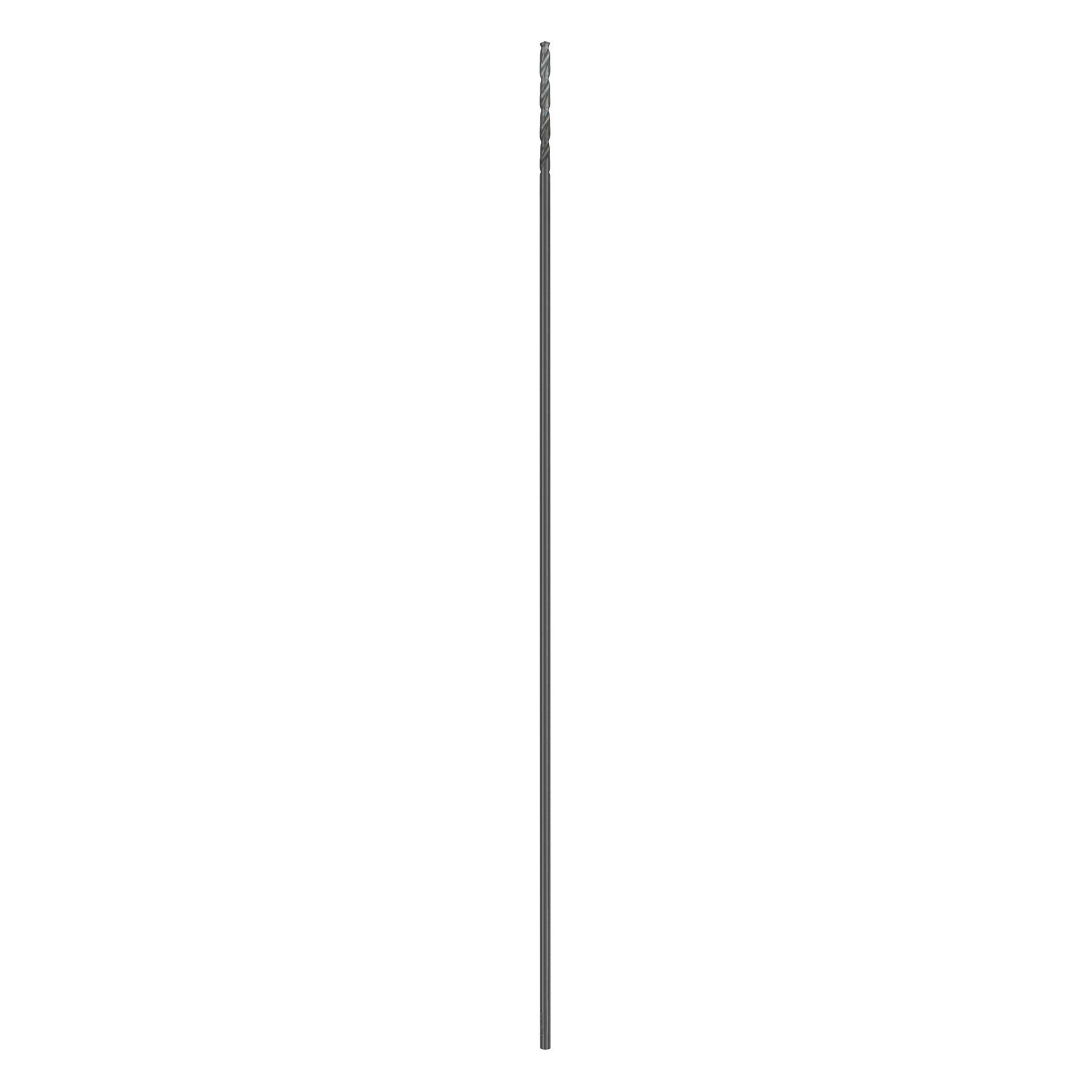

DeWALT® DW1602 Extended Length General Purpose Standard Drill Bit, 1/8 in Drill - Fraction, 0.125 in Drill - Decimal Inch, 12 in OAL, HSS

DeWalt® DW1602 BLD DW1602

DeWALT® DW1602 Extended Length General Purpose Standard Drill Bit, 1/8 in Drill - Fraction, 0.125 in Drill - Decimal Inch, 12 in OAL, HSS

DeWALT® DW1602 Extended Length General Purpose Standard Drill Bit, 1/8 in Drill - Fraction, 0.125 in Drill - Decimal Inch, 12 in OAL, HSS

  • Brand: DeWalt®
  • Mfr# : DW1602
  • Item # : BLD DW1602
  • UPC #: 028874116023
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • Parabolic flute design improves chip ejection in metal and wood drilling applications
  • Black oxide coated for greater wear resistance
  • 135 deg split point drills on contact and prevents walking
  • Helix is 31 deg which minimizes the over aggressiveness of a true parabolic flute

DESCRIPTION

The DeWalt® DW1602 1/8 x 12 in black oxide drill bit has a helix of 31 deg which minimizes the over aggressiveness of a true parabolic flute. With a black oxide coating and a split point, this is a drill bit with great wear resistance that won't walk across your project.

DeWALT® Drill Bit, Extended Length General Purpose Standard, 1/8 in Drill - Fraction, 0.125 in Drill - Decimal Inch, 12 in Overall Length, 1.65 in Cutting Depth, Parabolic Flute, 1.65 in Flute Length, 1/8 in Shank, Round/Straight Shank, 135 deg Point, Split Point, HSS Cutting Edge, HSS, Oxide Treated, Applicable Materials: Fiberglass, Metal, PVC, Stainless Steel and Wood

SPECIFICATIONS

Type      :    Extended Length General Purpose Standard
Drill Size - Fraction      :    1/8 in
Drill Size - Decimal Inch      :    0.125 in
Overall Length      :    12 in
Cutting Depth      :    1.65 in
Flute Type      :    Parabolic
Flute Length      :    1.65 in
Shank Size      :    1/8 in
Shank Type      :    Round/Straight
Point Angle      :    135 deg
Point Type      :    Split
Cutting Edge Material      :    HSS
Material      :    HSS
Finish      :    Oxide Treated
Applicable Materials      :    Fiberglass, Metal, PVC, Stainless Steel and Wood

APPLICATION INFO

Application      :    For drilling metal and wood
Country of Origin      :    US
