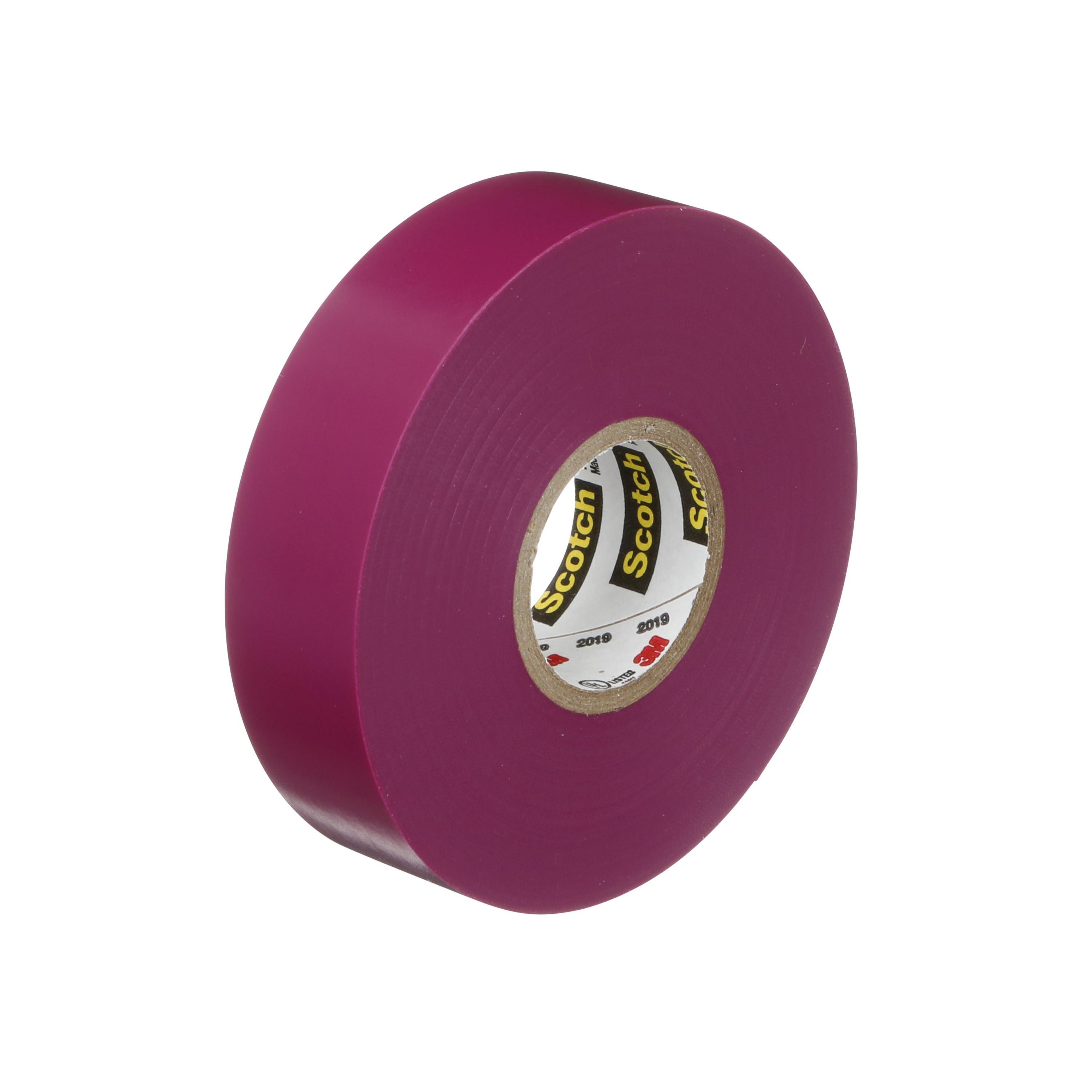

Scotch® 7100067890 Electrical Maintenance Tape, 7 yd L 0.5 in W, 7 mil THK, Rubber Adhesive, PVC Backing, Violet
Scotch® 7100067890 Electrical Maintenance Tape, 7 yd L 0.5 in W, 7 mil THK, Rubber Adhesive, PVC Backing, Violet
Scotch® 7100067890 Electrical Maintenance Tape, 7 yd L 0.5 in W, 7 mil THK, Rubber Adhesive, PVC Backing, Violet
- Brand: Scotch®
- Mfr# : 7100067890
- Item # : MMM 49923
- UPC #: 054007499237
- Min. Order Qty: :
- Qty. Interval: :
VIDEO LINK
Catalog
FEATURES
- The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection
- Flame-retardant and highly resistant to UV rays, abrasion, moisture, alkalis, solvents and many acids
- Suitable for use in phase identification, color-coding of motor leads and piping systems and for marking safety areas
- Withstands a temperature range of 14 to 221 deg F (-10 to 105 deg C)
DESCRIPTION
Help indicate safety areas with our premium-grade Scotch® Vinyl Electrical Tape 35. Its ideal for color-coding motor leads and piping systems as well as phase identification. This 7-mil thick, flame-retardant tape is suitable for electrical applications rated up to 600V, and it holds up in temperatures ranging from 32 to 221 degrees F (0 to 105 degrees C).
Scotch®, 7100067890, Tape, Electrical Maintenance, 7 yd Length, 0.5 in Width, 7 mil Thickness, Violet, Rubber Adhesive, PVC Backing, 6 V, 1250 V/mil Dielectric Strength, 221 deg F Maximum Operating, 32 deg F Minimum Operating, Specifications Met: CSA Certified/RoHS 211/65/EU/UL Listed/VDE 34-TEIL1
SPECIFICATIONS
| Type | : Electrical Maintenance |
| Length | : 7 yd |
| Width | : 0.5 in |
| Thickness | : 7 mil |
| Material Type | : PVC |
| Color | : Violet |
| Adhesive Material | : Rubber |
| Backing Material | : PVC |
| Adhesion Strength | : 20 in-oz |
| Voltage Rating | : 6 V |
| Dielectric Strength | : 1250 V/mil |
| Tensile Strength | : 17 in-lb |
| Maximum Operating Temperature | : 221 deg F |
| Minimum Operating Temperature | : 32 deg F |
| Specifications Met | : CSA Certified/RoHS 211/65/EU/UL Listed/VDE 34-TEIL1 |
APPLICATION INFO
| Standard/Approvals | : UL Listed|VDE/CSA Certified|RoHS 2015/863/EU Compliant |
| Application | : For Electrical Maintenance |
| Country of Origin | : US |
