Bassett B53625 DR Series General Purpose Jobber Length Drill Bit, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 118 deg Point, Solid Carbide, Bright
Bassett B53625 DR Series General Purpose Jobber Length Drill Bit, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 118 deg Point, Solid Carbide, Bright
Bassett B53625 DR Series General Purpose Jobber Length Drill Bit, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 118 deg Point, Solid Carbide, Bright
- Brand: Bassett
- Mfr# : B53625
- Item # : GRE B53625
- UPC #: 662355341384
- Min. Order Qty: :
- Qty. Interval: :
Catalog
DESCRIPTION

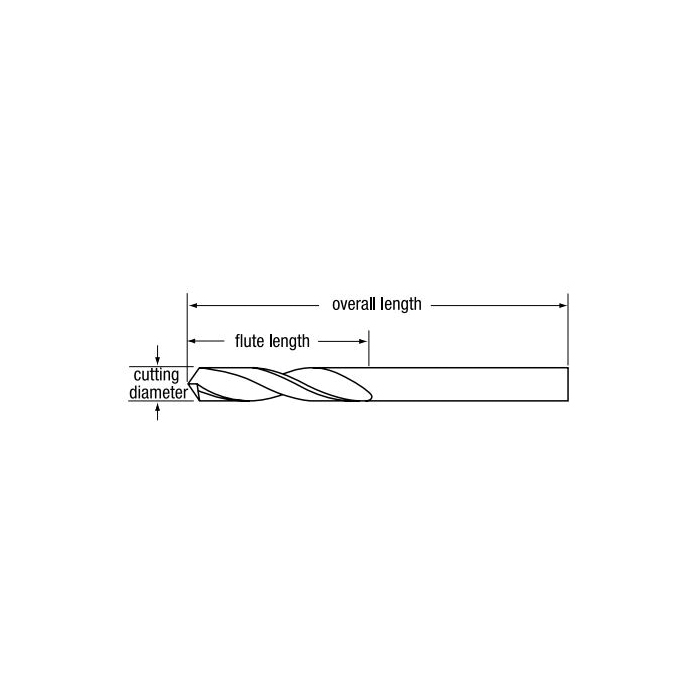

Bassett Jobber Length Drill Bit, General Purpose, Series: DR Series, Imperial, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 2-3/4 in Overall Length, 1-5/8 in Cutting Depth, 2 Flutes, Right Spiral Flute, 1-5/8 in Flute Length, 3/16 in Dia x 1-1/8 in L Shank, Straight Shank, 118 deg Point, 4-Facet Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Solid Carbide, Bright, Applicable Materials: Cast Iron, Non-Ferrous Metals and Steel
SPECIFICATIONS
| Type | : General Purpose |
| Series | : DR Series |
| Drill Diameter Measurement System | : Imperial |
| Drill Size - Fraction | : 3/16 in |
| Drill Size - Decimal Inch | : 0.1875 in |
| Overall Length | : 2-3/4 in |
| Cutting Depth | : 1-5/8 in |
| Number of Flutes | : 2 |
| Flute Type | : Right Spiral |
| Flute Length | : 1-5/8 in |
| Shank Size | : 3/16 in Dia x 1-1/8 in L |
| Shank Type | : Straight |
| Point Angle | : 118 deg |
| Point Type | : 4-Facet |
| Cutting Direction | : Right Hand |
| Cutting Edge Material | : Solid Carbide |
| Material | : Solid Carbide |
| Finish | : Bright |
| Applicable Materials | : Cast Iron, Non-Ferrous Metals and Steel |
