WIDIA GTD 2750435 7320 Standard Projection Taper Pipe Tap, 3/8-18 Thread

WIDIA GTD 2750435 GRE 11803

WIDIA GTD 2750435 7320 Standard Projection Taper Pipe Tap, 3/8-18 Thread

WIDIA GTD 2750435 7320 Standard Projection Taper Pipe Tap, 3/8-18 Thread

  • Brand: WIDIA GTD
  • Mfr# : 2750435
  • Item # : GRE 11803
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • American standard pipe tap (NPT) thread form with a taper of 3/4 in-ft
  • Made for the most difficult maintenance applications
  • Furnished with 2-1/2 to 3-1/2 pitches chamfered
  • Use for hand tapping or tapping under power

DESCRIPTION

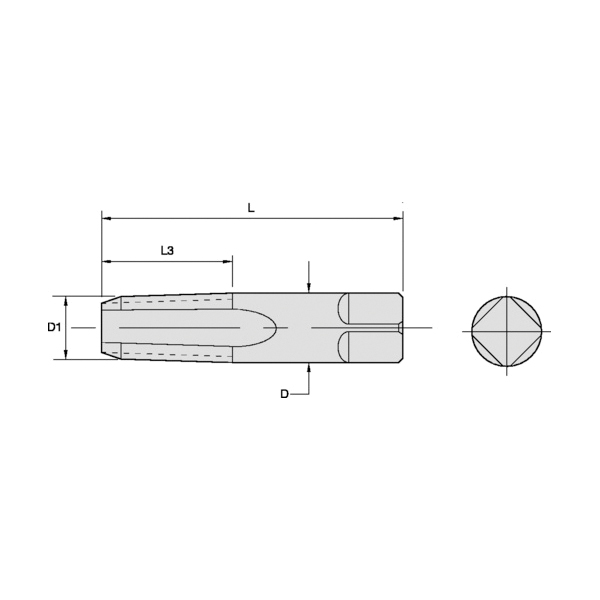

WIDIA GTD Pipe Tap, Standard Projection Taper, Series: 7320, Measurement System: Imperial, 3/8-18 Thread, NPT Thread Standard, Standard Chamfer, 1.06 in Thread Length, 2.56 in Overall Length, 4 Flutes, Right Hand Cutting Direction, 0.7 in Shank Diameter, HSS, Uncoated

SPECIFICATIONS

Type      :    Standard Projection Taper
Series      :    7320
Measurement System      :    Imperial
Thread Size      :    3/8-18
Thread Standard      :    NPT
Chamfer Type      :    Standard
Thread Length      :    1.06 in
Overall Length      :    2.56 in
Number of Flutes      :    4
Cutting Direction      :    Right Hand
Shank Diameter      :    0.7 in
Material      :    HSS
Finish/Coating      :    Uncoated

APPLICATION INFO

Standard/Approvals      :    ANSI Specified
Application      :    General Machining and Maintenance Applications
Country of Origin      :    US
