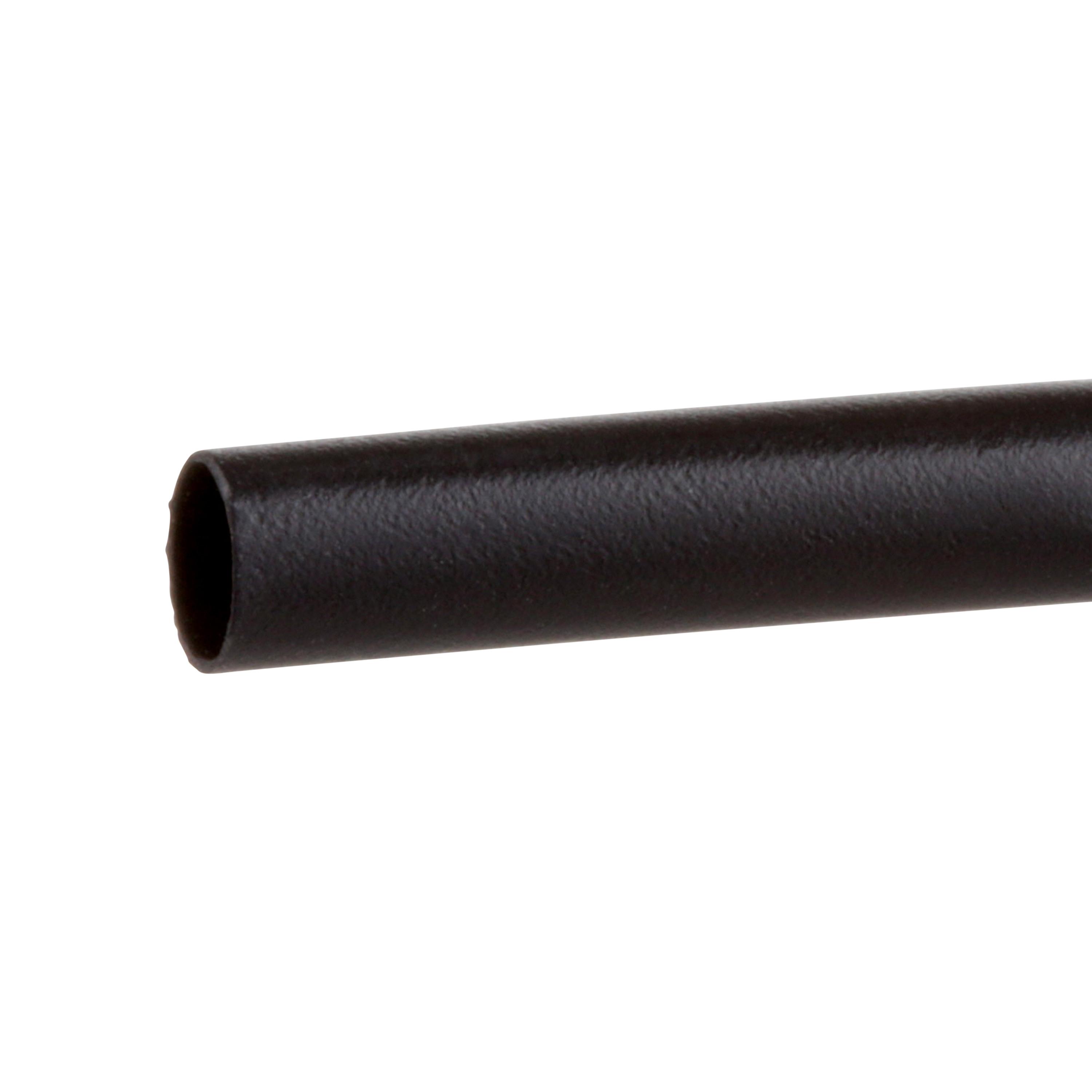

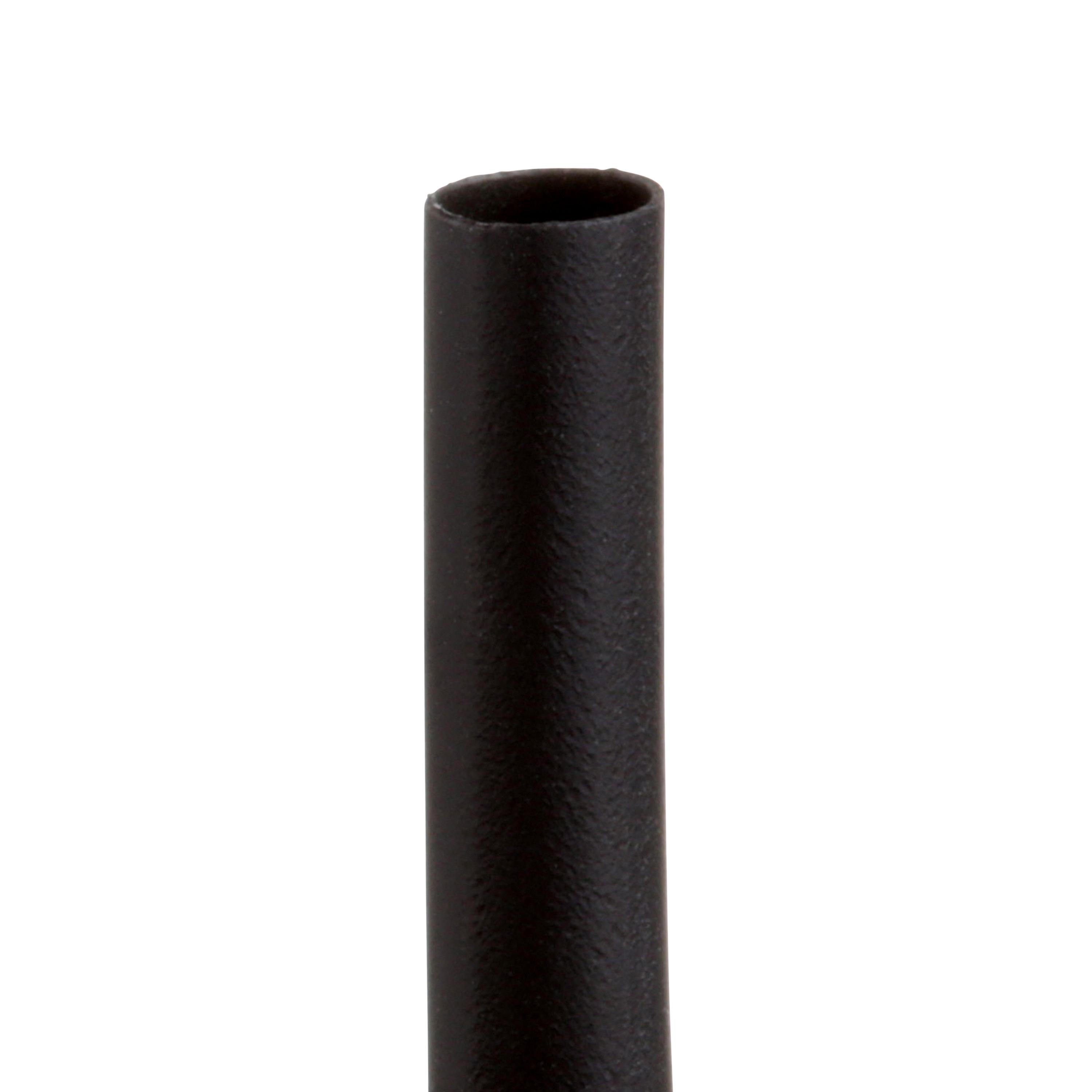

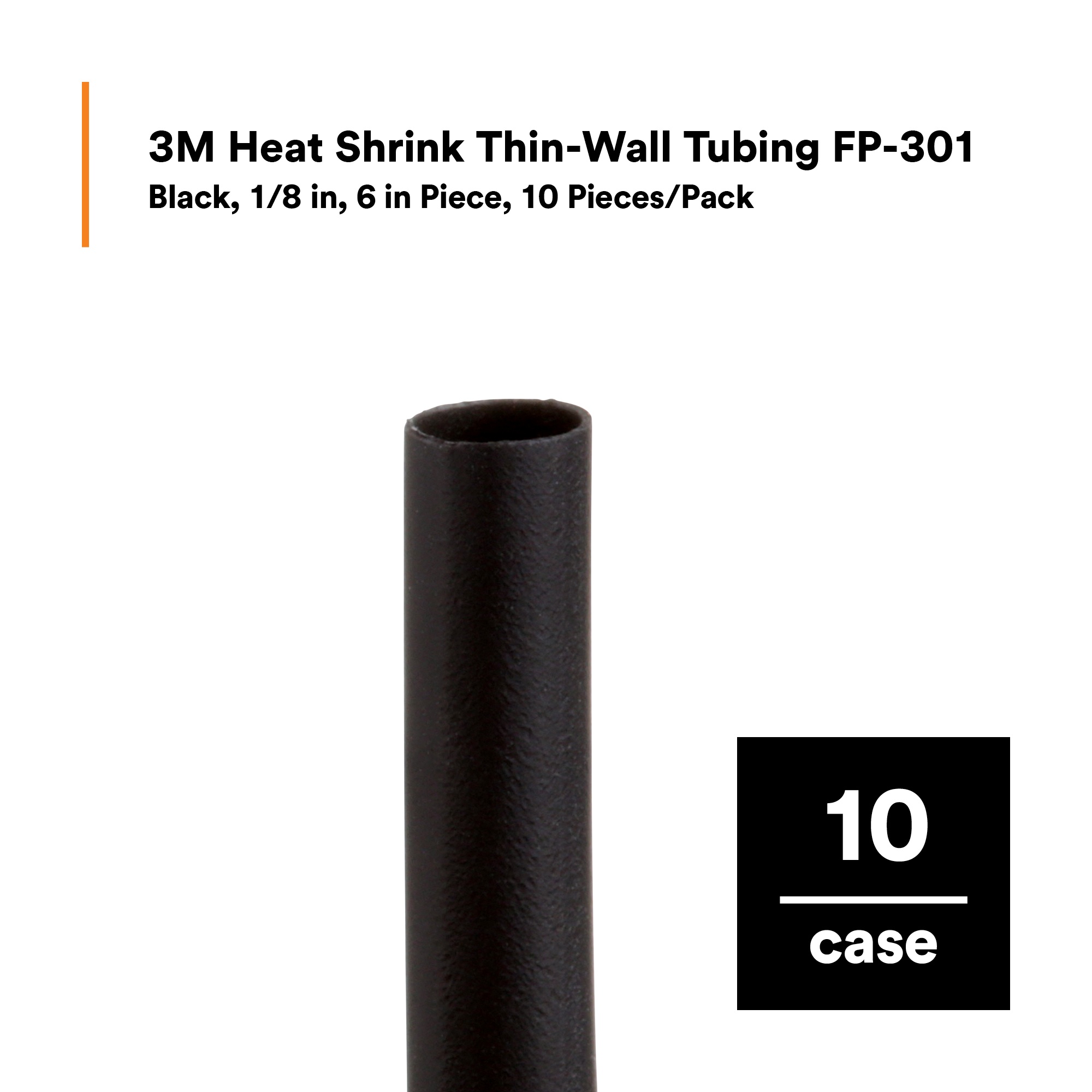

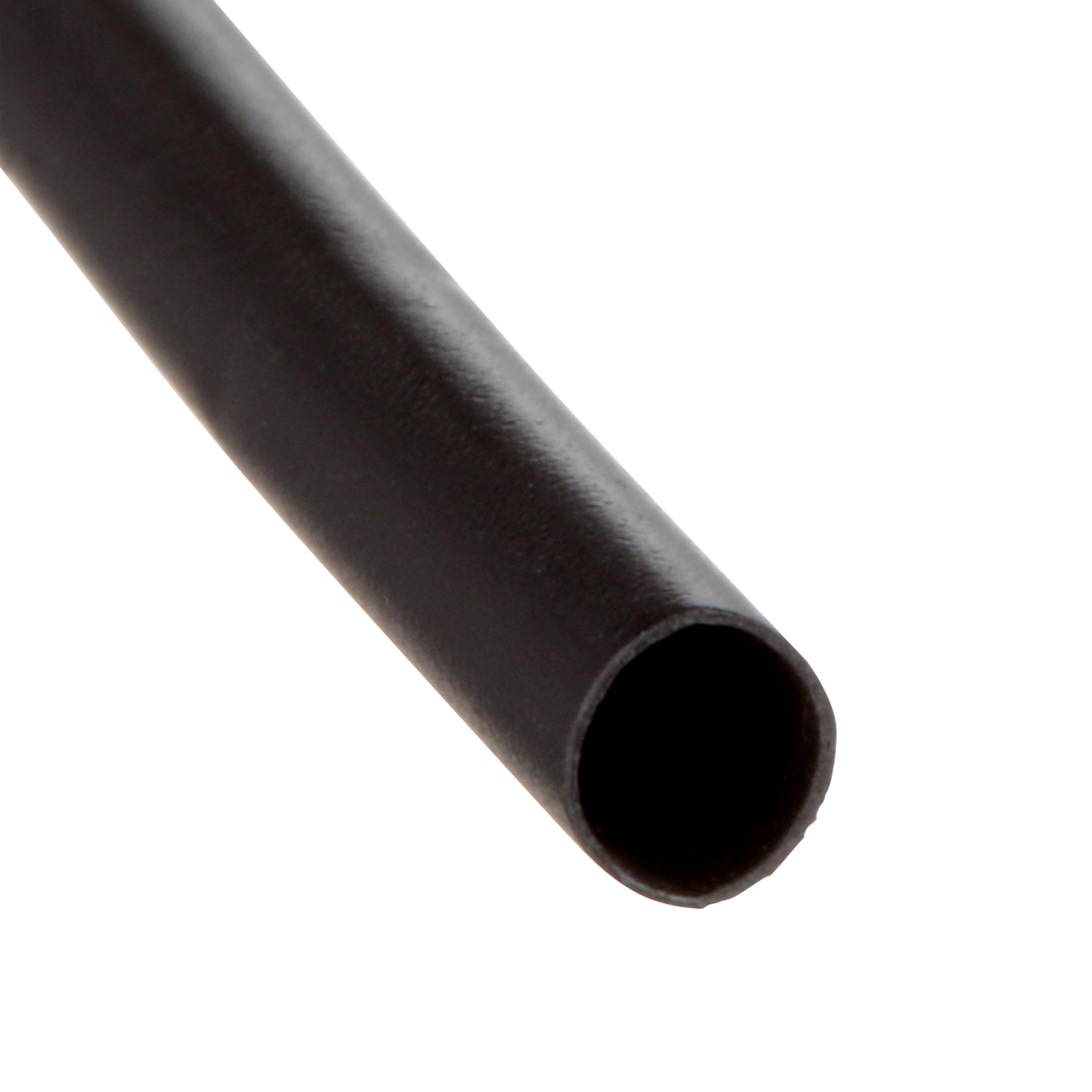

3M™ 7000133690 FP0.125BK6 Tubing, 0.062 in ID Recovered, 6 in L, Polyolefin, Black

3M™ 7000133690 FP0.125BK6 Tubing, 0.062 in ID Recovered, 6 in L, Polyolefin, Black

3M™ 7000133690 FP0.125BK6 Tubing, 0.062 in ID Recovered, 6 in L, Polyolefin, Black


  • Brand: 3M™
  • Mfr# : 7000133690
  • Item # : MMM 60116
  • UPC #: 051128601167
  • Min. Order Qty:
  • Qty. Interval:

loading
loading

  • video VIDEO LINK http://images.salsify.com/video/upload/s--7SIVn7LM--/c67bc59bd9ea565eb8aef2852b33505162197ab8.mp4
  • pdf Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_7000133567_Specification_Sheet.pdf
  • pdf Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_7100025928_User_Manual.pdf

FEATURES

  • FOR DEMANDING CONDITIONS - Performs at an operating temperature up to 275 degF (135 degC)

DESCRIPTION

3M™ Heat Shrink Tubing FP-301 offers durable shrink-fit protection for use in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging. Made of flexible polyolefin, the tubing is self-extinguishing, meets UL 224 All-Tubing Flame Test (except clear), and is ideal for cable splices and terminations to balance electrical and physical, and chemical properties within a variety of industrial and military applications rated up to 600V. The 2:1 shrink ratio tubing is mechanically tough and helps to protect from splits and cold flow while being easily markable. 3M™ Heat Shrink Tubing FP-301 can handle demanding environments within an operating temperature range of -67 °F (-55 °C) to 275 °F (135 °C) and is UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant.

3M™, 7000133690, Tubing, Series: FP0.125BK6, 600 V, 0.125 in ID Expanded, 0.062 in ID Recovered, Single Wall, 2:1 Shrink Ratio, 6 in Length, -55 to 135 deg C, 100 deg C Shrink, Polyolefin, Black

SPECIFICATIONS

Type      :    Corrosion-Resistant Flame-Retardant Flexible General Purpose
Series      :    FP0.125BK6
Voltage Rating      :    600 V
Inner Diameter Expanded      :    0.125 in
Inner Diameter Recovered      :    0.062 in
Wall Type      :    Single
Wall Thickness Recovered      :    0.02 in

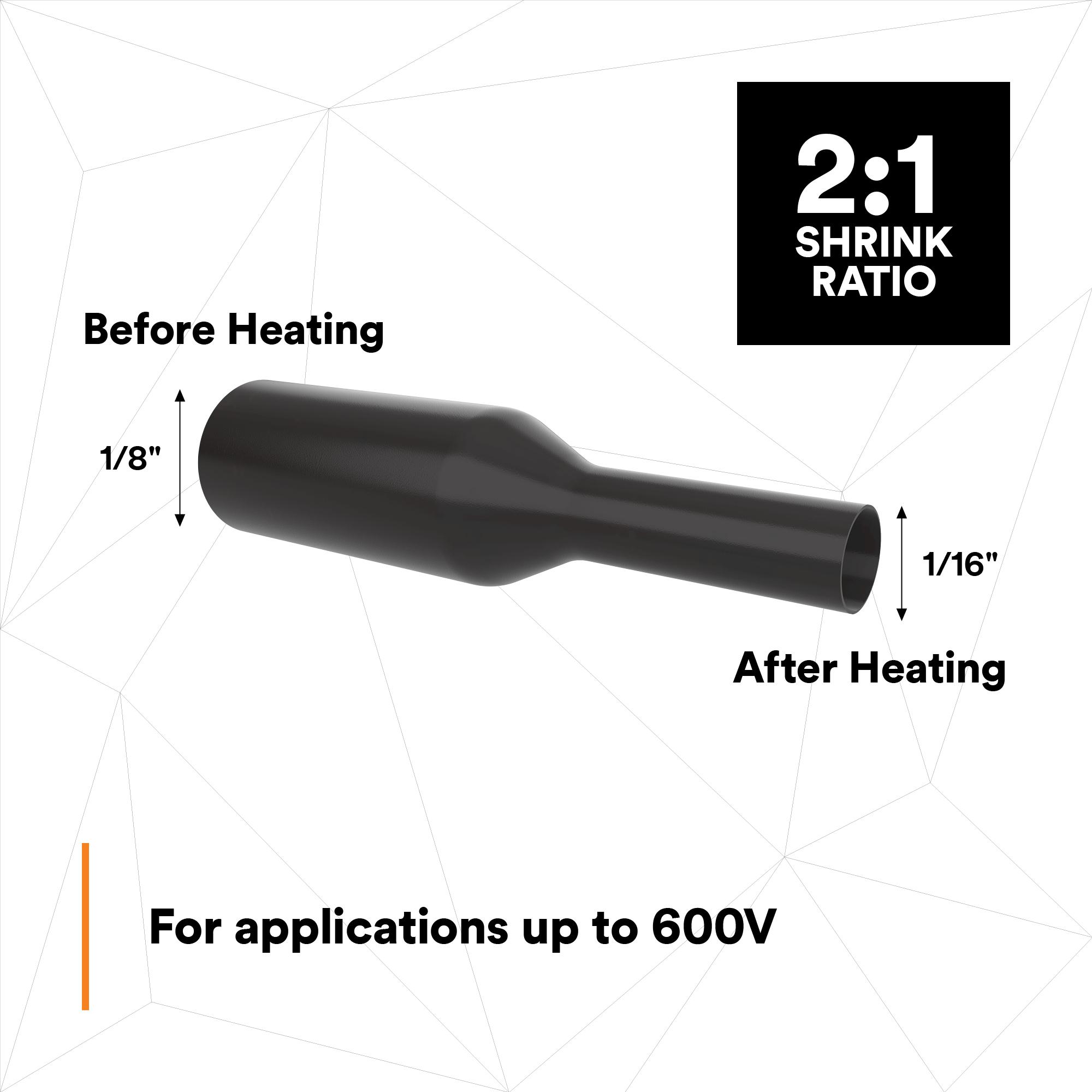

Shrink Ratio      :    2:1
Length      :    6 in
Temperature Rating      :    -55 to 135 deg C
Shrink Temperature      :    100 deg C
Material      :    Polyolefin
Color      :    Black

APPLICATION INFO

Standard/Approvals      :    UL File Number E-39100|UL 224||CSA Certified|RoHS 2011/65/EU Compliant|UL Recognized
Application      :    Ideal for cable splices and terminations to balance electrical and physical and chemical properties within a variety of industrial and military applications rated up to 600V
Country of Origin      :    US
