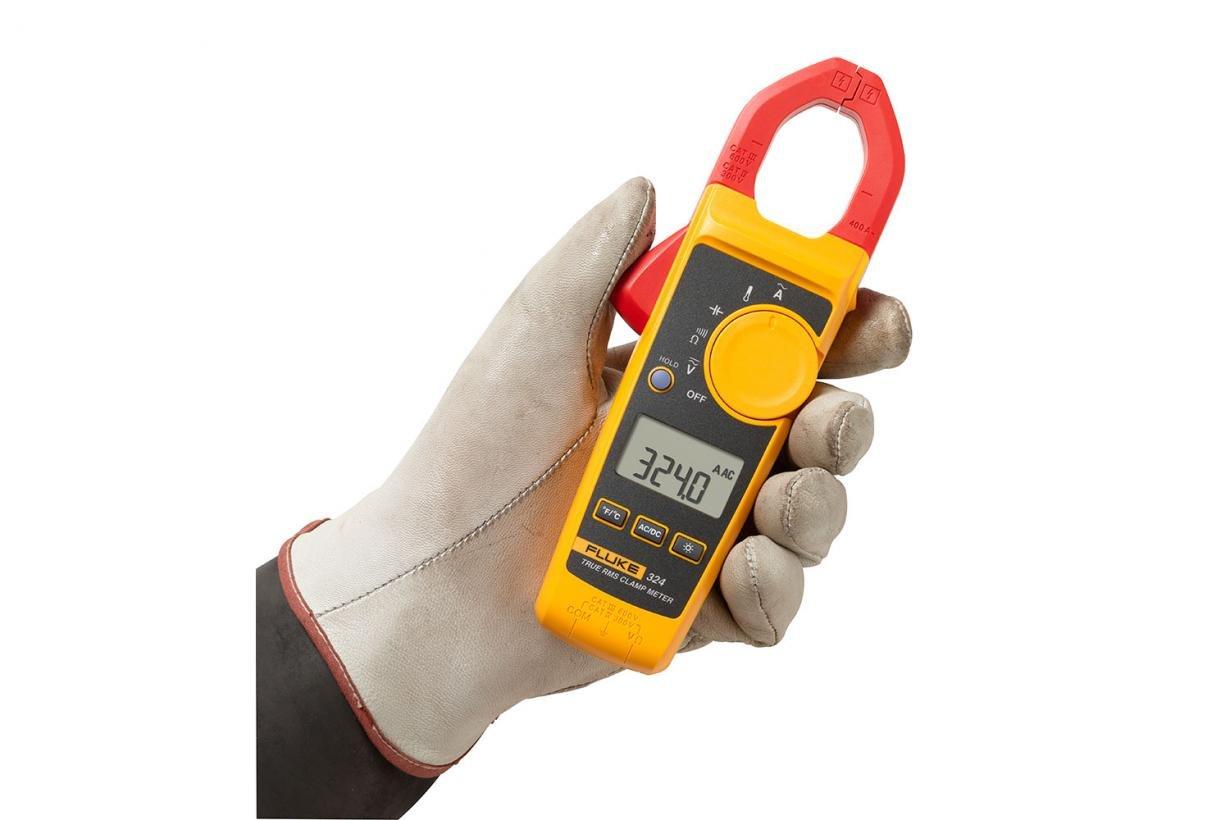

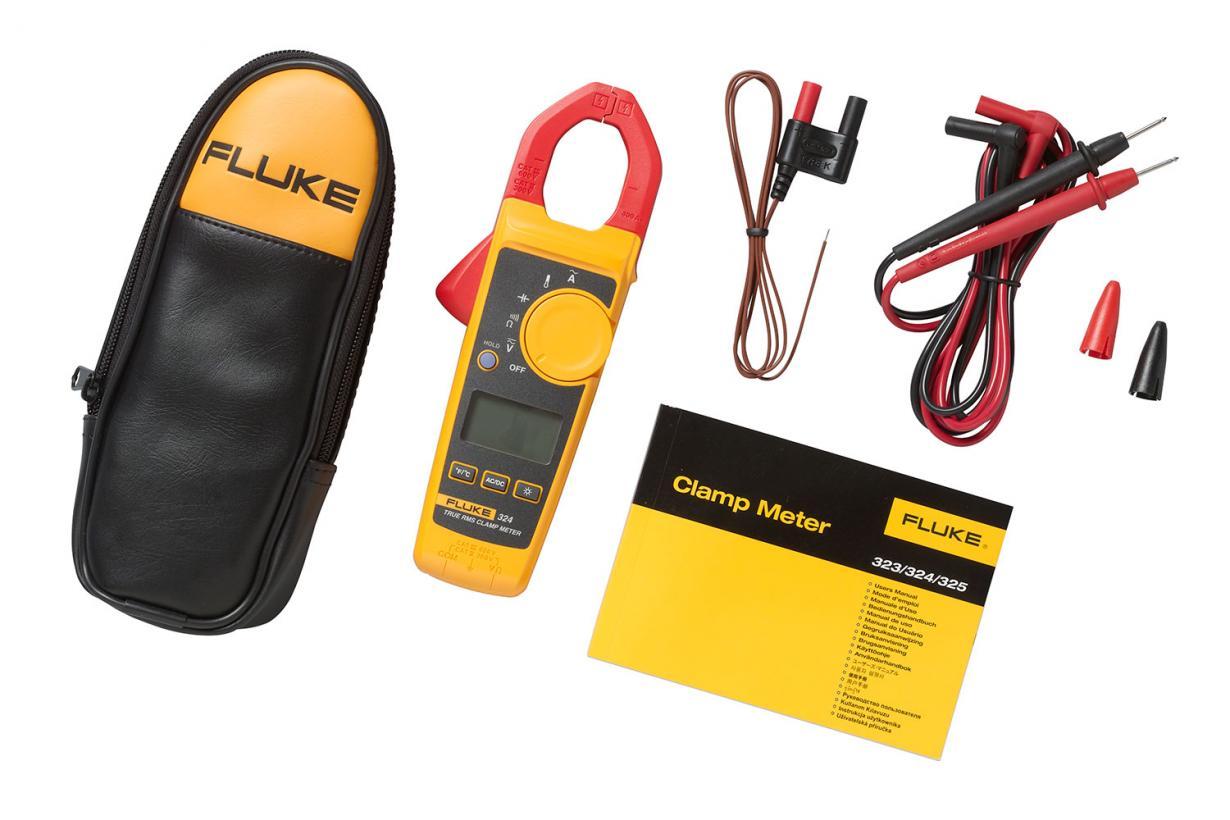

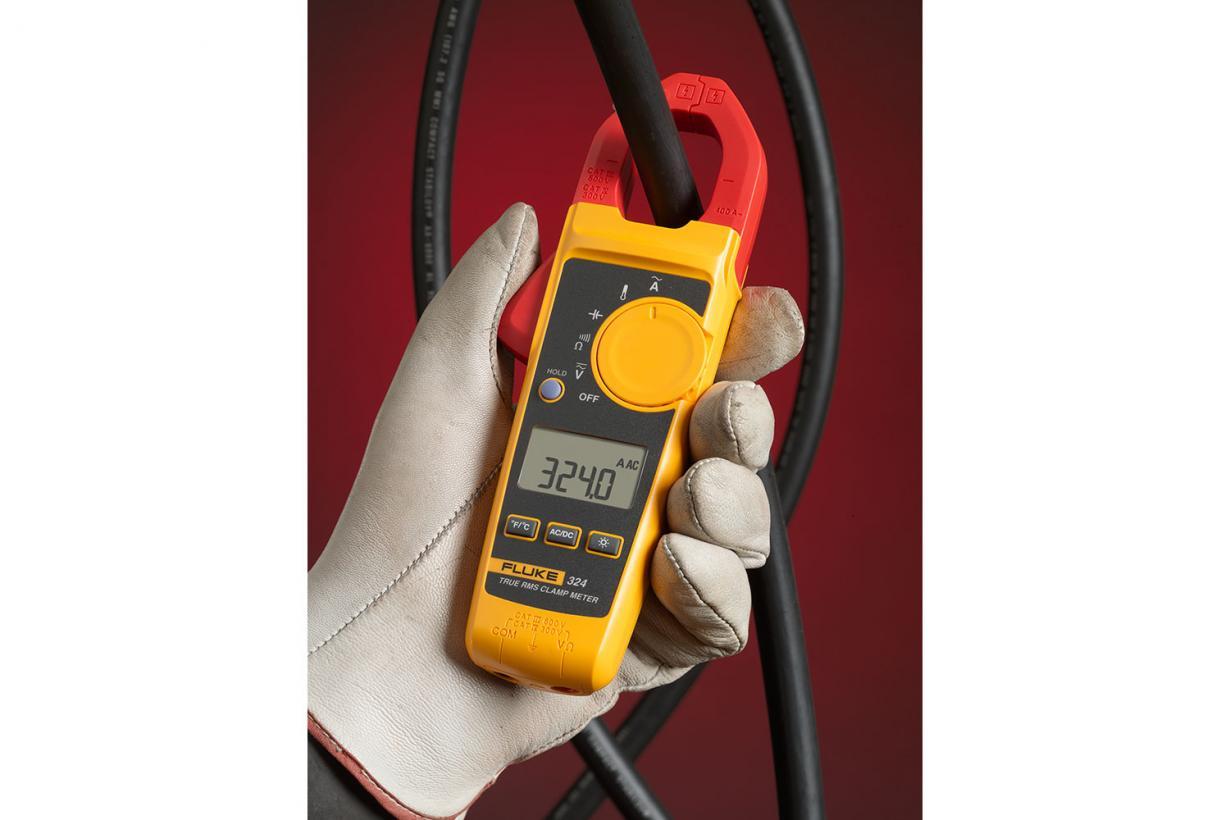

Fluke® FLUKE-324 True-RMS Clamp Meter, 600 VAC/VDC, 400 to 4000 Ohm, 45 to 400 Hz, Backlit Display
Fluke® FLUKE-324 True-RMS Clamp Meter, 600 VAC/VDC, 400 to 4000 Ohm, 45 to 400 Hz, Backlit Display
- Brand: Fluke®
- Mfr# : FLUKE-324
- Item # : FLU 324
- UPC #: 095969623759
- Min. Order Qty: :
- Qty. Interval: :
Owners/User Manual
FEATURES
- Slim, ergonomic design, hold button
- Large, easy to read backlight display
- Cat IV 300 VAC/Cat III 600 VAC safety rating
- Hold button
- 400 A AC current measurement
- 600 VAC and VDC voltage measurement
- True-RMS AC voltage and current for accurate measurements on non-linear signals
- Resistance measurement up to 4 kOhm with continuity detection
- Temperature and capacitance measurement
- The Fluke® 324 True-RMS clamp meter combines general electrical measurements with temperature and capacitance capabilities to create one solid troubleshooting tool
- <=30 Ohm continuity
- 0 to 100 uF/100 uF to 1000 uF capacitance
- 600 mcm maximum Dia wire
- +/-1.5% 5 digits (45 to 400 Hz)
DESCRIPTION
True-RMS measurements and optimized ergonomics make the 320 series clamp meters the best general troubleshooting tools for commercial and residential electricians. The 323, 324 and 325 are designed to verify the presence of load current, AC voltage and continuity of circuits, switches, fuses and contacts. These small and rugged clamp meters are ideally suited for current measurements up to 400 A in tight cable compartments. The Fluke® 324 model also includes temperature and capacitance measurement capabilities.
Fluke® True-RMS Clamp Meter, 600 VAC/VDC Electrical Rating, 400 to 4000 Ohm Resistance, 45 to 400 Hz Frequency, Backlit Display, True RMS AC Response, +/- 1.5 % AC Current Accuracy, +/-1.5% V AC, +/-1% V DC Voltage Accuracy, Safety Rating: CAT IV 300 V, CAT III 600 V, (2) AAA Batteries Power Source, 14 to 752 deg F Operating, 2.95 in W x 1.34 in D x 8.15 in H Dimensions, Hard Plastic
SPECIFICATIONS
| Electrical Ratings | : 600 V AC/DC |
| Resistance | : 400 to 4000 Ohm |
| Frequency Rating | : 45 to 400 Hz |
| Display Type | : Backlit |
| AC Response | : True RMS |
| AC Current Accuracy | : +/- 1.5 % |
| Voltage Accuracy | : +/-1.5% V AC, +/-1% V DC |
| Safety Rating | : CAT IV 300 V, CAT III 600 V |
| Power Source | : (2) AAA Batteries |
| Operating Temperature | : 14 to 752 deg F |
| Dimensions | : 2.95 in W x 1.34 in D x 8.15 in H |
| Material | : Hard Plastic |
APPLICATION INFO
| Standard/Approvals | : ECCN 3A992|PROP65: This product is in compliance with Prop65, it is not known to contain any chemicals associated with this regulation. For more information go to www.P65Warnings.ca.gov |
| Application | : For overall troubleshooting by commercial and residential electricians including temperature and capacitance measurement |
