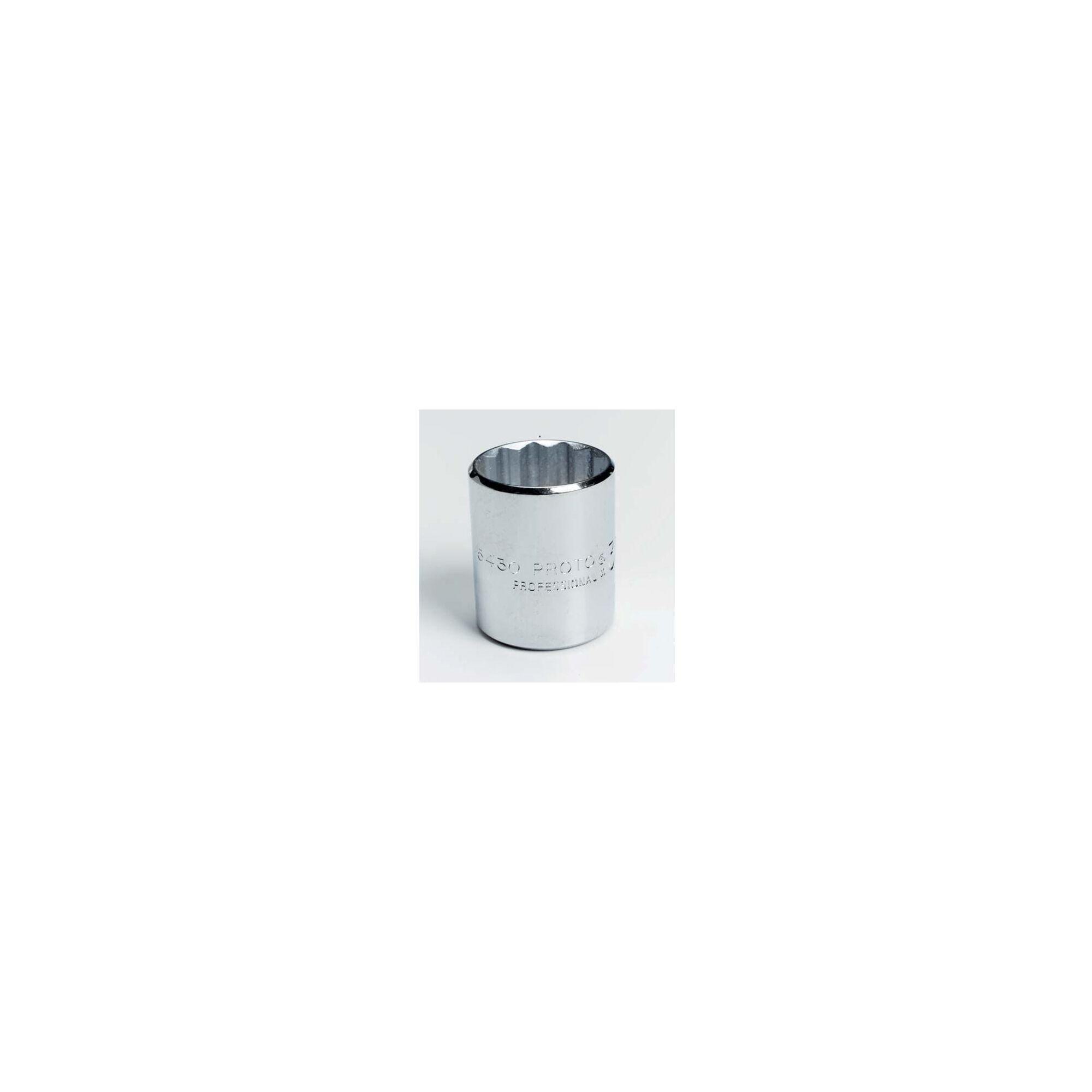

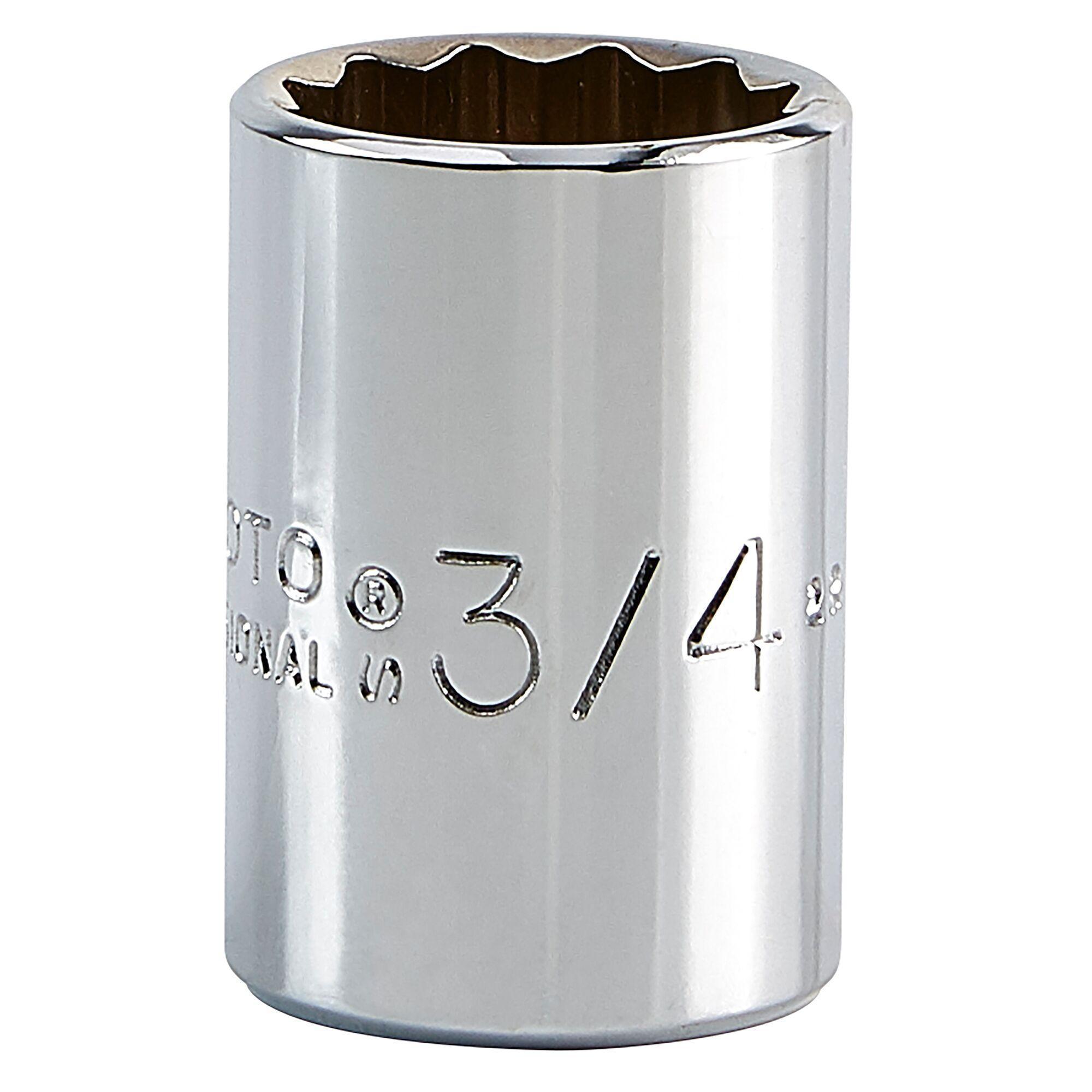

Proto® TorquePlus™ J5424 Standard Length Socket, Imperial, 1/2 in Square Drive, 3/4 in
Proto® TorquePlus™ J5424 Standard Length Socket, Imperial, 1/2 in Square Drive, 3/4 in
- Brand: Proto®
- Mfr# : J5424
- Item # : STP J5424
- UPC #: 662679180737
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ design allows more torque to be put on the fastener while reducing fastener and allows the user to more easily turn worn, rounded or rusted fasteners
DESCRIPTION
Proto® TorquePlus™ Socket, Standard Length, No Impact Rated, Measurement System: Imperial, Square Drive, 1/2 in Drive, 3/4 in Socket, 1-1/2 in Overall Length, 11/16 in Opening Depth, 1-1/64 in Drive End Width, 1-1/64 in Socket End Width, Ball Locking, 12 Points, 1-3/16 in Bolt Clearance Depth, Alloy Steel, Full Polished
SPECIFICATIONS
| Type | : Standard Length |
| Impact Rated | : No |
| Measurement System | : Imperial |
| Drive Type | : Square |
| Drive Size | : 1/2 in |
| Socket Size | : 3/4 in |
| Overall Length | : 1-1/2 in |
| Opening Depth | : 11/16 in |
| Drive End Width | : 1-1/64 in |
| Socket End Width | : 1-1/64 in |
| Locking Type | : Ball |
| Number of Points | : 12 |
| Bolt Clearance Depth | : 1-3/16 in |
| Material | : Alloy Steel |
| Finish | : Full Polished |
APPLICATION INFO
| Standard/Approvals | : ANSI B107.1|ASME B107.110-2012|AS954E S3.8.1|Federal Specification GGG-W-641E |
| Application | : For use on stubborn or damaged fasteners and also on fasteners made from soft materials |
| Country of Origin | : US |
