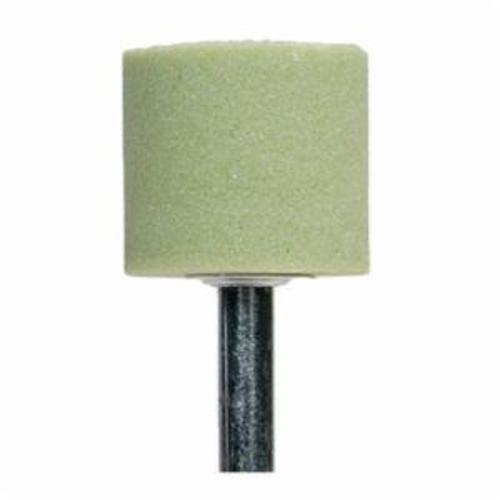

Norton® Quantum™ 61463677682 3NQ Mounted Point, A38 Point, 1 in Dia x 1 in L Head, 1/4 in Dia Shank
Norton® Quantum™ 61463677682 3NQ Mounted Point, A38 Point, 1 in Dia x 1 in L Head, 1/4 in Dia Shank
- Brand: Norton®
- Mfr# : 61463677682
- Item # : NOR 614636-77682
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- Quantum™ grain with unique, engineered ceramic grain and shape, specifically developed for high volume, high speed alloy grinding operations
- Minimal loading and heat build-up, provide up to 33% longer life and 37% better metal removal rates versus other ceramic points
- Versatile, optimized for all low, medium and high force vitrified applications
- Oil and gas 36 grit mounted points, specifically engineered to efficiently grind the carbide matrix material of oil field drill heads
- Best choice for high volume operations
DESCRIPTION
Norton® Quantum™ Mounted Point, Series: 3NQ, A38 Point Shape Code, 1 in Head Dia, 1 in Head Length, 1/4 in Shank Dia, 1-1/2 in Shank Length, 80 Grit, Medium Grade, Ceramic Alumina Abrasive, 34500 rpm Maximum, Vitrified Porous Bond, High Speed Alloy Abrading Application
SPECIFICATIONS
| Series | : 3NQ |
| Point Shape Code | : A38 |
| Head Diameter | : 1 in |
| Head Length | : 1 in |
| Shank Diameter | : 1/4 in |
| Shank Length | : 1-1/2 in |
| Grit | : 80 |
| Grade | : Medium |
| Abrasive Material | : Ceramic Alumina |
| Maximum Speed | : 34500 rpm |
| Bond Type | : Vitrified Porous |
| Abrading Application | : High Speed Alloy |
APPLICATION INFO
| Application | : Aerospace, Tool and Die, Construction, Metal Fabrication, Automotive, Cutlery, Mold Shops, Stainless Steel Equipment and Foundries |
| Country of Origin | : MX |
