Seco 02569288 Indexable Turning Tool Holder, ANSI Code: DDJNR-16-4D-M, DDJN Tool Holder, DN..43. Insert, Right Hand Cutting, 25.4 mm Square Shank, 93 deg Lead Angle, Negative Rake, 152.4 mm OAL
Seco 02569288 Indexable Turning Tool Holder, ANSI Code: DDJNR-16-4D-M, DDJN Tool Holder, DN..43. Insert, Right Hand Cutting, 25.4 mm Square Shank, 93 deg Lead Angle, Negative Rake, 152.4 mm OAL
Seco 02569288 Indexable Turning Tool Holder, ANSI Code: DDJNR-16-4D-M, DDJN Tool Holder, DN..43. Insert, Right Hand Cutting, 25.4 mm Square Shank, 93 deg Lead Angle, Negative Rake, 152.4 mm OAL
- Brand: Seco
- Mfr# : 02569288
- Item # : MCT 32307
- Min. Order Qty: :
- Qty. Interval: :
Catalog
DESCRIPTION
This wide offering of easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining. The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes and sizes, also allowing choice of several leading clamping methods.

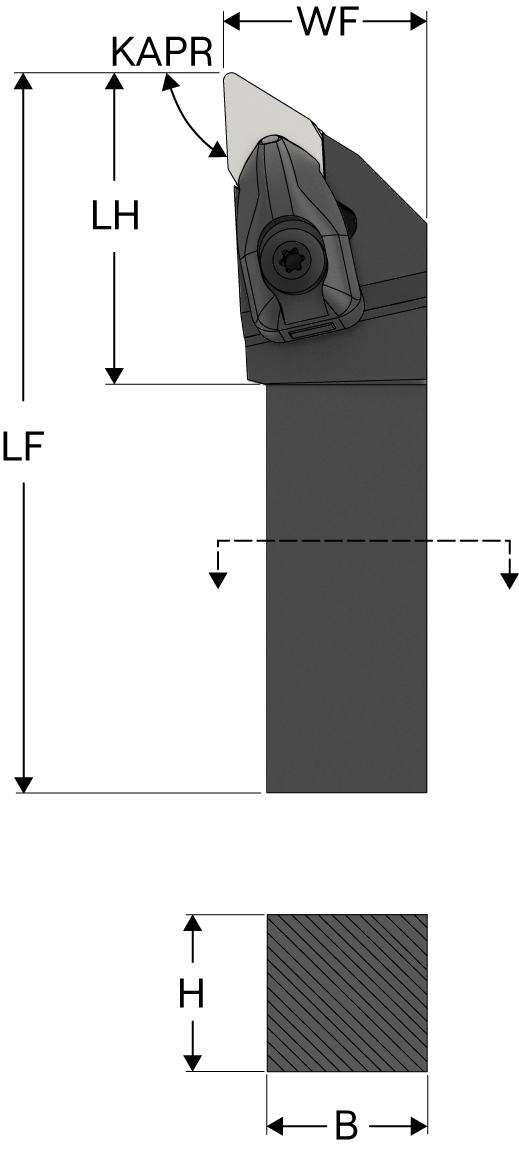

Seco Indexable Turning Tool Holder, DDJN Tool Holder, 152.4 mm Overall Length, Square Shank, 25.4 mm Shank, Insert Compatibility: DN..43., Right Hand Cutting, 3/8 in Inscribed Circle, 31.8 mm Back of Bar to Cutting Edge, 93 deg Lead Angle, 42 mm Head Length, ANSI Code: DDJNR-16-4D-M, ISO Code: DDJNR-16-4D-M, Negative Rake, Steel
SPECIFICATIONS
| Tool Holder Style | : DDJN |
| Overall Length | : 152.4 mm |
| Shank Type | : Square |
| Shank Size | : 25.4 mm |
| Insert Compatibility | : DN..43. |
| Cutting Direction | : Right Hand |
| Inscribed Circle | : 3/8 in |
| Back of Bar to Cutting Edge | : 31.8 mm |
| Lead Angle | : 93 deg |
| Head Length | : 42 mm |
| ANSI Code | : DDJNR-16-4D-M |
| ISO Code | : DDJNR-16-4D-M |
| Rake | : Negative |
| Material | : Steel |
APPLICATION INFO
| Country of Origin | : IN |
