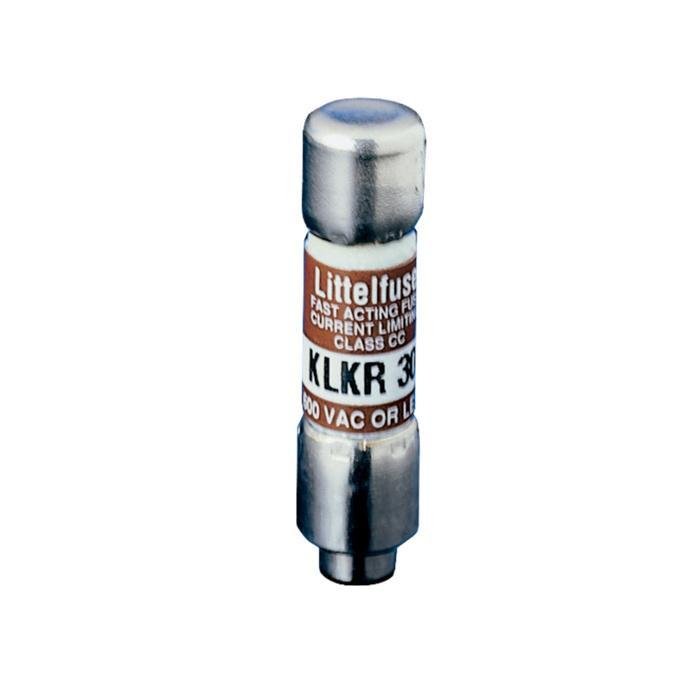

Littelfuse® POWR-GARD® KLKR.100 High Speed North American Style Fast Acting Fuse, 0.1 A, 600 V AC/300 V DC, 20/200 kA Interrupt, CC Class, Cartridge Body
Littelfuse® POWR-GARD® KLKR.100 High Speed North American Style Fast Acting Fuse, 0.1 A, 600 V AC/300 V DC, 20/200 kA Interrupt, CC Class, Cartridge Body
Littelfuse® POWR-GARD® KLKR.100 High Speed North American Style Fast Acting Fuse, 0.1 A, 600 V AC/300 V DC, 20/200 kA Interrupt, CC Class, Cartridge Body
- Brand: Littelfuse®
- Mfr# : KLKR.100
- Item # : FUS KLKR.100
- UPC #: 079458260113
- Min. Order Qty: :
- Qty. Interval: :
Technical Bulletin
FEATURES
- Rejection feature prevents use of fuses with lower interrupting ratings or voltage ratings when used with corresponding fuse holders
- Extremely current limiting reduces damage caused by heating and magnetic effects of short circuit currents
- Provide superior protection in a fraction of the space required by other fuse classes
- 200 kA at 600 VAC, 20 kA at 300 VDC interrupting rating
- Nickel plated bronze cap
- 12 s minimum and 4 min maximum at 200%, 1 hr maximum at 135%, 15 min minimum at 110%
DESCRIPTION
KLKR series Class CC fuses are fast acting fuses intended for general purpose branch circuit protection. Their compact size, fast acting overload response and their highly current limiting design make them ideal for use in OEM equipment and control panels because solid state devices such as SCRs and other electronic equipment generally require fast acting protection.
Littelfuse® POWR-GARD® Fast Acting Fuse, High Speed North American Style, Series: KLKR, Non-Indicating, Rejection, 0.1 A, 600 V AC/300 V DC, 20/200 kA Interrupt, Class: CC, 12 s Response, Ferrule Terminal, Holder Mounting, Cartridge Body, Melamine, 13/32 in Dia x 1-1/2 in L Body
SPECIFICATIONS
| Type | : High Speed North American Style |
| Series | : KLKR |
| Indicating/Non-Indicating | : Non-Indicating |
| Rejection/Non-Rejection | : Rejection |
| Amperage Rating | : 0.1 A |
| Voltage Rating | : 600 V AC/300 V DC |
| Interrupt Rating | : 20/200 kA |
| Class | : CC |
| Response Time | : 12 s |
| Terminal Type | : Ferrule |
| Mounting Type | : Holder |
| Body Type | : Cartridge |
| Material | : Melamine |
| Body Size | : 13/32 in Dia x 1-1/2 in L |
APPLICATION INFO
| Standard/Approvals | : UL 248-8|CSA Certified|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Application | : General Purpose Protections Equipment Requiring Fast Overload Protection Applications |
| Country of Origin | : MX |
