Cleveland® C60211 CEM-DE-2B Ball Nose Center Cutting Double End General Purpose Regular Length End Mill, 1/4 in Dia Cutter, 5/8 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3-1/2 in OAL, Uncoated
Cleveland® C60211 CEM-DE-2B Ball Nose Center Cutting Double End General Purpose Regular Length End Mill, 1/4 in Dia Cutter, 5/8 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3-1/2 in OAL, Uncoated
Cleveland® C60211 CEM-DE-2B Ball Nose Center Cutting Double End General Purpose Regular Length End Mill, 1/4 in Dia Cutter, 5/8 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3-1/2 in OAL, Uncoated
- Brand: Cleveland®
- Mfr# : C60211
- Item # : GRE C60211
- UPC #: 697334602118
- Min. Order Qty: :
- Qty. Interval: :
SDS
FEATURES
- Bright finish adds lubricity and is ideal for drilling in non-ferrous materials like aluminum
DESCRIPTION
The CLEVELAND CEM-DE-2B is a solid carbide end mill featuring a center-cutting tip, bright finish, 2-flute design, and square end, delivering efficient machining in steel, cast iron, aluminum, and other non-ferrous materials.

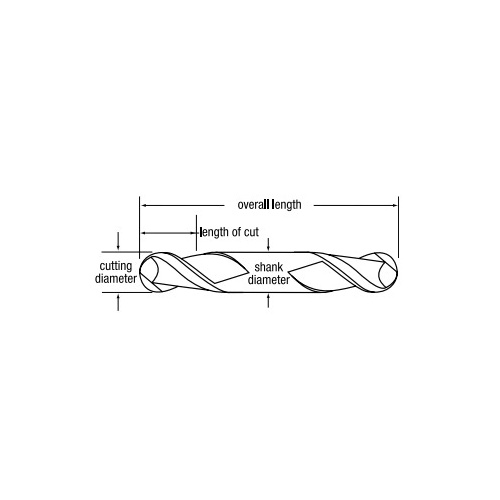

Cleveland® End Mill, Ball Nose Center Cutting Double End General Purpose Regular Length, Series: CEM-DE-2B, 1/4 in Diameter Cutter, 3-1/2 in Overall Length, 5/8 in Length of Cut, 2 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 35 deg Helix Angle, Straight/Weldon Flat Shank, Solid Carbide, Uncoated
SPECIFICATIONS
| Type | : Ball Nose Center Cutting Double End General Purpose Regular Length |
| Series | : CEM-DE-2B |
| Cutter Diameter | : 1/4 in |
| Overall Length | : 3-1/2 in |
| Length of Cut | : 5/8 in |
| Number of Flutes | : 2 |
| Flute Type | : Spiral |
| Shank Diameter | : 3/8 in |
| Cutting Direction | : Right Hand |
| Helix Angle | : 35 deg |
| Shank Type | : Straight/Weldon Flat |
| Material | : Solid Carbide |
| Finish | : Uncoated |
APPLICATION INFO
| Application | : Plunging, Slotting with Radius and Profile Cutting |
| Country of Origin | : US |
