Cleveland® C60211 CEM-DE-2B Ball Nose Center Cutting Double End General Purpose Regular Length End Mill, 1/4 in Dia Cutter, 5/8 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3-1/2 in OAL, Bright

Cleveland® C60211 GRE C60211

Cleveland® C60211 CEM-DE-2B Ball Nose Center Cutting Double End General Purpose Regular Length End Mill, 1/4 in Dia Cutter, 5/8 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3-1/2 in OAL, Bright

Cleveland® C60211 CEM-DE-2B Ball Nose Center Cutting Double End General Purpose Regular Length End Mill, 1/4 in Dia Cutter, 5/8 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3-1/2 in OAL, Bright

  • Brand: Cleveland®
  • Mfr# : C60211
  • Item # : GRE C60211
  • UPC #: 697334602118
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List
  • pdf Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cleveland_C60001_Specification_Sheet.pdf

FEATURES

  • 10% Cobalt submicron grain carbide substrate
  • 30 deg right hand spiral, right hand cut helix designed for maximum chip clearance
  • Use in general milling applications in medium to low carbon steels, cast iron, non-ferrous light metals and plastics
  • 2-Flute end mills are generally used for plunging, slotting and heavy peripheral cuts
  • Double end mills economically increase productivity
  • -0.002 in cutting diameter tolerance
  • -0.0005 in (h6) shank diameter tolerance
  • Applicable on steel, cast iron and non-ferrous materials

DESCRIPTION

Cleveland® End Mill, Ball Nose Center Cutting Double End General Purpose Regular Length, Series: CEM-DE-2B, 1/4 in Diameter Cutter, 3-1/2 in Overall Length, 5/8 in Length of Cut, 2 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 35 deg Helix Angle, Straight/Weldon Flat Shank, Solid Carbide, Bright

SPECIFICATIONS

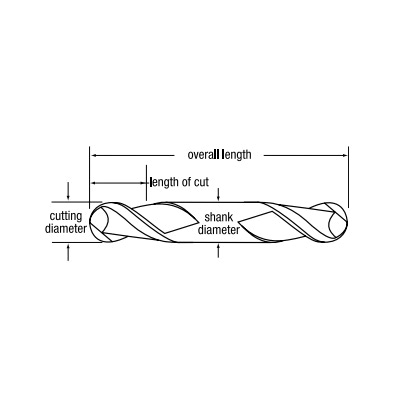

Type      :    Ball Nose Center Cutting Double End General Purpose Regular Length
Series      :    CEM-DE-2B
Cutter Diameter      :    1/4 in
Overall Length      :    3-1/2 in
Length of Cut      :    5/8 in
Number of Flutes      :    2
Flute Type      :    Spiral
Shank Diameter      :    3/8 in
Cutting Direction      :    Right Hand
Helix Angle      :    35 deg
Shank Type      :    Straight/Weldon Flat
Material      :    Solid Carbide
Finish      :    Bright

APPLICATION INFO

Application      :    Plunging, Slotting with Radius and Profile Cutting
