DeWALT® 7404SD1 SD1 Expansion Wedge Anchor, 1/4 in Dia, 3-1/4 in OAL, 2-1/4 in L Thread, Carbon Steel, Zinc Plated
DeWALT® 7404SD1 SD1 Expansion Wedge Anchor, 1/4 in Dia, 3-1/4 in OAL, 2-1/4 in L Thread, Carbon Steel, Zinc Plated
DeWALT® 7404SD1 SD1 Expansion Wedge Anchor, 1/4 in Dia, 3-1/4 in OAL, 2-1/4 in L Thread, Carbon Steel, Zinc Plated
- Brand: DeWalt®
- Mfr# : 7404SD1
- Item # : PWR 7404SD1
- UPC #: 075352775913
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
FEATURES
- Consistent performance in high and low strength concrete
- Length ID code and identifying marking stamped on head of each Anchor
- Ultimate load capacity: 1320 lb tensile strength when embedded in 2500 psi, 1435 lb tensile strength when embedded in 3000 psi and 1660 lb tensile strength when embedded in 4000 psi compressive strength concrete
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
- Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
DESCRIPTION

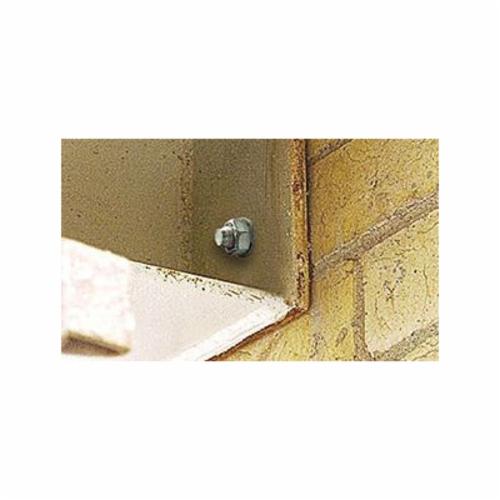

The Power-Stud anchor is a fully threaded, torque-controlled, wedge expansion anchor. It is available in threaded, rod hanger and tie-wire versions suitable for applications in solid concrete and grout filled concrete masonry. The carbon steel threaded version is suitable for a variety of applications. The drill bit diameter necessary for proper installation is the same as the anchor diameter.
DeWALT®, 7404SD1, Wedge Anchor, Expansion, Series: SD1, 1/4 in Diameter, 3-1/4 in Overall Length, 2-1/4 in Thread Length, Carbon Steel, Zinc Plated, 1-1/8 in Minimum Embedment Depth, 1/4 in Drill, 1/4-20 Thread, Hex Head, UNC Thread, 1-7/8 in Maximum Work Thickness, 1255 lb Shear Strength, 1435 lb Tensile Strength
SPECIFICATIONS
| Type | : Expansion |
| Series | : SD1 |
| Diameter | : 1/4 in |
| Overall Length | : 3-1/4 in |
| Thread Length | : 2-1/4 in |
| Material | : Carbon Steel |
| Finish | : Zinc Plated |
| Minimum Embedment Depth | : 1-1/8 in |
| Drill Size | : 1/4 in |
| Thread Size | : 1/4-20 |
| Head Type | : Hex |
| Thread Type | : UNC |
| Maximum Work Thickness | : 1-7/8 in |
| Shear Strength | : 1255 lb |
| Tensile Strength | : 1435 lb |
APPLICATION INFO
| Standard/Approvals | : ICC-ES AC01, ESR-2818/2966|UL Listed|2015 IBC/IRC|ACI 318-14 Chapter 17|ACI 318-11/08 Appendix D|ACI 355.2|ASTM E488|Evaluated and Qualified by an Accredited Independent Testing Laboratory|FM Approved|ICC-ES AC193|UL EX1289 |
| Application | : Structural Connections, Interior Applications, Low Level Corrosion Environment, Tension Zone Applications, Cable Trays And Strut, Pipe Supports, Fire Sprinklers, Seismic and Wind Loading |
| Country of Origin | : US |
