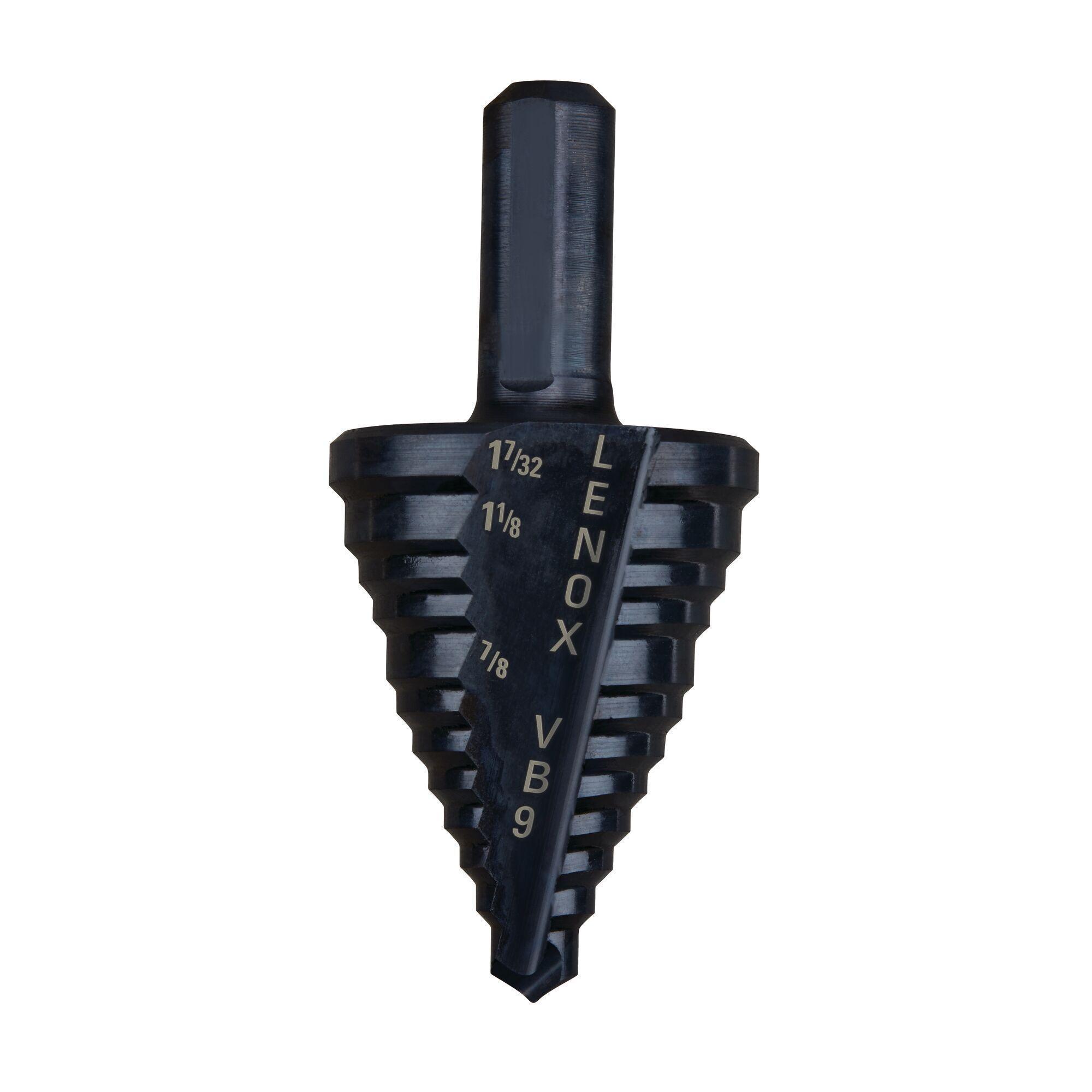

Lenox® Vari-Bit® 30909VB9 Step Drill Bit, 7/8 in Dia Min Hole, 1-7/32 in Dia Max Hole, HSS, 3 Hole Sizes, 3/8 in Shank
Lenox® Vari-Bit® 30909VB9 Step Drill Bit, 7/8 in Dia Min Hole, 1-7/32 in Dia Max Hole, HSS, 3 Hole Sizes, 3/8 in Shank
Lenox® Vari-Bit® 30909VB9 Step Drill Bit, 7/8 in Dia Min Hole, 1-7/32 in Dia Max Hole, HSS, 3 Hole Sizes, 3/8 in Shank
- Brand: Lenox®
- Mfr# : 30909VB9
- Item # : LNX VB9
- UPC #: 082472309096
- Min. Order Qty: :
- Qty. Interval: :
FEATURES

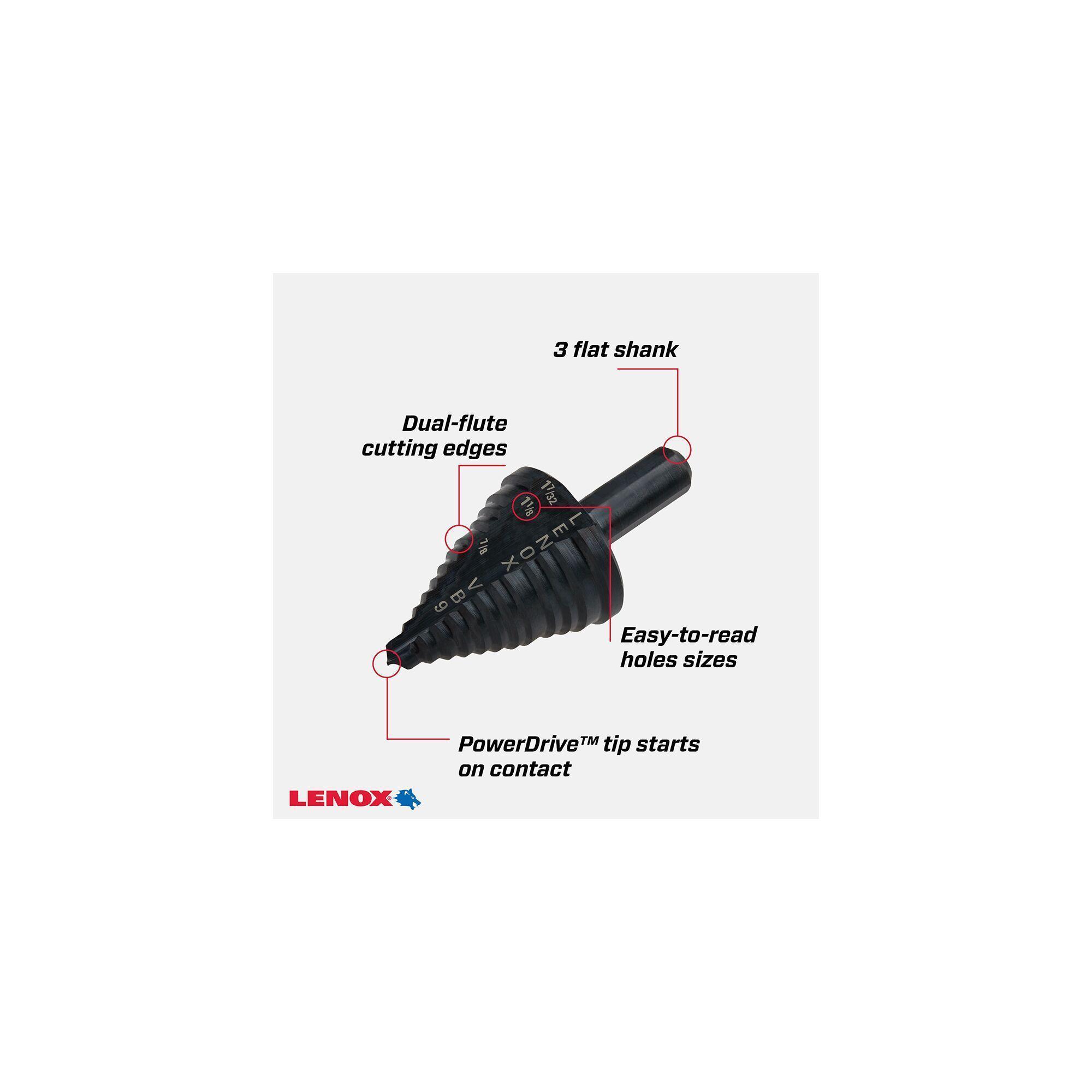

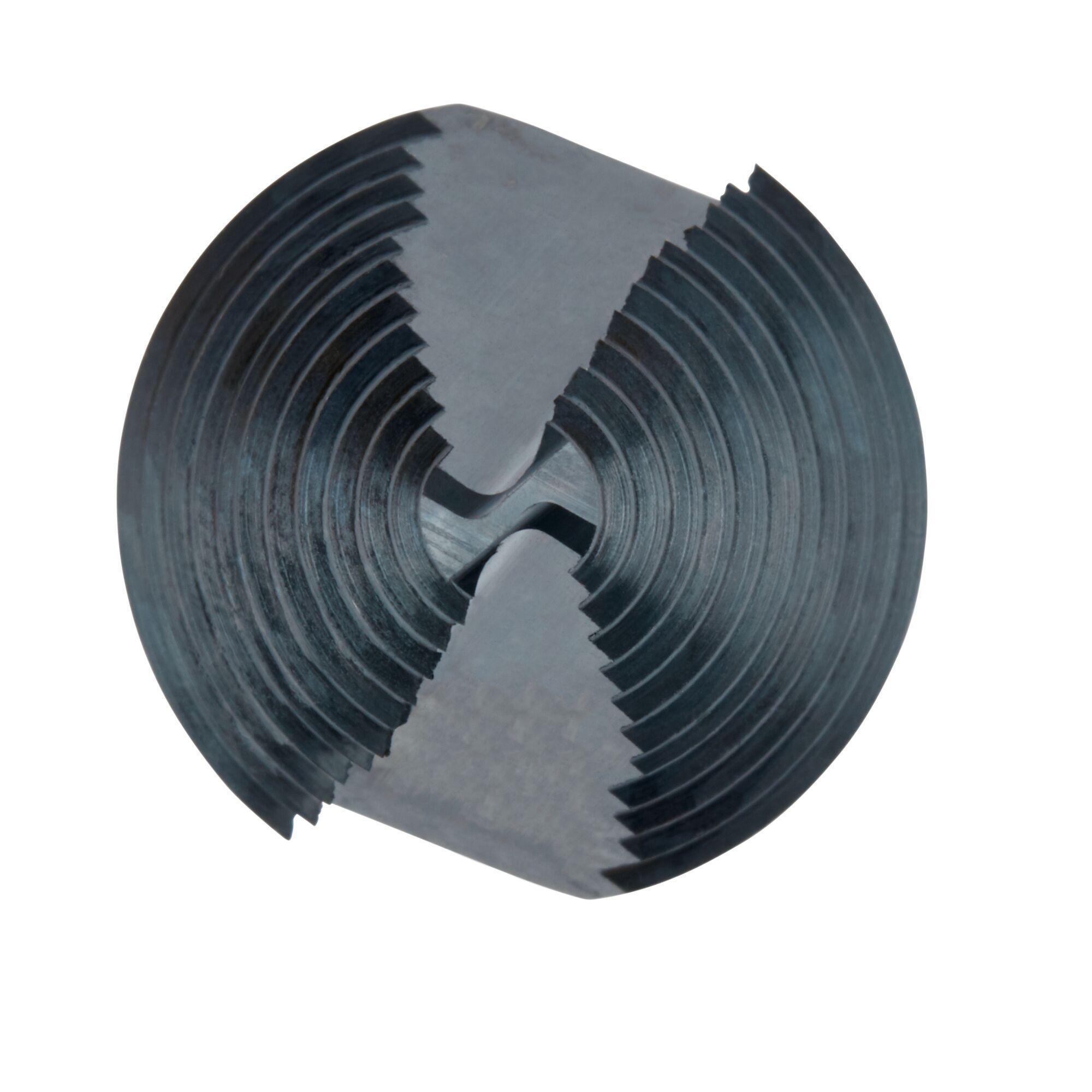

- Accurate, patented two flute design with burr-free holes, cuts fast, clean and round holes
- Split point design for faster penetration and less walking
- Steam oxide coating adds durability
- Enhanced flute design removes chips rapidly
- Use of LENOX® BANDSAW PROTOOL Lube® recommended to extend tool life
DESCRIPTION
Lenox® Vari-Bit® Step Drill Bit, Imperial, 7/8 in Diameter Minimum Hole, 1-7/32 in Diameter Maximum Hole, 3 in Overall Length, 2 in Cutting Depth, 3 Hole, 7/8 in, 1-1/8 in, 1-7/32 in, 3/8 in Shank, Flat/Round Shank, Split Point, HSS Cutting Edge, HSS, Oxide Treated, Applicable Materials: Carbon Metal, Ferrous Metal and Stainless Steel
SPECIFICATIONS
| Drill Diameter Measurement System | : Imperial |
| Minimum Hole Diameter | : 7/8 in |
| Maximum Hole Diameter | : 1-7/32 in |
| Overall Length | : 3 in |
| Cutting Depth | : 2 in |
| Number of Hole Sizes | : 3 |
| Hole Sizes Cut | : 7/8 in, 1-1/8 in, 1-7/32 in |
| Shank Size | : 3/8 in |
| Shank Type | : Flat/Round |
| Point Type | : Split |
| Cutting Edge Material | : HSS |
| Material | : HSS |
| Finish | : Oxide Treated |
| Applicable Materials | : Carbon Metal, Ferrous Metal and Stainless Steel |
APPLICATION INFO
| Standard/Approvals | : ARRA Compliant|Buy American Act Compliant |
| Country of Origin | : US |
