The Turning insert TNMG220408-M5 TP0501 features a negative type design with a clearance angle major of 0 degrees. It is made from Carbide CVD grade TP0501. The insert has six cutting edges and a corner radius of 0.8 mm. With a cutting edge effective length of 20 mm, the insert is neutral in hand orientation. It is primarily designed for steel and is partially applicable for cast irons. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

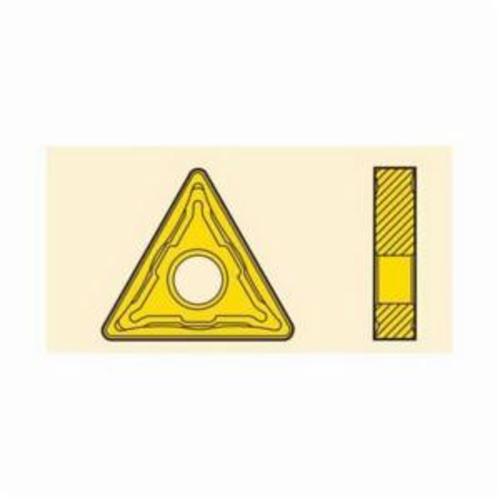

Seco Turning Insert, TNMG Insert, 220408 Insert, Triangular Shape, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 22 mm Length, 22 Seat, Negative/Positive Rake, M5 Chipbreaker, 0.8 mm Corner Radius, 5.15 mm Diameter Hole, Manufacturer's Grade: TP0501, ANSI Code: TNMG432-M5 TP0501, ISO Code: TNMG220408-M5 TP0501, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel
