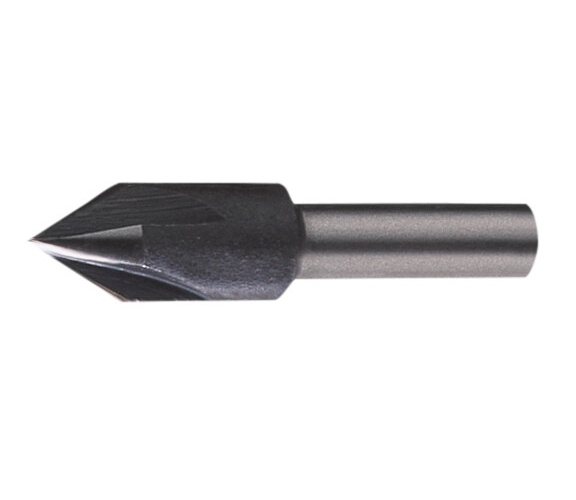

Cleveland® C46223 610 Single End Center Reamer/Countersink, 3/4 in Dia Body, 1/2 in Dia Shank, 4 Flutes, 82 deg Included, HSS
Cleveland® C46223 610 Single End Center Reamer/Countersink, 3/4 in Dia Body, 1/2 in Dia Shank, 4 Flutes, 82 deg Included, HSS
Cleveland® C46223 610 Single End Center Reamer/Countersink, 3/4 in Dia Body, 1/2 in Dia Shank, 4 Flutes, 82 deg Included, HSS
- Brand: Cleveland®
- Mfr# : C46223
- Item # : GRE C46223
- UPC #: 697334462231
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- Used to countersink flat head screws and rivets
- Use single flute countersinks for smaller holes, multi-flute tools countersink much larger holes
- Run countersinks at 50 to 66% of recommended drill speeds
- The pre drilled hole for countersinking should not be less than 10% of the countersink diameter
DESCRIPTION

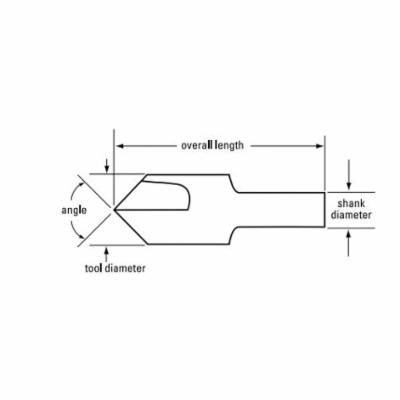

Cleveland® Center Reamer/Countersink, Single End, Series: 610, 3/4 in Diameter Body, 2-5/8 in Overall Length, Straight Shank, 1/2 in Shank Diameter, 4 Flutes, Right Hand Cutting Direction, 82 deg Included Angle, 41 deg Centerline Angle, HSS, Steam Oxide
SPECIFICATIONS
| Type | : Single End |
| Series | : 610 |
| Body Diameter | : 3/4 in |
| Overall Length | : 2-5/8 in |
| Shank Type | : Straight |
| Shank Diameter | : 1/2 in |
| Number of Flutes | : 4 |
| Cutting Direction | : Right Hand |
| Included Angle | : 82 deg |
| Centerline Angle | : 41 deg |
| Material | : HSS |
| Finish | : Steam Oxide |
APPLICATION INFO
| Standard/Approvals | : ANSI Specified |
| Application | : Used to countersink flat head screws and rivets |
| Country of Origin | : CH |
