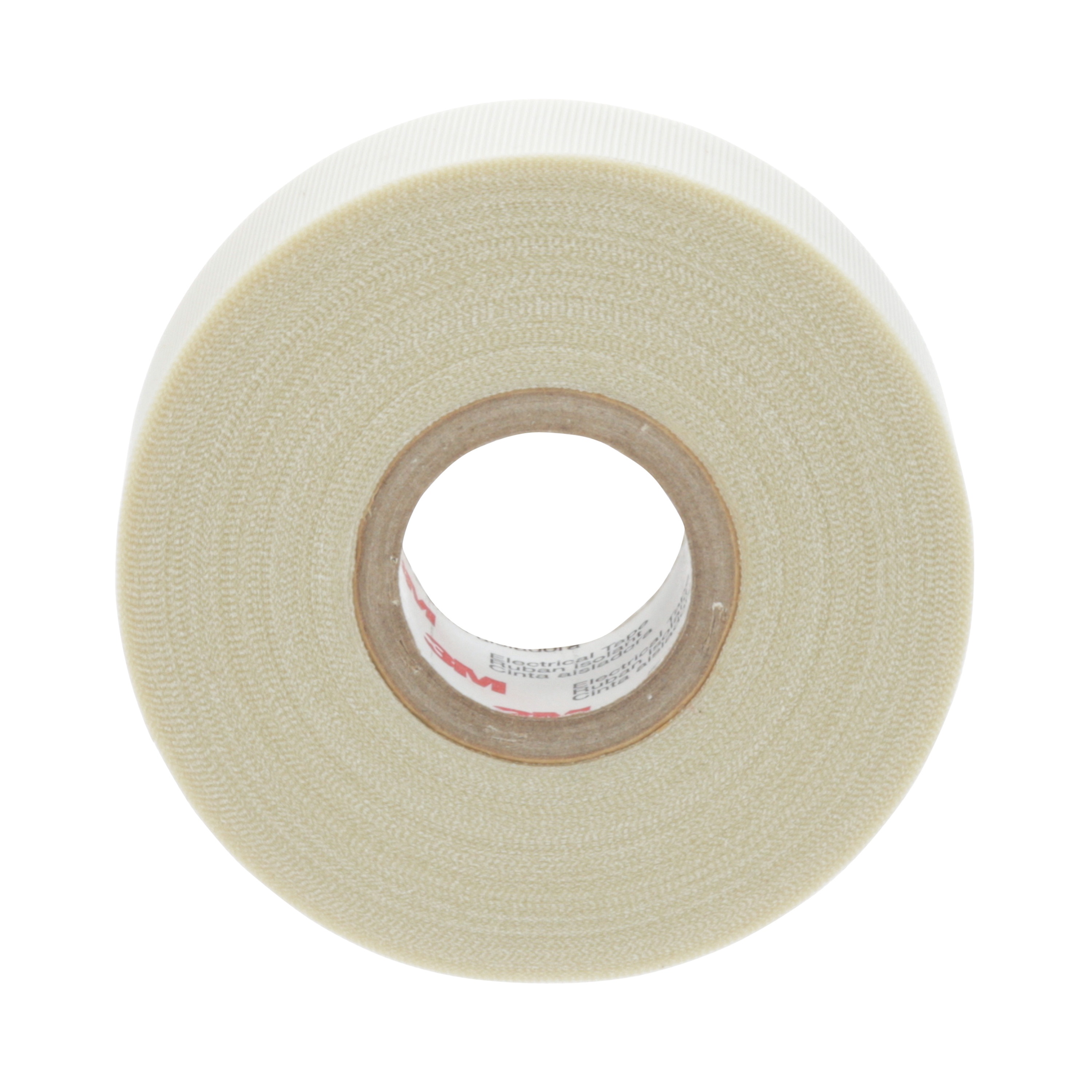

Scotch® 7000005818 69 Series Premium-Grade Cloth Tape, 66 ft L x 3/4 in W, 7 mil THK, Silicon Thermoset Adhesive, Glass Cloth Backing, White
Scotch® 7000005818 69 Series Premium-Grade Cloth Tape, 66 ft L x 3/4 in W, 7 mil THK, Silicon Thermoset Adhesive, Glass Cloth Backing, White
Scotch® 7000005818 69 Series Premium-Grade Cloth Tape, 66 ft L x 3/4 in W, 7 mil THK, Silicon Thermoset Adhesive, Glass Cloth Backing, White
- Brand: Scotch®
- Mfr# : 7000005818
- Item # : MMM 69-3/4X66
- UPC #: 054007099109
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Thermosetting, silicon adhesive provides an increased bond at high temperatures
- Glass cloth backing optimally resists resist shrinking and burning
- Provides high mechanical strength and excellent performance by withstanding high temperatures
- PRESSURE SENSITIVE ADHESIVE: Non–corrosive, solvent resistant, thermosetting silicone adhesive
- RELIABLE AND RESISTANT: Resists rotting and shrinking after extended use in a variety of environments
- USE WITH SCOTCH 77 ARC AND FIRE PROOFING TAPE: Holds in place on cables and can be written on as marking tape
DESCRIPTION
Scotch® glass cloth electrical tape 69 features a pressure sensitive, high temperature, thermosetting, silicone adhesive that offers excellent bonding once adhered. This conformable tape has a glass cloth backing that resists rotting and shrinking while providing excellent stability.
Scotch®, 7000005818, Cloth Tape, Premium-Grade, Series: 69 Series, 66 ft Length, 3/4 in Width, 7 mil Thickness, White, Silicon Thermoset Adhesive, Glass Cloth Backing, 40 in-oz Adhesion Strength, 180 in-lb Tensile Strength, 392 deg F Maximum Operating, 32 deg C Minimum Operating, Elongation at Break: 0.05, Specifications Met: ASTM D1000
SPECIFICATIONS
| Type | : Premium-Grade |
| Series | : 69 Series |
| Length | : 66 ft |
| Width | : 3/4 in |
| Thickness | : 7 mil |
| Color | : White |
| Adhesive Material | : Silicon Thermoset |
| Backing Material | : Glass Cloth |
| Adhesion Strength | : 40 in-oz |
| Tensile Strength | : 180 in-lb |
| Maximum Operating Temperature | : 392 deg F |
| Minimum Operating Temperature | : 32 deg C |
| Elongation at Break | : 0.05 |
| Specifications Met | : ASTM D1000 |
APPLICATION INFO
| Standard/Approvals | : UL Listed|CSA Certified|Military Specification MIL-I-19166C |
| Application | : For use as a coil cover, anchor, banding and core, layer and crossover insulation |
| Country of Origin | : US |
